Part No. | A | B | C | D | E | Thread size | Thread length (mm) | Max load (kg) | Download CAD | Stocked status | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|
15667S | 60 | 26 | 18 | 40 | 9 | M12 | 100 | 750 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15668Z | 60 | 26 | 18 | 40 | 9 | M12 | 150 | 750 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15669V | 80 | 26 | 18 | 55 | 9 | M12 | 150 | 750 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15670R | 80 | 26 | 18 | 55 | 9 | M16 | 100 | 1400 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15671Y | 100 | 26 | 18 | 74 | 9 | M16 | 100 | 1400 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15672U | 100 | 29 | 18 | 74 | 9 | M20 | 150 | 2400 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15673Q | 120 | 29 | 19 | 94 | 9 | M20 | 150 | 2400 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15674X | 120 | 29 | 19 | 94 | 9 | M24 | 100 | 3500 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
Bolt-down Die Cast Zinc Levelling Foot
Description

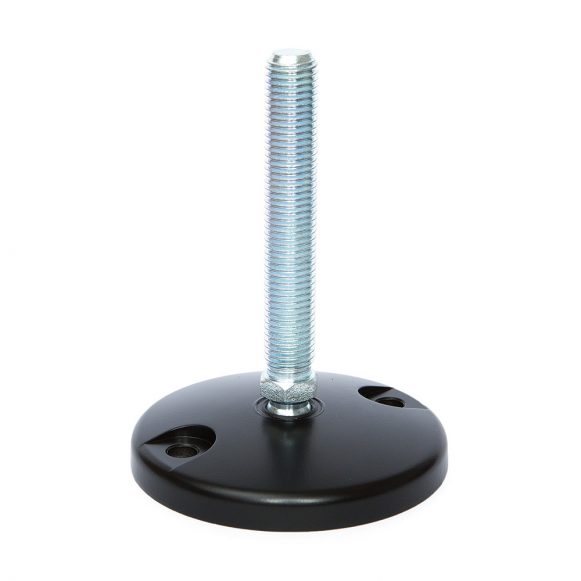

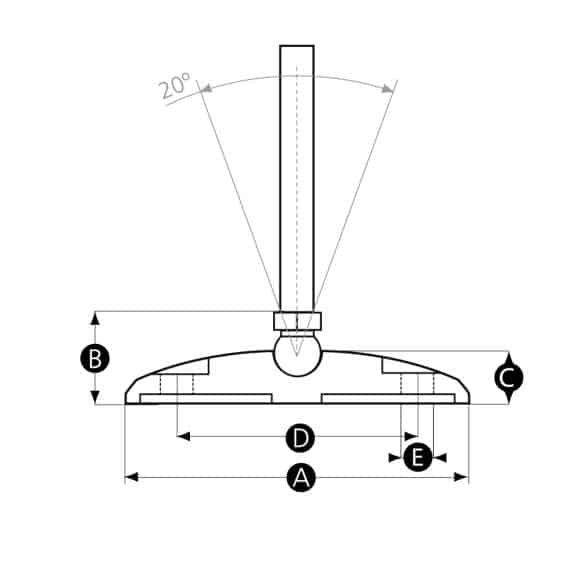

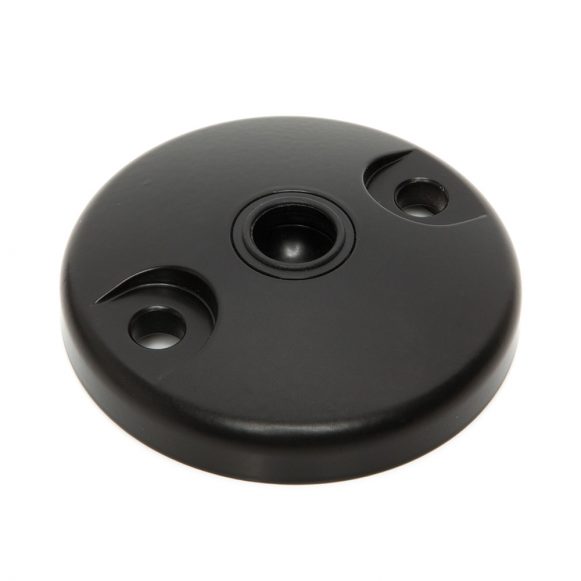

The Model 02BD LF comprises a heavy duty die cast zinc base with bolt-down holes, zinc plated steel threaded rod and industry standard 15mm ball and socket providing 20° of articulation. Integrated bolt-down holes enable the levelling mount to be securely fixed to the floor.
The zinc plated rod offers sufficient corrosion resistance for most indoor applications. Stainless steel threaded rods are available on request and recommended when a foot assembly is used outdoors, regularly exposed to water, or placed in hygiene sensitive environments such as catering or medical applications. Alternatively see our Model 03BD LF for a completely stainless solution.
Our die cast zinc bases deliver a substantial increase in load capacity over similarly sized plastic bases – up to 3500kg per foot. The Model 02BD LF is the ideal levelling mount for heavy machinery and challenging working environments.
Many more base and rod size combinations are available on request and any base can be combined with any rod. Add a Model 01 ASP Anti Slip Plate to provide extra grip, resistance to oil and anti-vibration.
MOQs for this product are dependent on current stock levels, please contact us for confirmation.
Material:
Die cast zinc
Rod Material:
Zinc plated steel as standard. Stainless steel available on request (MOQs apply).
Standard Colour:
Black
