Model 01BD LF

Bolt-down Nylon Adjustable Levelling Foot

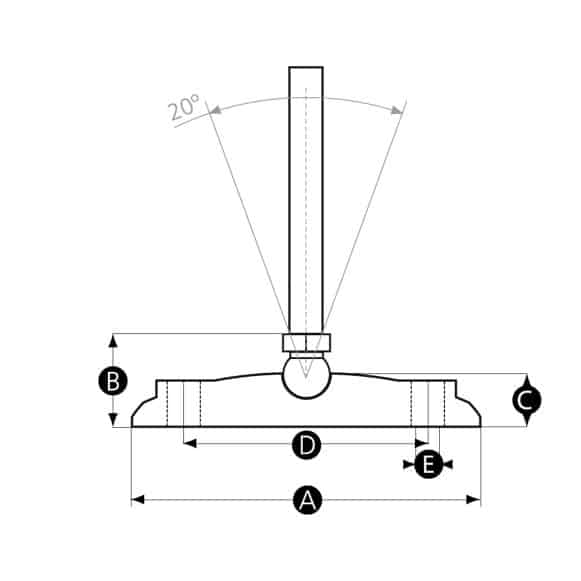

bolt down plastic levelling foot with threaded rod - drawing

Description

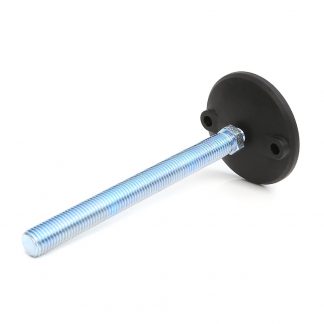

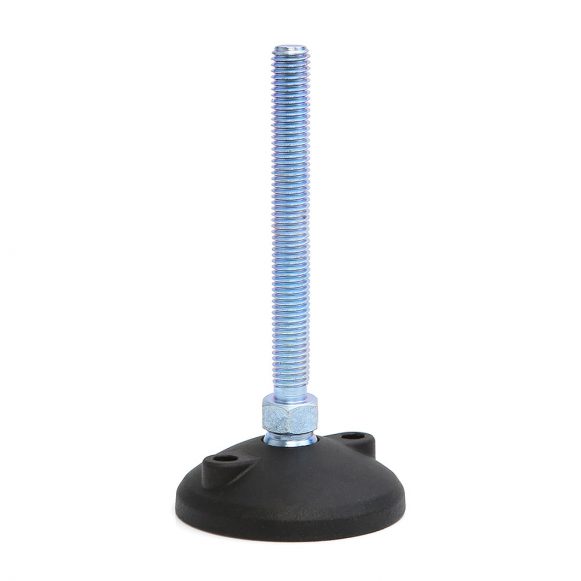

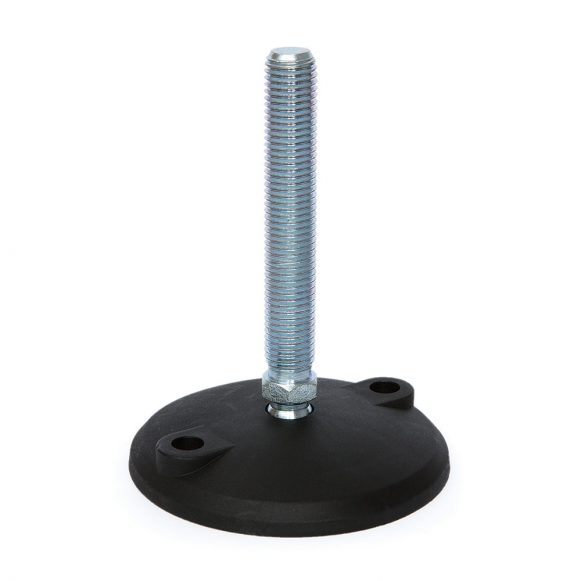

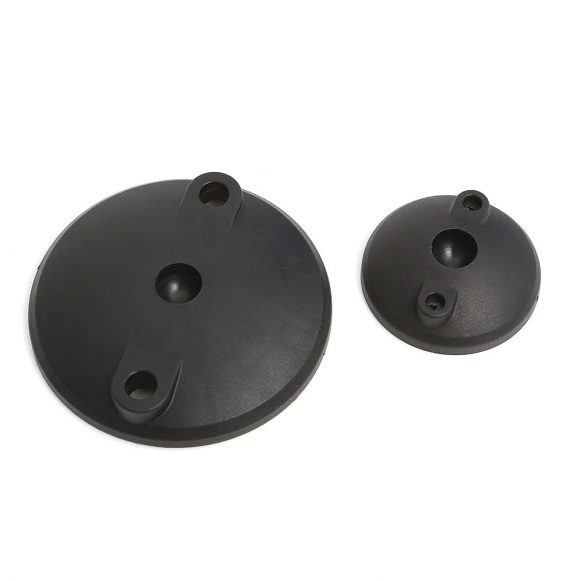

The Model 01BD LF comprises a glass-reinforced nylon base with bolt-down holes and a zinc plated steel threaded rod. Levelling adjustment is achieved by an integrated hex nut and industry standard 15mm ball and socket with 20° of articulation. Integrated bolt-down holes enable the levelling mount to be securely fixed to the floor.

The glass reinforced plastic base is tough and lightweight while the zinc plated rod offers sufficient corrosion resistance for most indoor applications. Stainless steel threaded rods are available on request and recommended when a foot assembly is used outdoors, regularly exposed to water, or placed in hygiene sensitive environments such as catering or medical applications. Alternatively see our Model 03 LF for a completely stainless solution.

We offer a wide range of foot and rod combinations to cover most applications, from lightweight equipment to heavyweight machinery. Any base can be combined with any rod and many more base and rod size combinations are available on request. Add a Model 01 ASP Anti Slip Plate to provide extra grip and anti-vibration.

MOQs for this product are dependent on current stock levels, please contact us for confirmation.

Material:

Glass reinforced nylon

Rod Material:

Zinc plated steel as standard. Stainless steel available on request (MOQs apply).

Standard Colour:

Black. Other RAL colours available (MOQs apply).

Download datasheet

This product complies with:

RoHS REACH Conflict Minerals California Prop 65

Variations
Frequently asked questions

Part No.	A	B	C	D	E	Thread size	Thread length (mm)	Max load (kg)	Download CAD	Stocked status	M.O.Q.	Typical lead time	Price & availability
12771P	60	29	18	40	6	M10	70	470	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & delivery
12772W	60	29	18	40	6	M10	125	470	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & delivery
12770T	60	29	18	40	6	M8	80	350	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & delivery
12419P	80	29	18	54	9	M12	100	750	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & delivery
12420W	80	29	18	54	9	M12	150	750	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & delivery
12773S	80	29	18	54	9	M16	100	900	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & delivery
12421S	80	29	18	54	9	M16	150	900	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & delivery
12775V	100	29	18	74	9	M16	100	900	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & delivery
