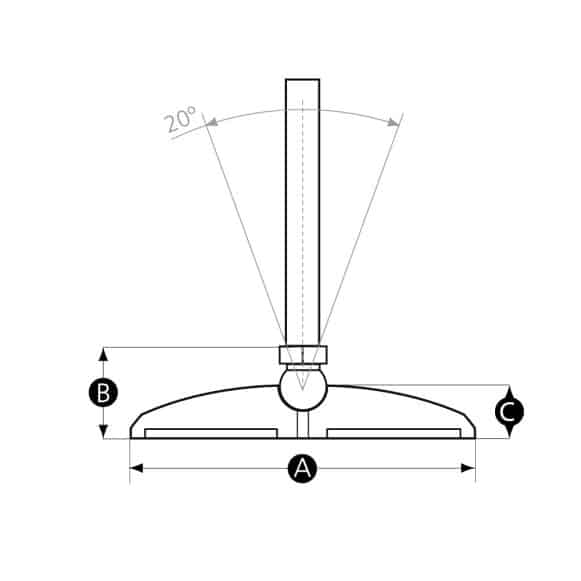

Part No. | A | B | C | Thread size | Thread length (mm) | Max load (kg) | Download CAD | Stocked status | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|
15654P | 30 | 26 | 18 | M8 | 45 | 350 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15653T | 30 | 26 | 18 | M10 | 45 | 470 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15655W | 40 | 26 | 18 | M8 | 45 | 350 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15656S | 40 | 26 | 18 | M10 | 45 | 470 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15657Z | 50 | 26 | 18 | M10 | 90 | 470 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
8866P | 50 | 29 | 18 | M12 | 100 | 470 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15658V | 50 | 26 | 18 | M12 | 150 | 750 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15659R | 60 | 26 | 18 | M12 | 100 | 750 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15660Y | 60 | 26 | 18 | M12 | 150 | 750 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15661U | 80 | 26 | 19 | M12 | 150 | 750 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15662Q | 80 | 26 | 19 | M16 | 100 | 1400 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15663X | 100 | 26 | 19 | M16 | 100 | 1400 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
145664T | 100 | 29 | 19 | M20 | 150 | 2400 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15665P | 120 | 29 | 19 | M20 | 150 | 2400 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |
15666W | 120 | 29 | 19 | M24 | 100 | 3500 | CAD | Made to order | Typical lead time is 4 weeks | Confirm price & delivery |

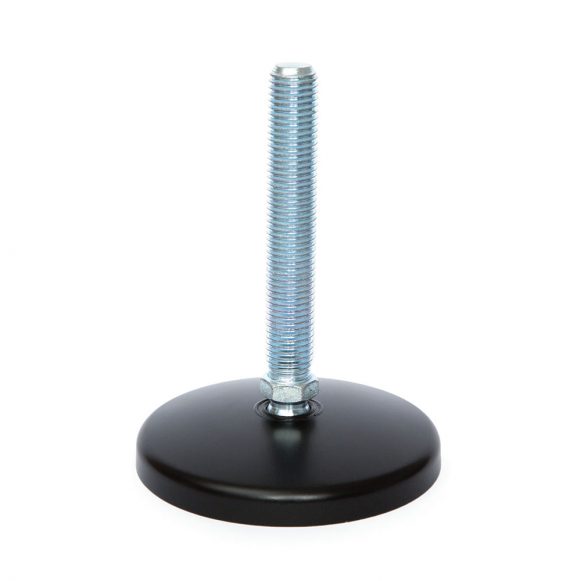

Heavy Duty Levelling Foot
Description
The Model 02 LF heavy duty levelling foot comprises a die cast zinc base, zinc plated steel threaded rod and industry-standard 15mm ball and socket providing 20° of articulation. The zinc plated rod offers sufficient corrosion resistance for most indoor applications. Stainless steel threaded rods are available on request, or see our Model 03 LF for a completely stainless alternative.

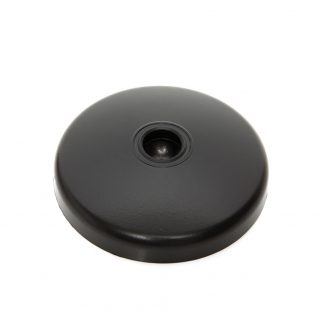

Our die cast zinc bases deliver a substantial increase in durability and load capacity over similarly sized plastic bases – up to 3500kg per foot. The Model 02 LF is the ideal levelling mount for heavy machinery and challenging working environments.
Many more base and rod size combinations are available on request and any base can be combined with any rod. Add a Model 01 ASP Anti Slip Plate to provide extra grip, resistance to oil and anti-vibration.
MOQs for this product are dependant on current stock levels, please contact us for confirmation.
Material:
Die cast zinc
Rod Material:
Zinc plated steel as standard. Stainless steel available on request (MOQs apply).
Standard Colour:
Black
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
