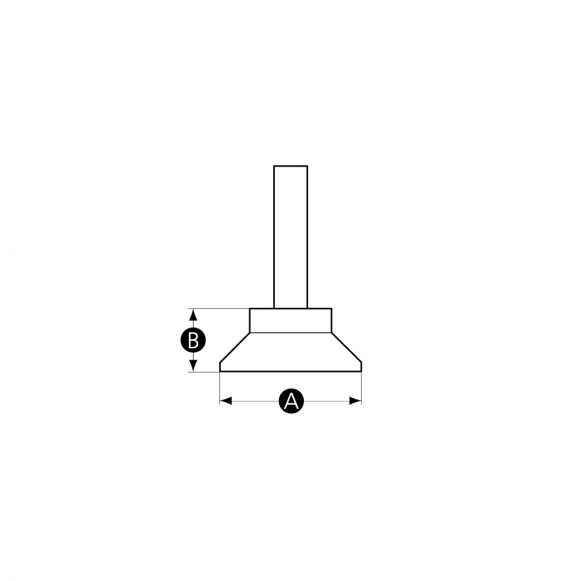

Part No. | A | B | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|
15145Q | 25 | 14 | M8 | 15 | CAD | Stocked | Minimum order is 100 pieces | Typical lead time is 2 days | Confirm price & delivery |
15146X | 25 | 14 | M8 | 24 | CAD | Stocked | Minimum order is 100 pieces | Typical lead time is 2 days | Confirm price & delivery |
15148P | 38 | 16 | M8 | 24 | CAD | Stocked | Minimum order is 100 pieces | Typical lead time is 2 days | Confirm price & delivery |
15149W | 38 | 16 | M8 | 38 | CAD | Stocked | Minimum order is 100 pieces | Typical lead time is 2 days | Confirm price & delivery |

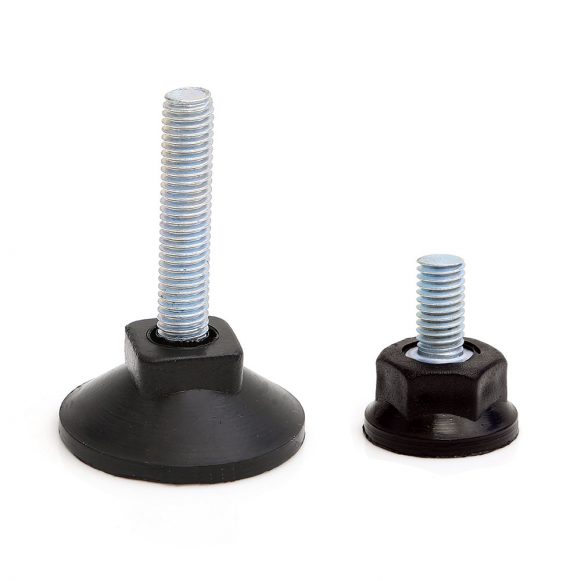

Mini Adjustable Levelling Foot
Description
The Model 04 LF is a rigid, non-articulating lightweight levelling foot. It features a strong polypropylene base and zinc plated steel threaded rod.
Rotate the square or hexagonal base by hand or by using a spanner to adjust the height and level the item on an uneven surface.
These levelling feet are typically used for office furniture, vending machines, bench top equipment (such as weighing scales), computer racks, and portable stands & displays.
See also our Model 05 LF Mini Levelling Foot which has similar characteristics.
Material
Polypropylene
Standard Colour
Black
Finish
Matt
Thread Material
Zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
