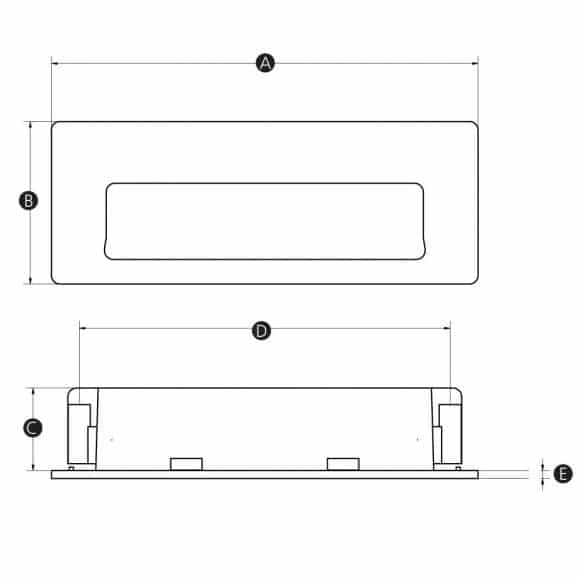

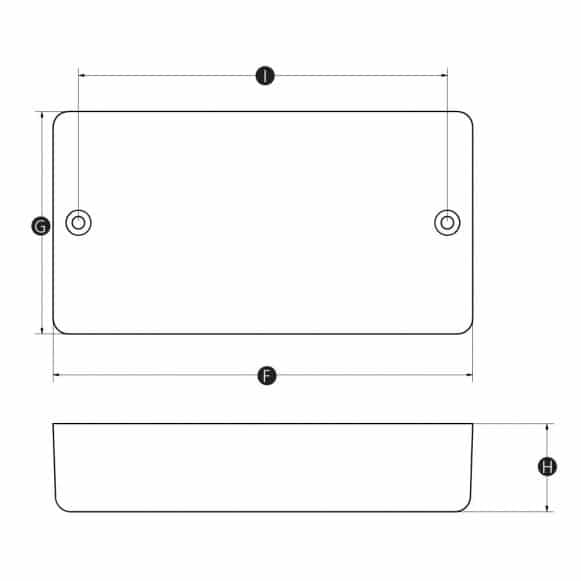

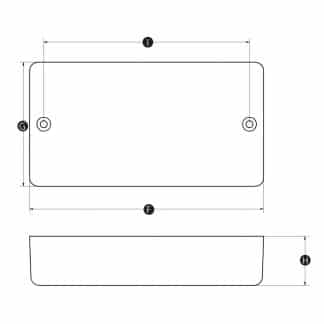

| Part No. | A | B | C | D | E | F | G | H | I | Thread size | Hole Size | Panel thickness | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

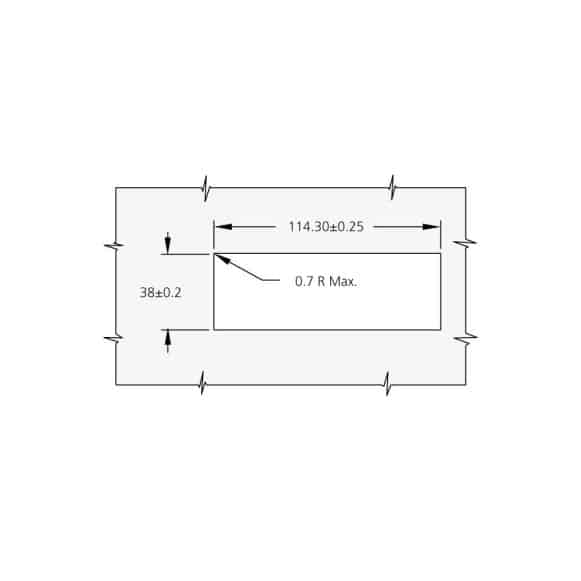

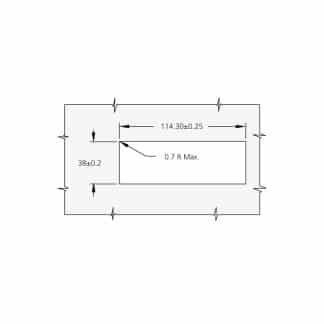

| 16049T | 124 | 47 | 24 | 107 | 2.3 | 122 | 64 | 25.5 | 107 | M12 | 3.7 | 1 - 1.8 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

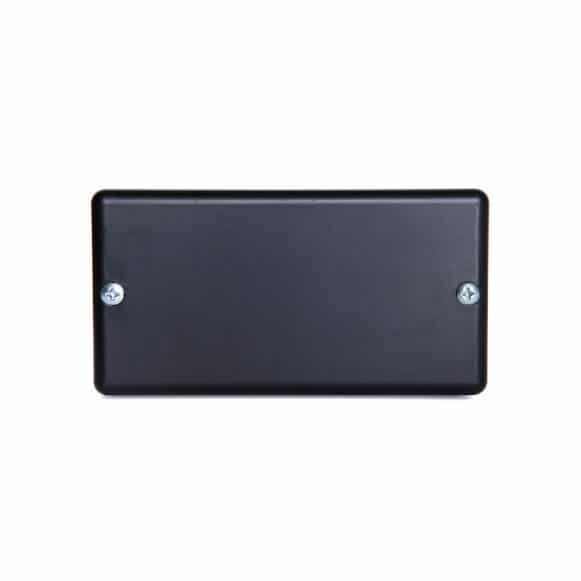

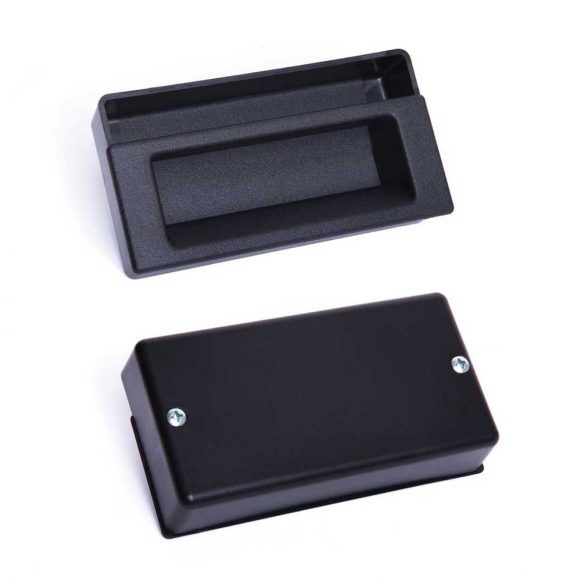

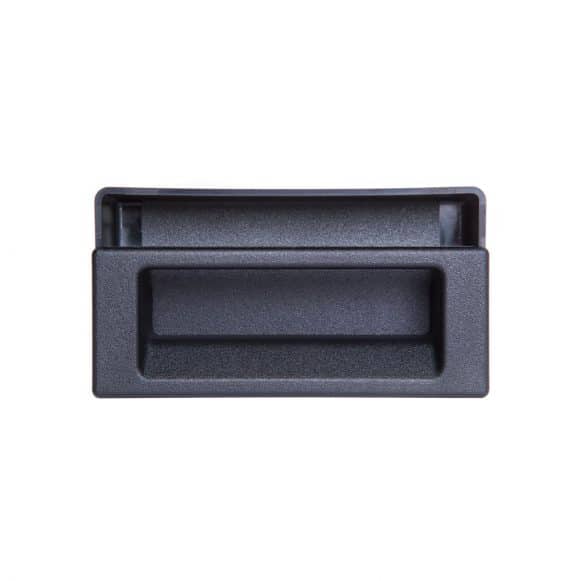

ABS Two-Part Panel Flush Fit Pull Handle
Description
Our Model 25 BH is a two-part pull handle which is specifically designed for installation in doors, drawers and machine and service panels. These handles are typically mounted in metal, plastic or composite sheet material.
The handle is flush and recessed which enables a discreet appearance and prevents any protrusion into the work area by the handle. Installation is fast and secure thanks to the two-part construction and included screw fittings.
The black, textured, ABS construction is durable and looks modern – a fantastic finishing touch for panels, enclosures and drawers in various industry sectors.
Fixing type
Quick fit, two piece, flush fitting. Compete with screws for assembly.
Material
ABS
Finish
Textured matt
Colour
Black
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
