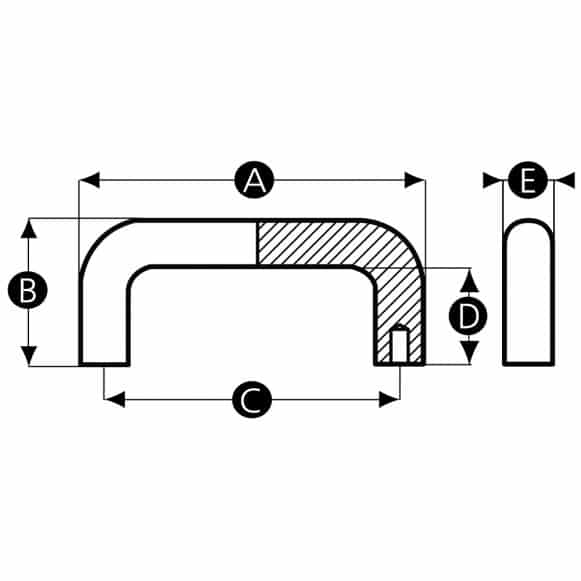

Part No. | A | B | C | D | E | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
11804W | 114 | 47 | 100 | 33 | 20 | M6 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
11805S | 129 | 53 | 112 | 36 | 26 | M8 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
11806Z | 142 | 51 | 128 | 37 | 20 | M6 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
11807V | 178 | 57 | 160 | 39 | 26 | M8 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
11808R | 210 | 57 | 192 | 39 | 26 | M8 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

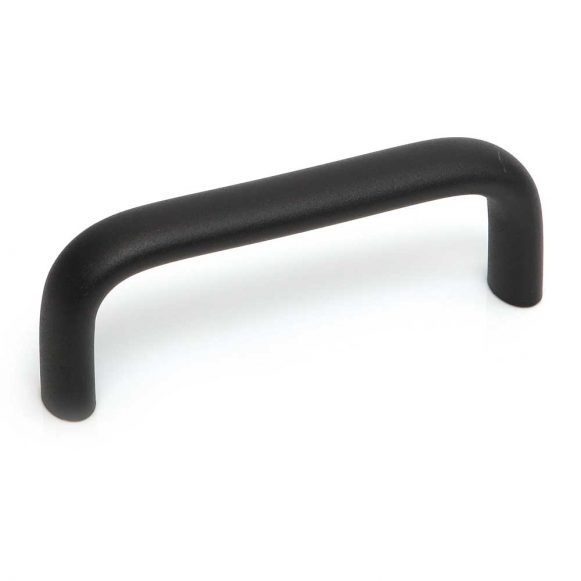

Aluminium Bridge Handle with Machined Threads
Description
A combination of cast aluminium construction, machined threads and matt black, powder coated finish ensure the Model 08C BH maintains an exceptional balance between durability and low weight.
This is a popular handle in industrial settings. It is well suited to demanding environments and long, repeated use. It is often specified on processing and packaging equipment, on guards and drawers on heavy machinery, and inside construction equipment.
We offer a wide range of handle lengths and thread sizes – all of which are available from stock.
This is identical to our Model 08V BH except this variation features concealed threads for fixing from below. By contrast the Model 08V BH has plain bores for fixing with bolts from above.
Fixing type
Machined threads for fixing with screws from below.
Material
Powder coated aluminium
Standard handle colour
Black
Finish
Matt
Thread
Machined threads
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
