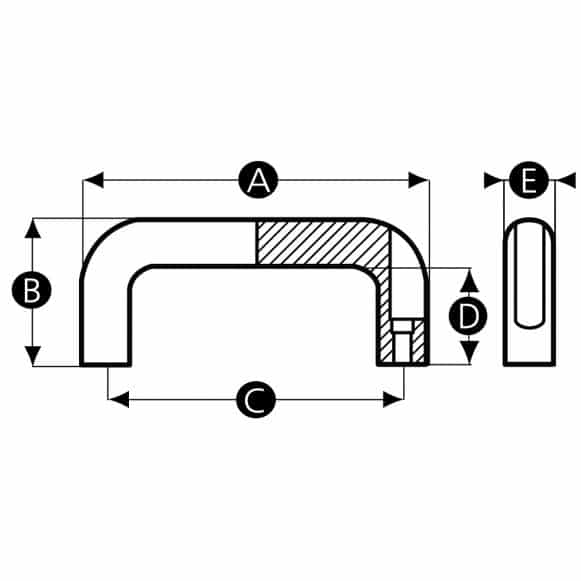

Part No. | A | B | C | D | E | Bore Size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
11809Y | 130 | 53 | 116 | 36 | 26 | 6.4 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
11810U | 146 | 55 | 132 | 38 | 26 | 6.4 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
11811Q | 178 | 57 | 164 | 40 | 26 | 6.4 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
11812X | 210 | 57 | 196 | 40 | 26 | 6.4 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

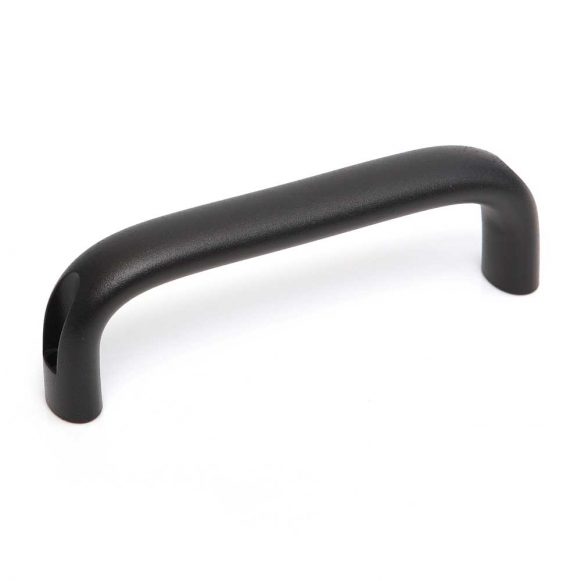

Aluminium Bridge Handle with Plain Bores
Description
A combination of cast aluminium construction and matt black, powder coated finish ensure the Model 08V BH maintains an exceptional balance between durability and low weight.
This is a popular handle in industrial settings. It is well suited to demanding environments and long, repeated use. It is often specified on processing and packaging equipment, on guards and drawers on heavy machinery, and inside construction equipment.
We offer a wide range of handle lengths and thread sizes – all of which are available from stock.
This is identical to our Model 08C BH except this variation has plain bores for fixing with bolts from above. By contrast the Model 08C BH features concealed threads for fixing from below.
Fixing type
Plain bores for fixing with bolts from above.
Material
Powder coated aluminium
Standard handle colour
Black
Finish
Matt
Thread
Machined bore
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
