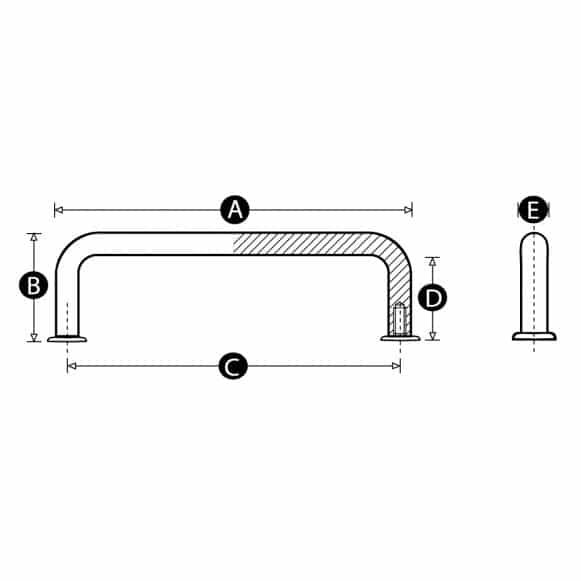

Part No. | A | B | C | D | E | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
5436R | 93 | 24 | 88 | 19 | 5 | M3 | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
5437U | 96 | 33 | 88 | 25 | 8 | M4 | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
5438X | 104 | 33 | 96 | 25 | 8 | M4 | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
5439P | 128 | 33 | 120 | 25 | 8 | M4 | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
5440V | 130 | 41 | 120 | 31 | 10 | M5 | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
5441Y | 190 | 41 | 180 | 31 | 10 | M5 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
5442Q | 245 | 41 | 235 | 31 | 10 | M5 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |

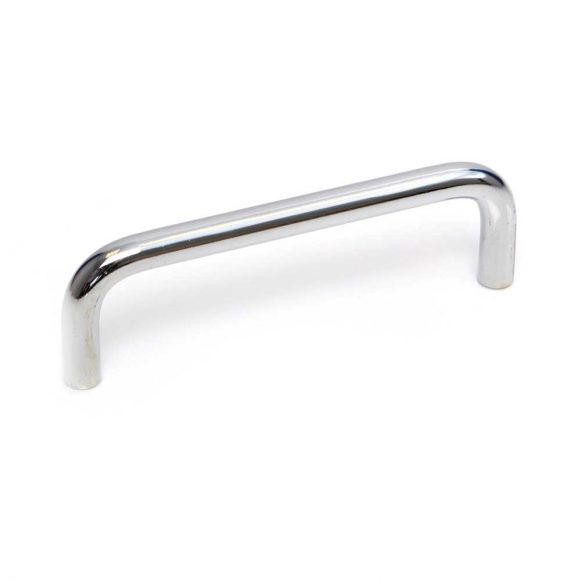

Chrome Plated Steel Pull Handle
Description
Manufactured from solid cylindrical steel, then chrome plated and polished, this pull handle is ideal for drawers, small doors and cabinets in various commercial and domestic settings. This handle has a traditional U or ‘bridge’ shape, making it easy to grab and well suited to office and kitchen furniture.
This product comes complete with nickel plated dress rings, screws and washers.
We also sell a bow-shaped handle in a similar finish – see our Model 23 BH. Also, our Model 21 BH features a similar profile except it is manufactured from stainless steel.
Fixing type
Machined threads for fixing with screws from below
Material
Chrome plated steel
Finish
Polished
Includes
This product comes complete with nickel plated dress rings, screws and washers.
Thread
Machined thread
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
