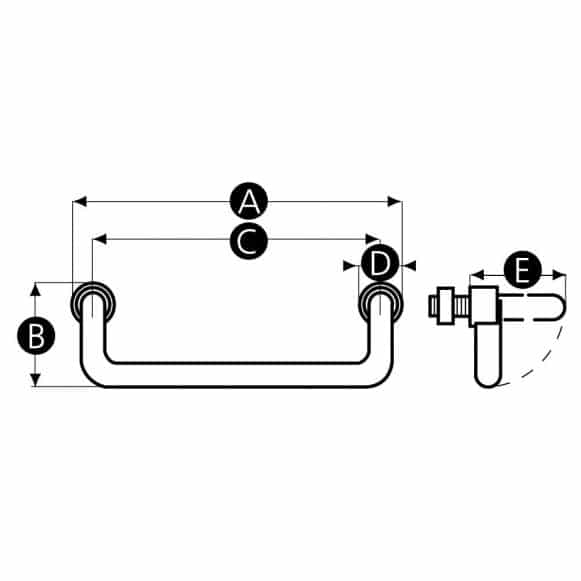

Part No. | A | B | C | D | E | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|
11801X | 116 | 42 | 100 | 16 | 51 | M10 | 15 | CAD | Stocked | Minimum order is 1 piece | Typical lead time is 2 days | Confirm price & availability |
11802T | 138 | 42 | 120 | 18 | 51 | M10 | 15 | CAD | Stocked | Minimum order is 1 piece | Typical lead time is 2 days | Confirm price & availability |
11803P | 198 | 42 | 180 | 18 | 51 | M10 | 15 | CAD | Stocked | Minimum order is 1 piece | Typical lead time is 2 days | Confirm price & availability |
Steel Folding Pull Handle
Description
This folding pull handle is ideal where space, ergonomic or safety considerations demand that the handle minimally protrudes. The handle features a 90° folding mechanism which gives plenty of space to grasp when in use, whilst also requiring very little space when folded away.
The highly polished chrome plated steel finish is durable and modern in appearance.
Zinc plated steel M10 threads and included nuts makes installation fast and secure.
Fixing type
Male threads with nuts for fixing from below.
Material
Chrome plated steel
Finish
Highly polished
Thread
Zinc plated steel male thread
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
