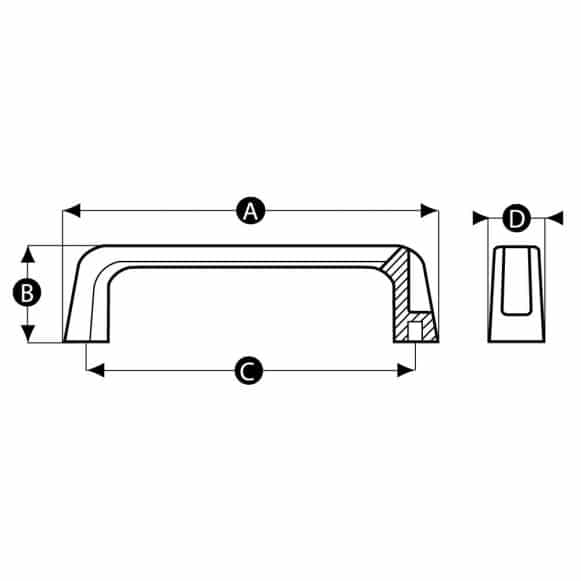

Part No. | A | B | C | D | E | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
12587Z | 137 | 42 | 117 | 33 | 23 | M5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
12549X | 180 | 46 | 160 | 36 | 27 | M6 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

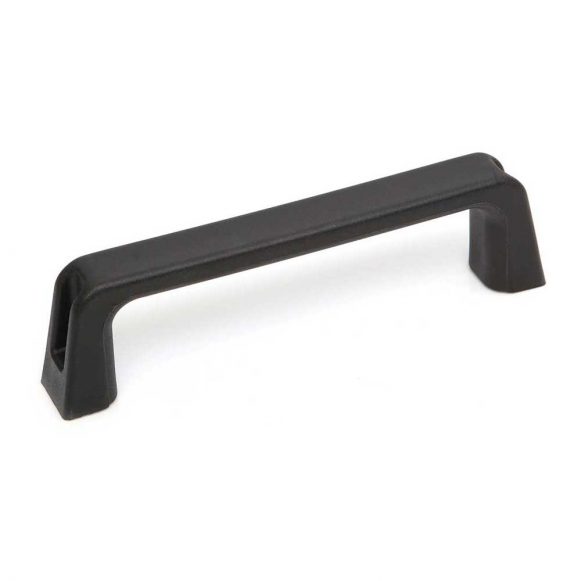

Nylon Bridge Handle with Brass Inserts
Description
Our Model 04 BH comprises a strong 15% glass filled nylon PA6 body and machined brass threaded inserts. This bridge handle is typically used in industrial settings on drawers, doors, lids, storage boxes and cabinets.
We supply two variations of this handle; 2 handle lengths and two thread sizes. Machined threads enable a secure and straightforward assembly.
Fixing type
Threaded inserts for fixing with screws from below.
Material
Reinforced nylon (15% glass filled PA6)
Standard handle colour
Black
Finish
Matt
Thread
Brass inserts
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
