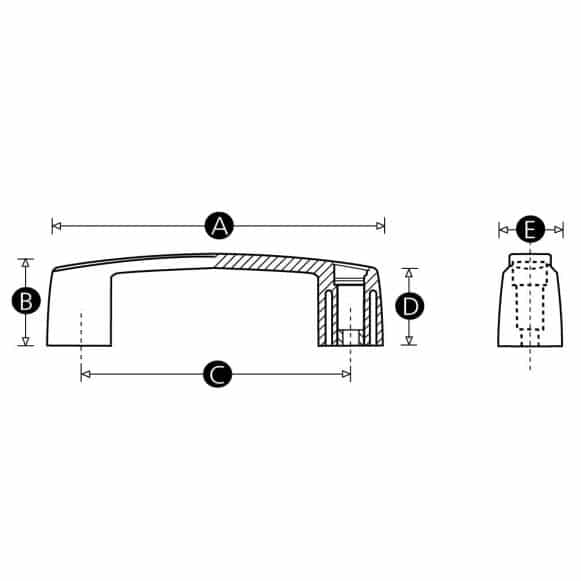

Part No. | A | B | C | D | E | Bore Size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
7758Z | 119 | 35 | 93 | 29 | 26 | 6.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
7733P | 146 | 40 | 117 | 34 | 29 | 8.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
7765T | 163 | 45 | 132 | 38 | 31 | 8.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
7797X | 214 | 50 | 179 | 43 | 35 | 8.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
Nylon Bridge Handle with Coloured Caps
Description
Our Model 01V BH and Model 01C BH are identical except for their fixing type. This Model 01V BH features plain bores for fixing with bolts from above while the Model 01C BH features threaded inserts for fixing with screws from below.
These two variations have been a constant, popular choice in our range of bridge handles, pull handles & machine handles for well over two decades. These handles are well suited to a wide range of applications, including industrial settings where durability, strength and weight are key considerations. Thanks to the 15% glass filled nylon (PA6) these handles perform exceptionally well.
Moreover, the possibility of selecting coloured caps gives the opportunity to match the colour scheme of your machine, equipment or furniture.
Fixing type
Plain bores for fixing with bolts from above.
Material
Reinforced nylon (15% glass filled PA6)
Standard handle colour
Black
Finish
Matt
Cap colours
Black caps as standard. Also available with caps in red, grey, white, blue, green, yellow or orange on request. (MOQs apply).
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
