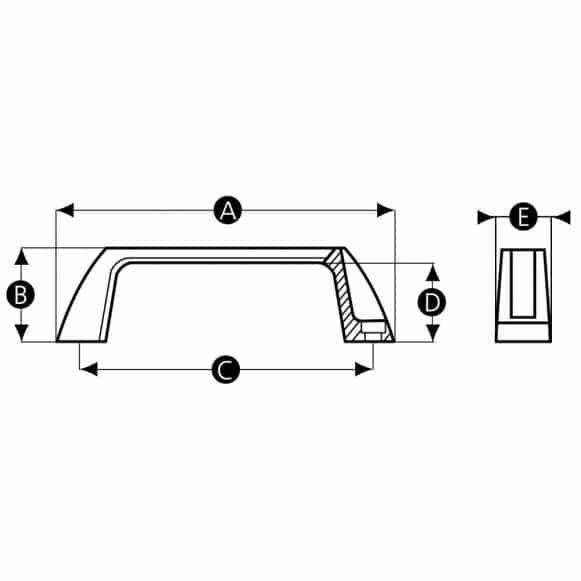

Part No. | A | B | C | D | E | Bore Size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
12559Q | 140 | 40 | 120 | 33 | 28 | 6.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
12560X | 170 | 48 | 150 | 40 | 28 | 6.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
Nylon Bridge Handle with Hexagonally Countersunk Bore
Description
This Model 06 BH bridge handle fulfils similar design criteria to our Model 03 BH and Model 05 BH. Where they differ most is this Model 06 BH handle features a hexagonally countersunk bore.
This choice of fixing type allows a standard hexagonal bolt head to fit flush within the countersunk bore which in turn makes for an uncomplicated and strong installation. Simply drill the appropriately sized mounting holes (non-threaded in this case), push the bolt through the bore and secure with a nut from the underside.
This pull handle benefits from a 15% glass filled nylon construction which gives characteristically low weight and high strength properties. Our clients often specify these parts on constructions made of aluminium profile, and various machine doors, drawers, guards and cabinets on industrial machinery and equipment in the manufacturing, chemical, and pharmaceutical industries.
Fixing type
Hexagonally countersunk bore for fixing with bolts from above.
Material
Nylon
Standard handle colour
Black
Finish
Matt
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
