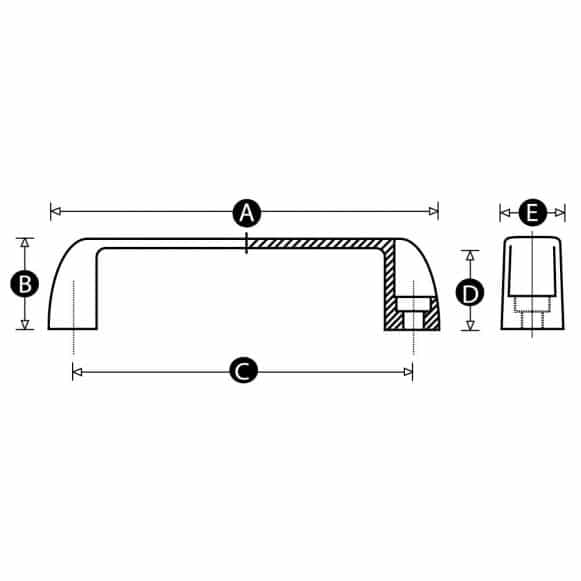

Part No. | A | B | C | D | E | Bore Size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
11122W | 111 | 35 | 94 | 29 | 22 | 6.5 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
11123S | 140 | 41 | 117 | 34 | 26 | 8.5 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
11124Z | 154 | 45 | 132 | 38 | 27 | 8.5 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
11125V | 205 | 50 | 179 | 43 | 31 | 8.5 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
11126R | 250 | 50 | 225 | 43 | 31 | 8.5 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |

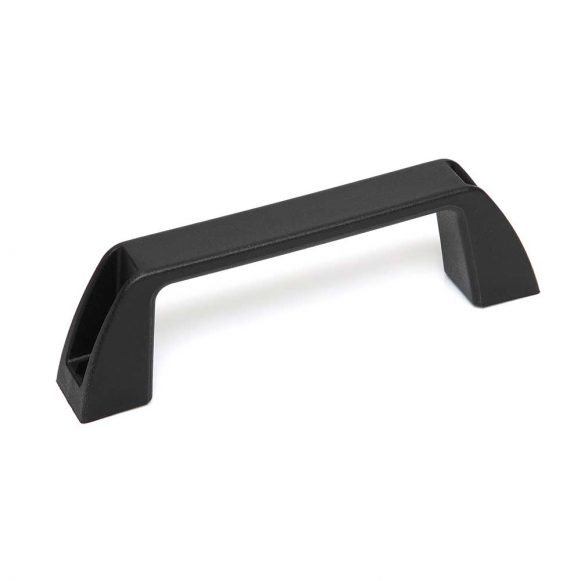

Nylon Bridge Handle with Moulded Bores
Description
Our Model 03 BH is commonly used on drawers, doors, lids, storage boxes and cabinets on various industrial machines and equipment. The reinforced nylon (15% glass filled PA6) construction is strong, durable, low weight and provides excellent value for money. Moulded (or plain) bores allow secure fitment via standard M6 or M8 bolts.
Fixing type
Plain bores for fixing with bolts from above.
Material
Reinforced nylon (15% glass filled PA6)
Standard handle colour
Black
Finish
Matt
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
