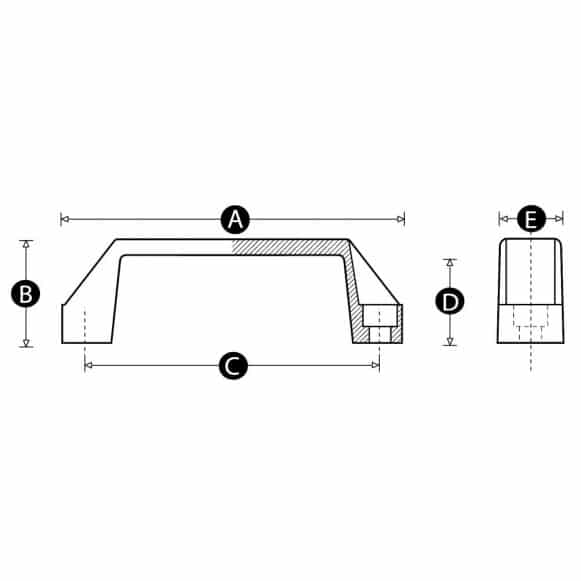

Part No. | A | B | C | D | E | Bore Size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
4255Q | 134 | 41 | 117 | 35 | 26 | 8.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
15530Q | 134 | 41 | 117 | 35 | 26 | 6.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

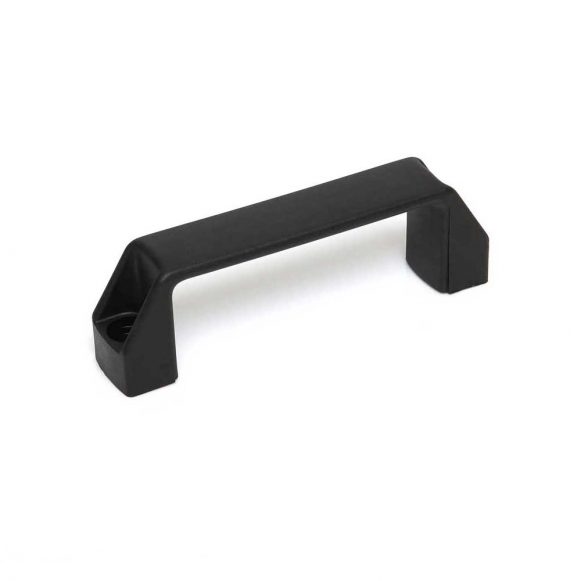

Nylon Bridge Handle with Moulded Bores
Description
The Model 05 BH pull handle is one of our most popular handles for industrial applications. This bridge style handle is found on countless doors, drawers, cabinets, access panels, enclosures and machine safety guards across the world.
Like many of our most popular products, this pull handle is injection moulded using a reinforced 15% glass filled nylon. This material choice delivers significant strength and durability – more than enough for most applications – whilst remaining low weight and affordable.
Fixing type
Plain bores for fixing with bolts from above.
Material
Reinforced nylon (15% glass filled PA6)
Standard handle colour
Black
Finish
Matt
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
