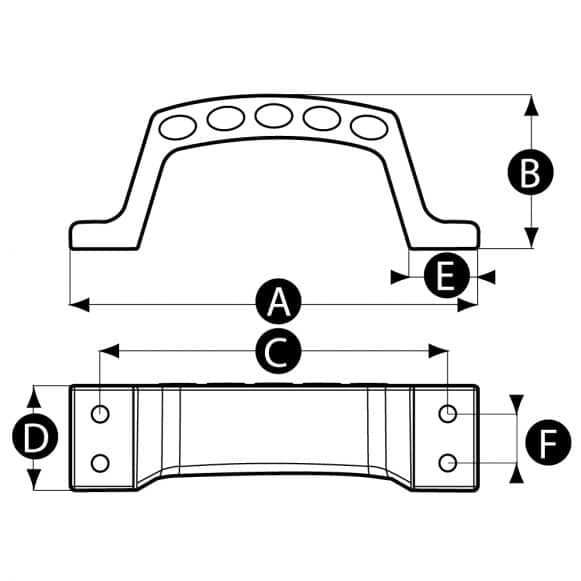

| Part No. | A | B | C | D | E | F | Bore Size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12561T | 162 | 64 | 140 | 42 | 27 | 20 | 6.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

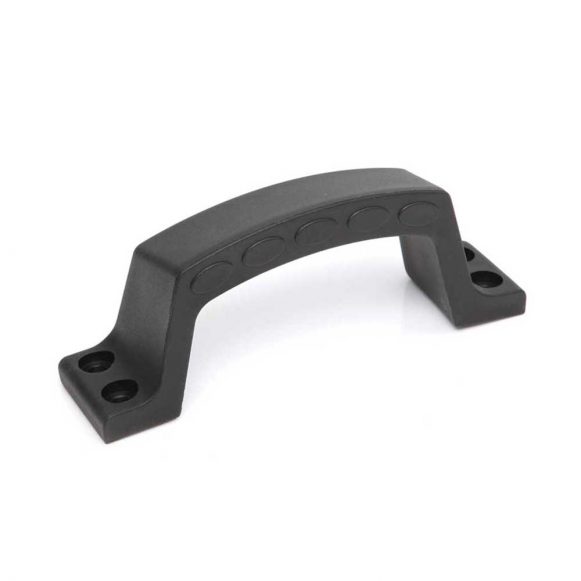

Nylon Foot Step Handle
Description
Our Model 18 BH is a multifunctional handle and foot step. When installed horizontally and perpendicular to a wall and the top of the handle is flat and large enough to use as a step. Raised areas on the flat surface improve grip. The handle is ergonomic in the hand and well suited to grabbing whilst climbing or as a pull handle on a door or cabinet.
These foot-step handles are ideal for creating a single step or combine multiple handles to create a ladder-like structure. Common applications include transport and recreational vehicles, yachts, ships and other marine craft.
The glass filled nylon construction is heavy duty but low weight. Four mounting holes ensure a robust installation.
Fixing type
Plain bores for fixing with bolts from above.
Material
Reinforced nylon (15% glass filled PA6)
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
