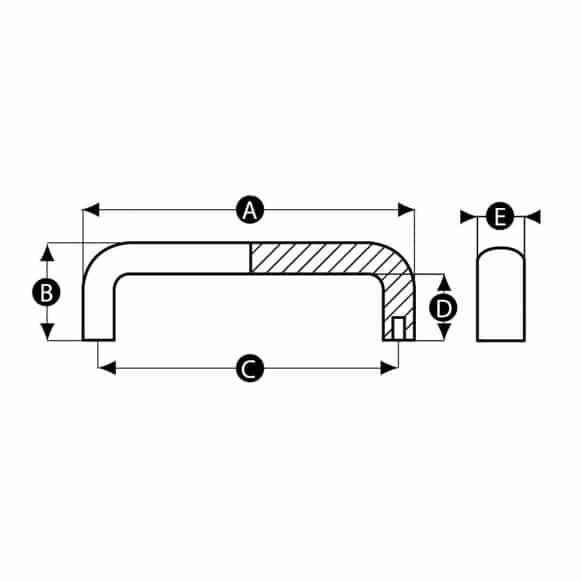

Part No. | A | B | C | D | E | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
12550T | 106 | 41 | 94 | 29 | 20 | M5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
12551P | 133 | 50 | 117 | 34 | 25 | M6 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
12552W | 137 | 50 | 120 | 34 | 25 | M6 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
12553S | 148 | 50 | 132 | 34 | 25 | M6 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
12554Z | 168 | 58 | 150 | 40 | 29 | M8 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
12555V | 197 | 58 | 179 | 40 | 29 | M8 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

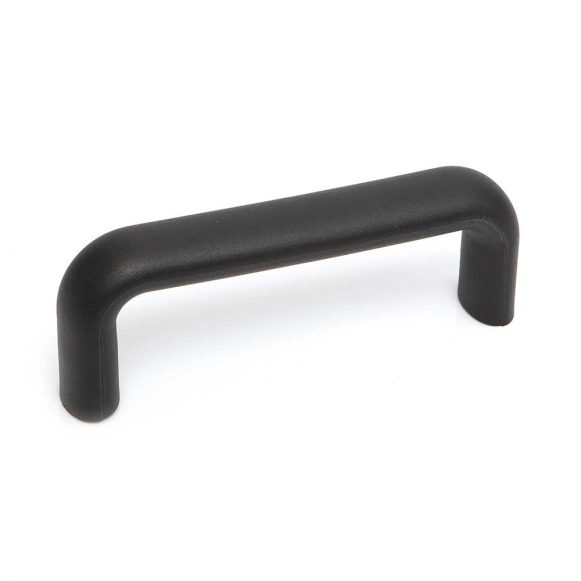

Nylon Pull Handle with Brass Inserts
Description
The combination of reinforced nylon (15% glass filled PA6) and machined brass inserts ensure this pull handle is both low weight, high strength and exceptional value. The matt black finish is nicely textured and feels tactile in the hand.
We have six variations of this pull handle – all available from stock. Six handle lengths and three thread sizes ensure most applications are catered for. From small doors, hatches and drawers on packaging equipment and electronics enclosures to flight cases, cabinets and conveyors, the Model 07 BH is versatile and long lasting.
Our Model 08C BH has similar size and ergonomics but is a better choice in particularly demanding environments where it’s aluminium construction is an advantage.
Fixing type
Threaded inserts for fixing with screws from below.
Material
Reinforced nylon (15% glass filled PA6)
Standard handle colour
Black
Finish
Matt
Thread
Brass inserts
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
