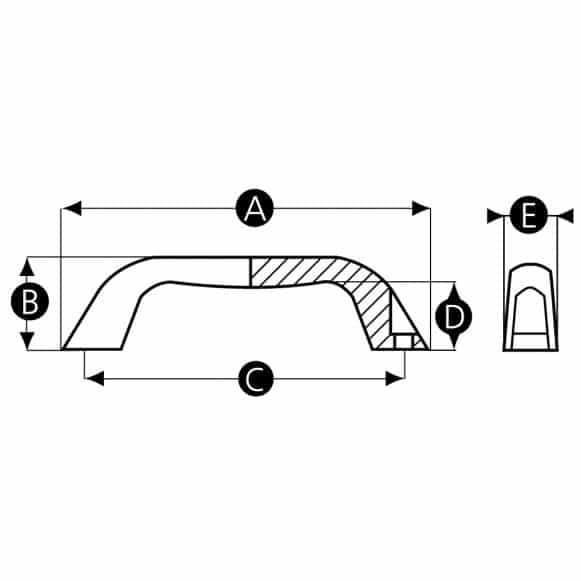

| Part No. | A | B | C | D | E | Bore Size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12556R | 112 | 38 | 92 | 26 | 22 | 5.3 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 12557Y | 141 | 38 | 120 | 26 | 24 | 5.3 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 12558U | 168 | 44 | 145 | 30 | 28 | 6.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
Nylon Pull Handle with Hexagonally Countersunk Bore
Description
This lightweight, ergonomic pull handle is manufactured from 15% glass filled reinforced PA6 nylon. It features hexagonally countersunk bores which make for a simple installation.
The included cover caps hide the hex bolts and ensure a smart, tidy appearance that is suitable for a range of drawers, doors and cabinets. These handles are often used in various marine craft and recreational vehicles.
Fixing type
Hexagonally countersunk bores for fixing with bolts from above.
Material
Black, matt finish reinforced nylon (15% glass filled PA6)
Caps
Black caps to conceal fixing head.
Thread
Hexagonally countersunk moulded bore
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
