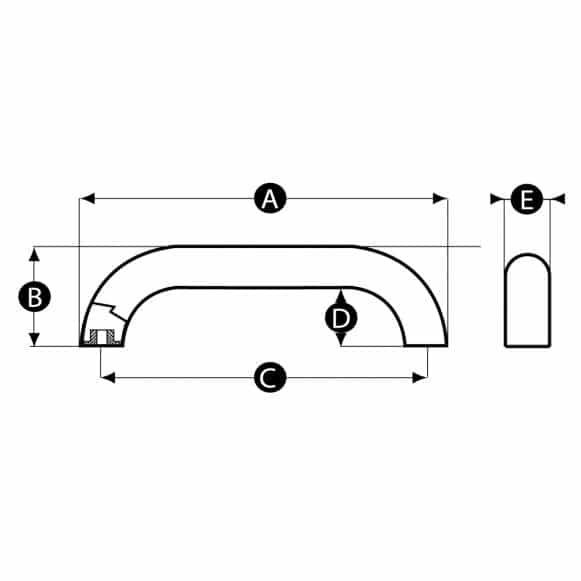

Part No. | A | B | C | D | E | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
12562P | 220 | 60 | 195 | 35 | 25 | M6 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
12563W | 325 | 75 | 300 | 50 | 25 | M6 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

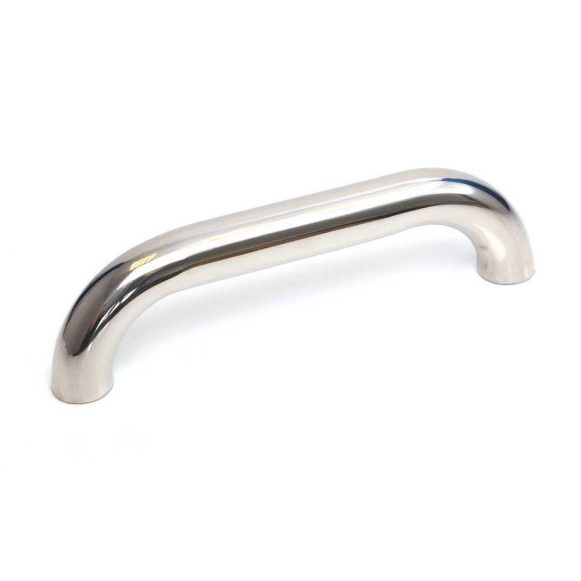

Stainless Steel Polished Door & Pull Handle
Description
This is a solid and well finished stainless steel door handle. It is ideally suited to larger doors and cabinets.
The all-stainless construction is strong, corrosion resistant, and along with the electrolytically polished finish, gives a high quality appearance.
The handle features a simple, one-piece shape which makes cleaning straight forward and ensures dirt and contaminants do not collect on the handle surface.
Machined M6 threads make installation fast and secure.
Fixing type
Welded base plate with machined threads for fixing with screws from below.
Material
Stainless steel
Finish
Electrolytic polish
Thread:
Machined thread
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
