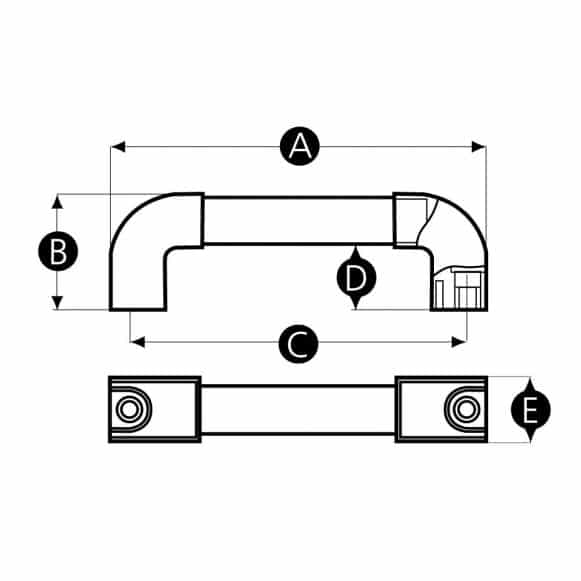

| Part No. | A | B | C | D | E | Bore Size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14281S | 232 | 78 | 210 | 44 | 41 | 10 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 14282Z | 274 | 78 | 250 | 44 | 41 | 10 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

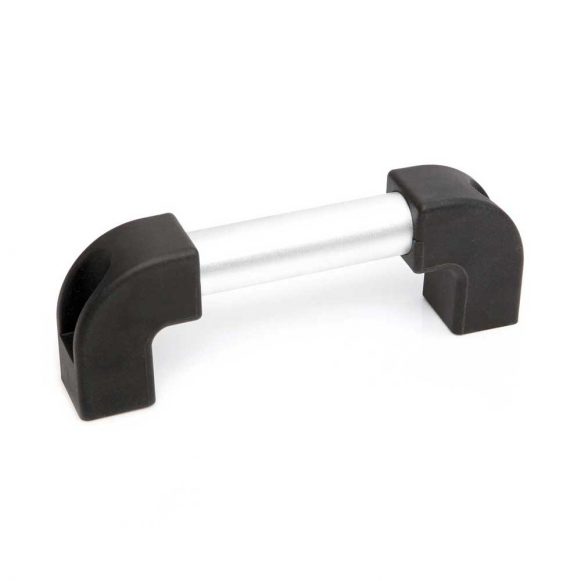

Tubular Machine Handle
Description
The Model 20 BH tubular machine handle has been specifically designed for demanding industrial environments. Common applications include safety shields & guards, drawers, cabinets and doors on heavy equipment such as CNC routers and injection moulding machines.
The glass filled nylon ends and aluminium tubular section are hard wearing and easy to grasp, even with when wearing gloves.
10mm moulded bores make fitting straightforward. These handles can be mounted to any flat surface, including aluminium profile.
Fixing type
Plain bores for fixing with bolts from above.
Material
Reinforced nylon (15% glass filled PA6)
Standard handle colour
Black ends + silver metal tube
Finish
Matt
Thread
Moulded bore
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
