Male Plastic Indexed Clamping Handle with Straight Lever

Description

The Model 01M CH has been a mainstay in our range of standard components for over two decades. This handle’s simplified form and intuitive, reliable clamping mechanism make this is a no-fuss, refined clamping solution. It is suited to a wide range of applications.

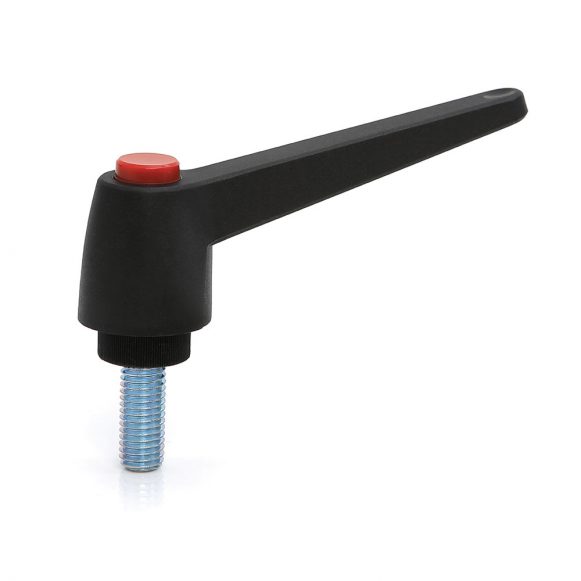

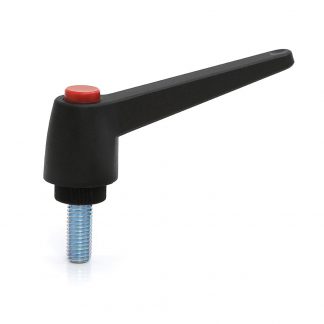

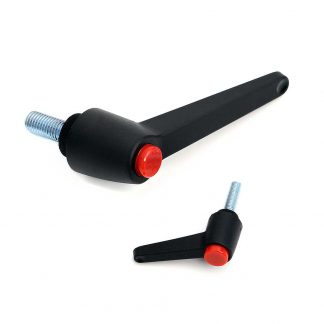

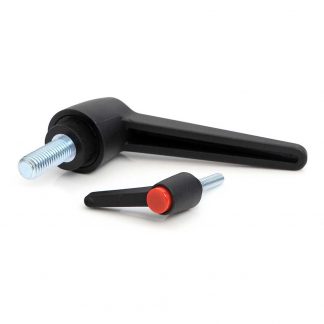

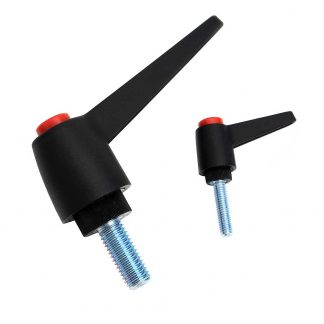

As standard, this clamping handle comes with a red cap, black glass reinforced plastic handle and ratchet with zinc plated steel male threaded stud. The cap is depressed to disengage the lever, allowing the user to rotate the handle to the desired position, then re-engage the ratchet to tighten or loosen the clamping mechanism.

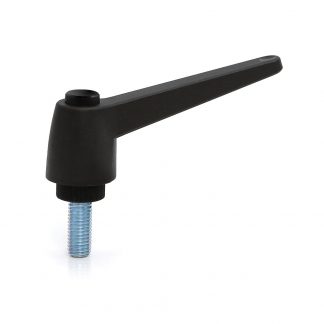

The brightly coloured cap has two benefits. Firstly, it is immediately obvious where to press to disengage the clamping lever. This is often vital in safety critical environments. Secondly, our clients often specify a coloured cap which matches the colour scheme of their machine, equipment or furniture, adding a subtle ‘finishing touch’ to their product.

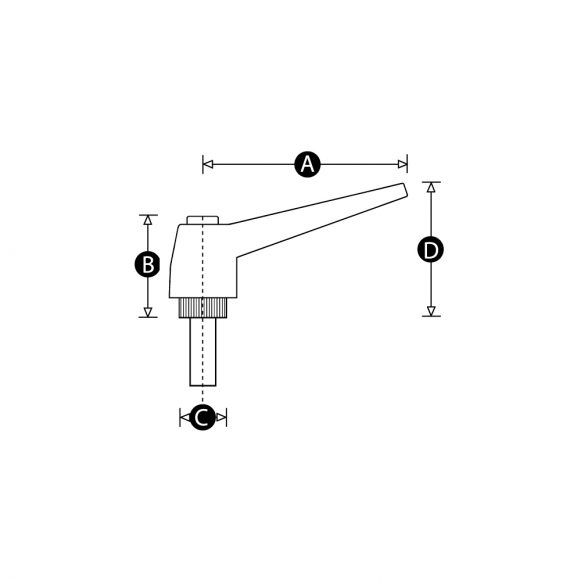

We stock a comprehensive range of handle and male thread sizes, ranging from M5 x 15mm up to M16 x 50mm. A zinc plated steel threaded stud is specified as standard, although we can supply stainless steel on request and subject to minimum order quantities. We can also manufacture the handle in various other handle and cap RAL colour combinations (MOQs apply).

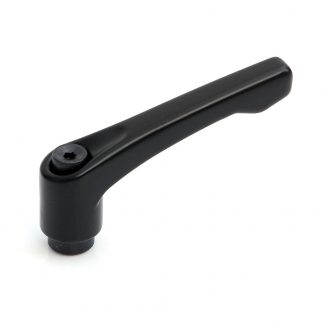

This clamping handle is also available with a female thread.
