Model 11 ML

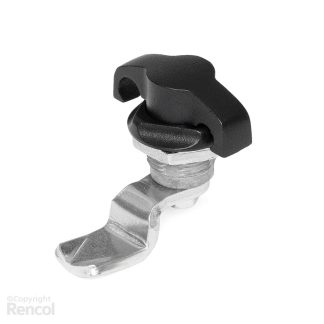

Cylinder Cam Lock, Quarter Turn Latch for Padlocks

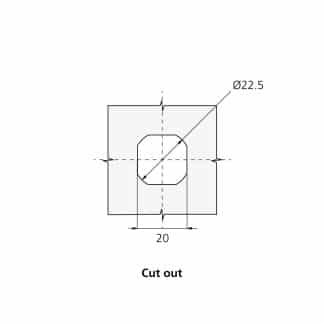

Cut out diagram for Quarter turn cam lock for use with padlock

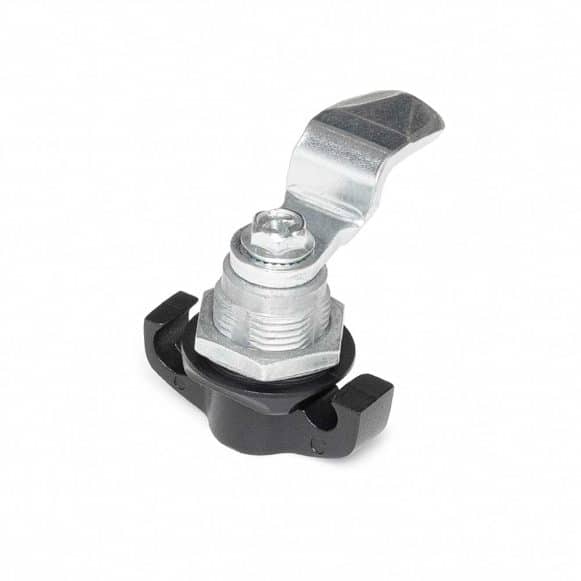

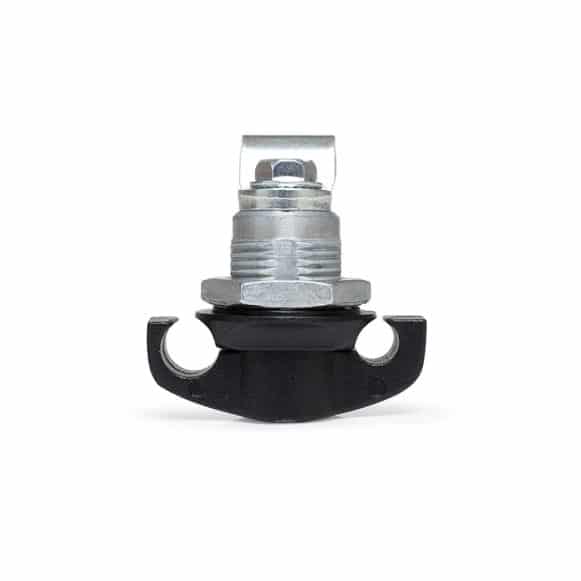

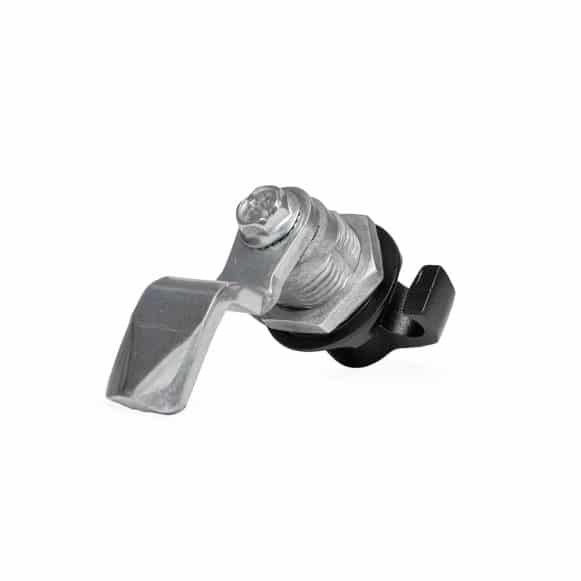

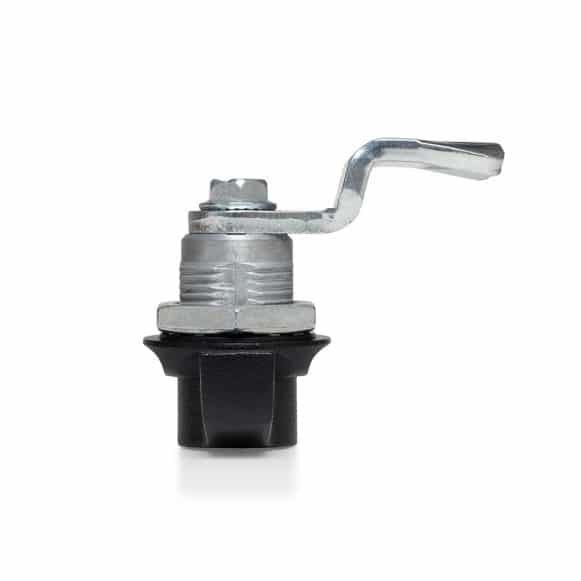

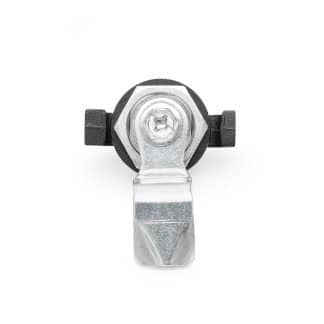

Padlock compatible quarter turn cam lock

Description

Our Model 11 ML cam lock is designed to be used in conjunction with a padlock to provide increased security on cabinets and enclosures. Cut outs in the lock knob ensure a close fit for various padlock shackle sizes.

These quarter turn cam locks are strong and durable thanks to a die cast zinc plated steel lock mechanism and black powder coated die cast zinc knob (16830X & 16829Q) or die cast zinc plated steel lock mechanism and powder coated blue/grey knob (16672R).

Rotate the lock knob by a quarter turn (90 degrees) to lock or unlock the cabinet.

Material

Die cast zinc plated steel lock mechanism and black powder coated die cast zinc knob (16830X & 16829Q) or die cast zinc plated steel lock mechanism and powder coated blue/grey knob (16672R).

IP rating

IP54: Dust protected / Protected against splashing water

Download datasheet

This product complies with:

RoHS REACH Conflict Minerals California Prop 65

Variations
Frequently asked questions

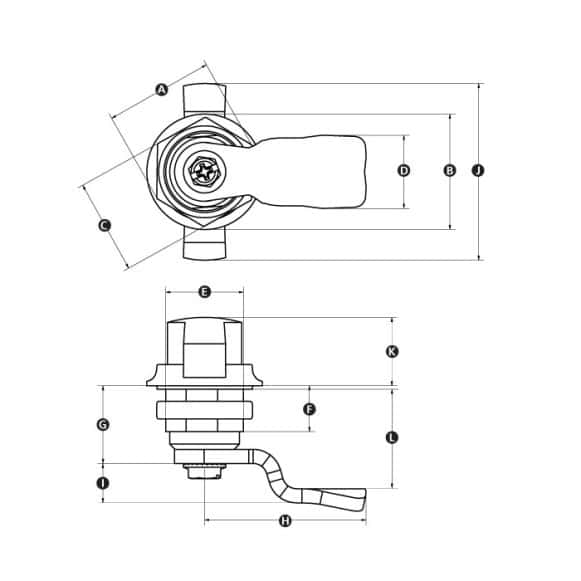

Part No.	A	B	C	D	E	F	G	H	I	J	K	L	Download CAD	Stocked status	M.O.Q.	Typical lead time	Price & availability
16830X	31	33	27	19	22	13	22	45	11	50	19	28	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & availability
16672R	31	28	27	19.6	19.8	11.9	33	22.5	9.3	39.2	29.6	27	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & availability
16829Q	31	33	27	19	22	13	22	45	11	50	19	6	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & availability
