| Part No. | A | B | C | D | E | F | G | H | I | J | K | L | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15938X | 34 | 35 | 27 | 17 | 19 | 18 | 32 | 48 | 4 | 6 | 3 | - | 1" - 20 UNF | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
| 16144R | 34 | 32 | 27 | 9 | 19 | 21 | 31 | 33 | - | - | 4 | 34 | 1" - 20 UNF | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
Diecast Zinc Cam Latch Cylinder Lock with Hex/Allen Key
Description

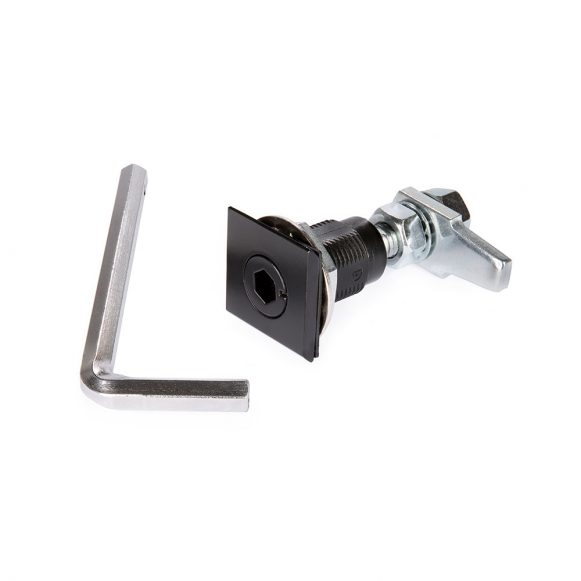

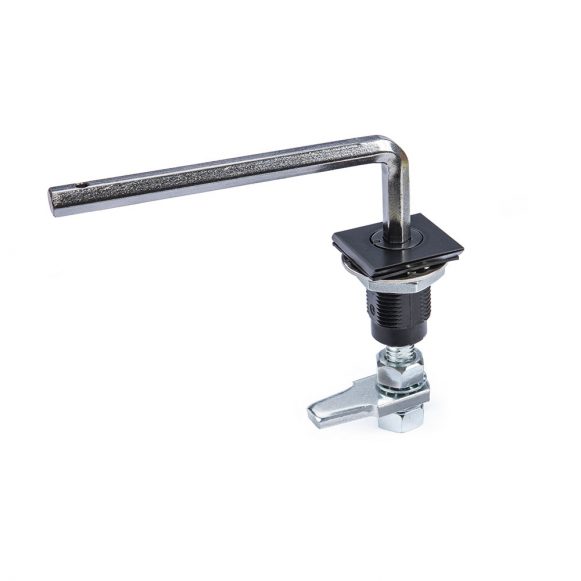

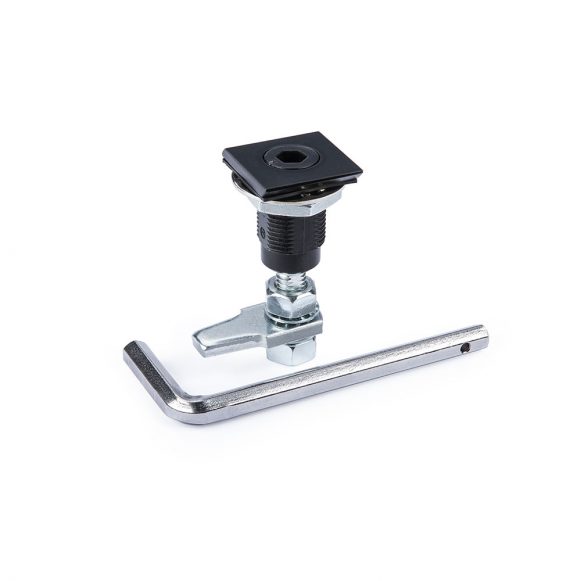

The Model 07 ML is cam action cylinder lock with a hex key lock type and included hex/allen key. A quarter turn with the allen key rotates the zinc plated steel cam, securely locking or unlocking your cabinet or enclosure.
The black powder coated die cast zinc construction ensures high strength and durability. Once installed these latches have an IP54 rating against dust and splashing water.

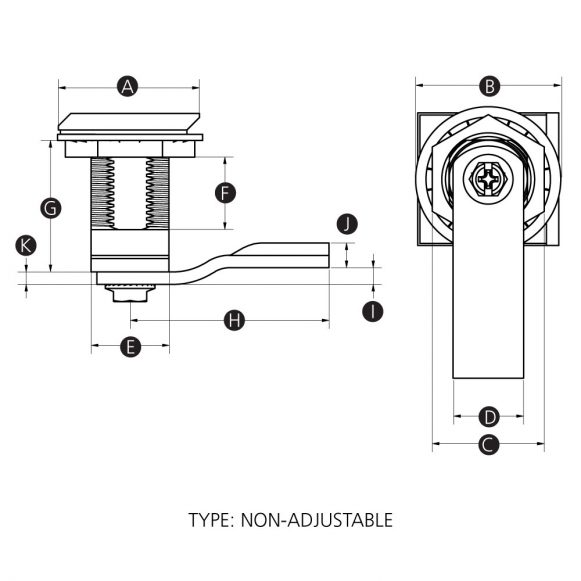

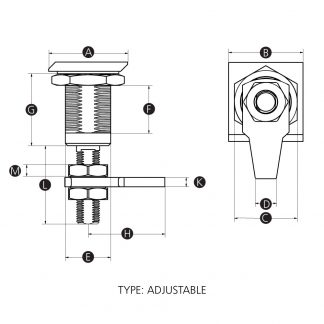

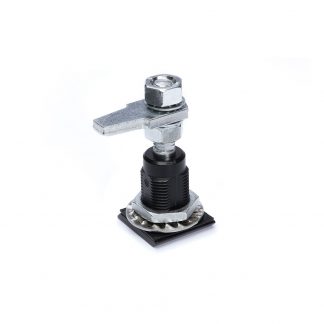

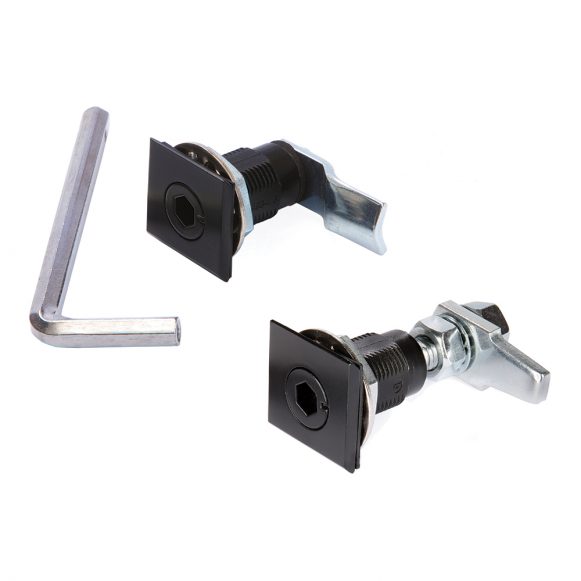

We offer two variations; firstly a non-adjustable type where the rotating cam has a fixed distance from the head of the cylinder lock, and secondly an adjustable type which provides 25mm of adjustment from the head of the cylinder lock.
Material
Die cast zinc housing and insert, zinc plated steel cam.
Finish
Black powder coated housing. Plated cam.
IP rating
IP54: Dust protected / Protected against splashing water
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
