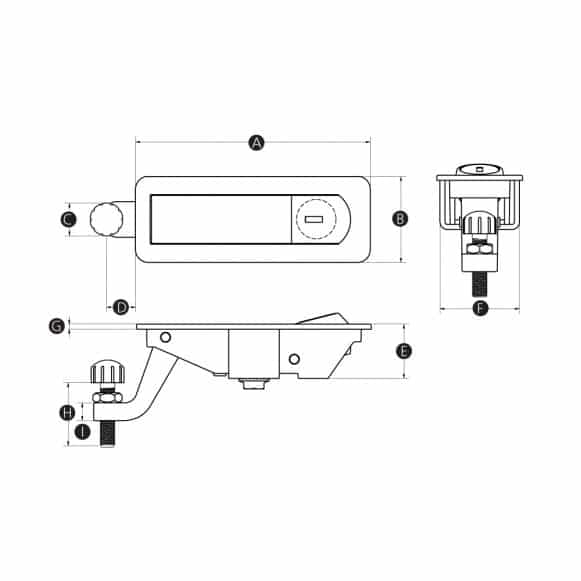

| Part No. | A | B | C | D | E | F | G | H | I | Lockable | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15935Y | 93 | 34 | 13 | 12 | 22 | 32 | 2 | 25 | 7 | Yes | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
| 15936U | 93 | 34 | 13 | 12 | 22 | 32 | 2 | 25 | 7 | No | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
Compression Latch, Die Cast Zinc
Description

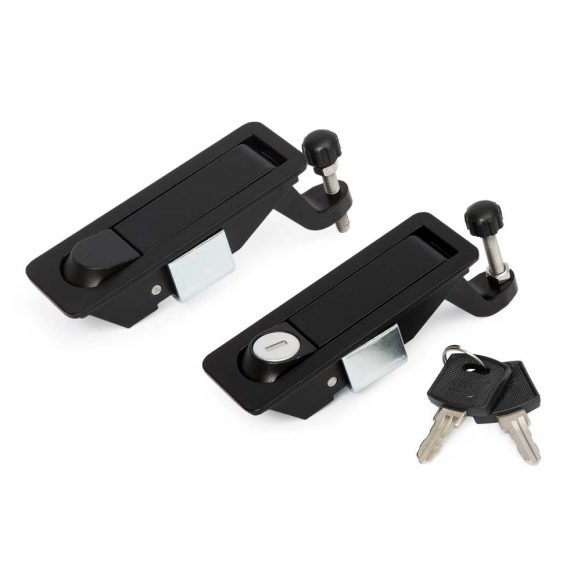

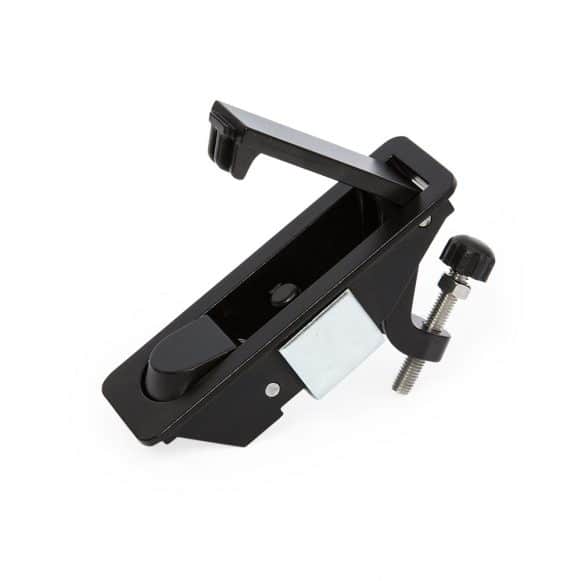

Our Model 06 ML is a push button compression latch (also known as a compression lock, or lever latch) which is manufactured from durable, black powder coated die cast zinc with a zinc plated steel adjustment screw. These are exceptionally well finished products; not only do they repeatedly and reliably, lock, latch and unlock, they do so with a user friendly and ergonomic lever mechanism – all accompanied by a satisfying ‘clunk’ when opening and closing.
These compression latches are installed on doors, drawers and hatches on various types of enclosures and cabinets primarily constructed of metal, plastic or wooden composite sheet material. The locking lever arm has a threaded screw which allows the lock to adapt to various panel thicknesses.

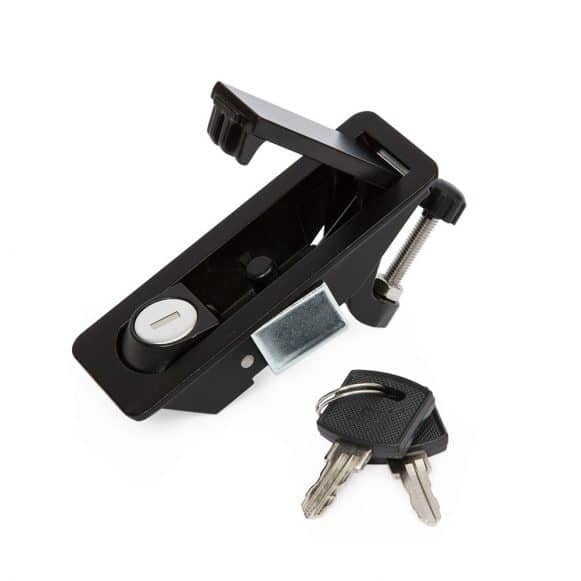

We offer two variations; with and without a keyed lock.
Material
Die cast zinc housing, insert and handle. Zinc plated steel screw.
Finish
Black powder coated housing, insert and handle. Plated screw.
Includes
Screw which adjusts for variable mounting distance. Locking item complete with key.
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
