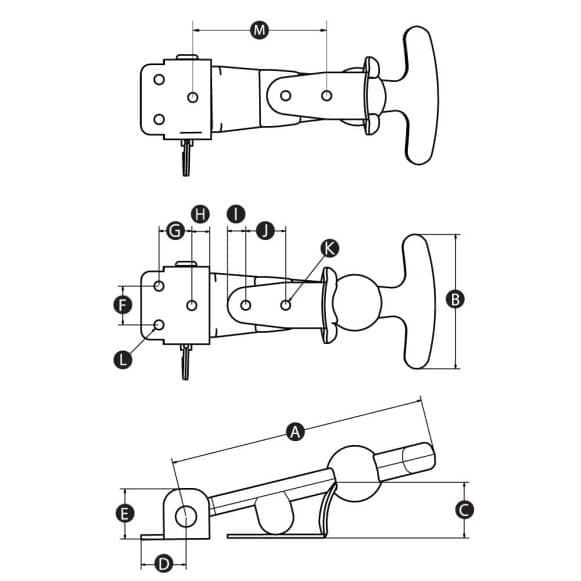

| Part No. | A | B | C | D | E | F | G | H | I | J | K | L | M | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16892R | 112 | 59 | 24.5 | 20.2 | 22 | 16.5 | 15 | 7.5 | 8 | 17.5 | 4.1 | 4.2 | 57 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

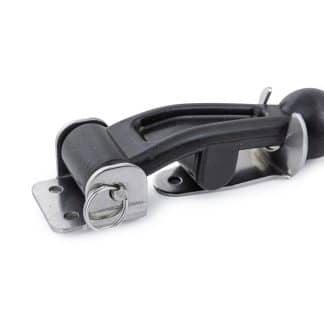

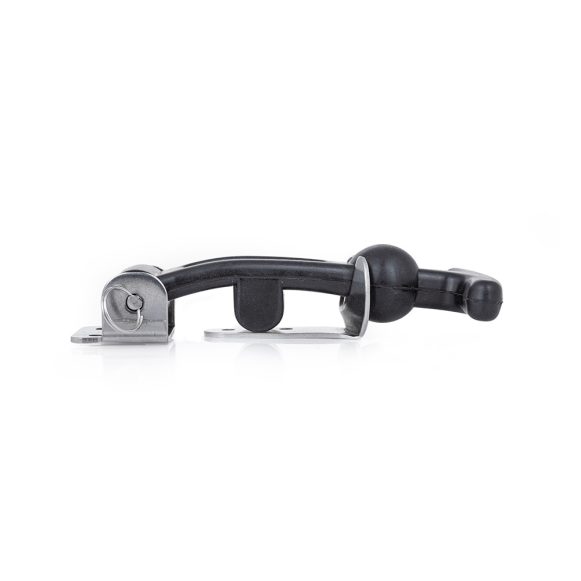

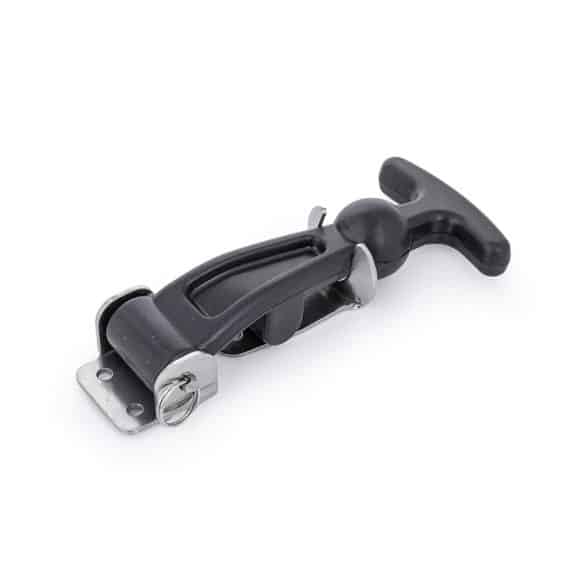

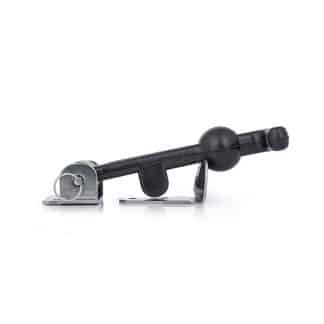

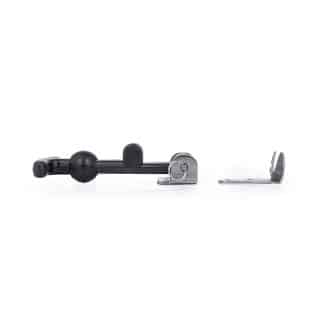

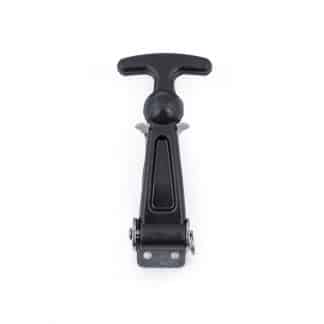

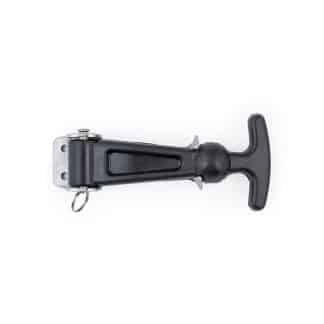

Rubber & Stainless Steel Hood/Bonnet Latch
Description
Our Model 01 RL hood or bonnet latch is commonly used in automotive applications for securing enclosures, cabinets, hoods, and car bonnets.
The rubber handle ensures a safe latching mechanism and also provides a dampening effect to secure against vibrations while driving.

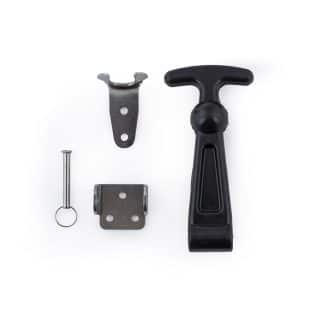

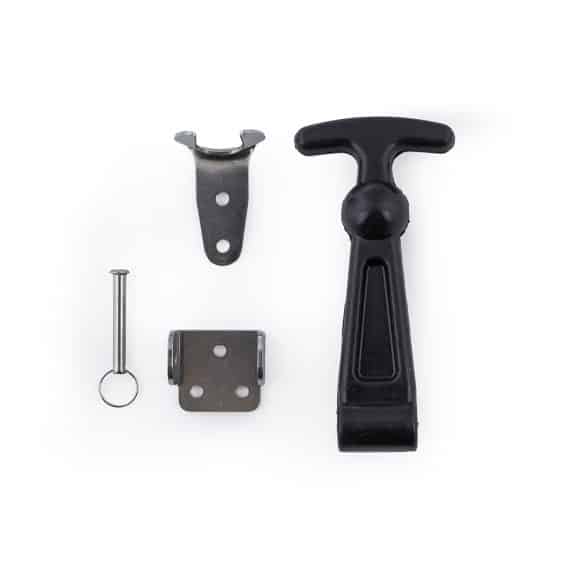

The stainless steel catch, mounting bracket and pin allow the latch to be used in all weathers without concern for corrosion.
Material
Stainless steel catch and hinge. Chloroprene rubber latch. Chloroprene has excellent oil, chemical, heat, ozone & weather aging resistance, and low flammability.
Temperature
-30°C to 100°C (short periods from -40°C up to 120°C)
This product complies with:
RoHS REACH Conflict Minerals California Prop 65Related products
-
