| Part No. | A | B | C | D | E | F | G | H | I | J | Key Type | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16259Q | 28 | 24 | 24 | 20 | 18 | 17 | 23 | 45 | 5.5 | 24 | With Key | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |

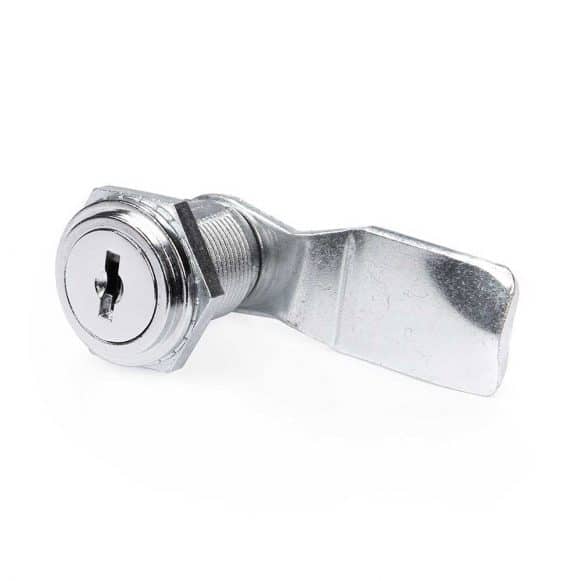

Quarter Turn Camlock Latch with Cylinder Lock & Key
Description
Our Model 14 ML is a chrome plated die cast zinc standard cylinder lock with a quarter turn, 90° cam locking mechanism. These latches allow the user to open a door, drawer or access panel by inserting the key and rotating 90°. This directs the cam away from the contact point within the enclosure or cabinet and allows access.
These cam locks come complete with 2 matching keys. The cam can be switched from left to right, allowing left handed or right handed opening.
Description
90 degree RH/LH cam-action lock with key
Material
Chrome plated die cast zinc housing and insert, zinc plated steel cam
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
