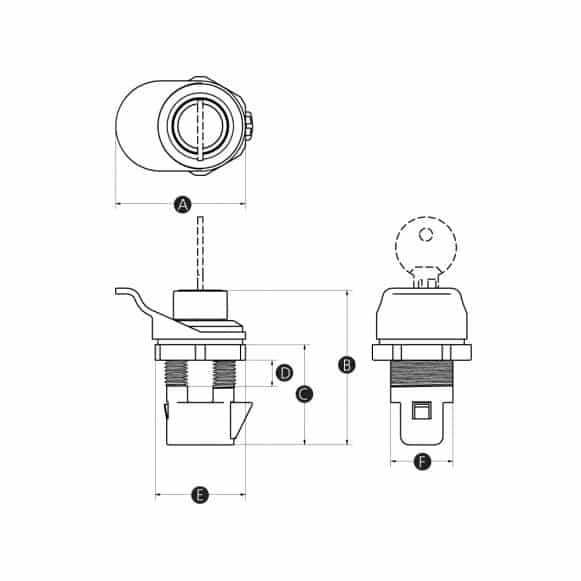

| Part No. | A | B | C | D | E | F | Thread size | Lockable | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15937Q | 46 | 55 | 36 | 9 | 32 | 22 | 1" - 20 UNF | Yes | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16143V | 46 | 55 | 36 | 9 | 32 | 22 | 1" - 20 UNF | No | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

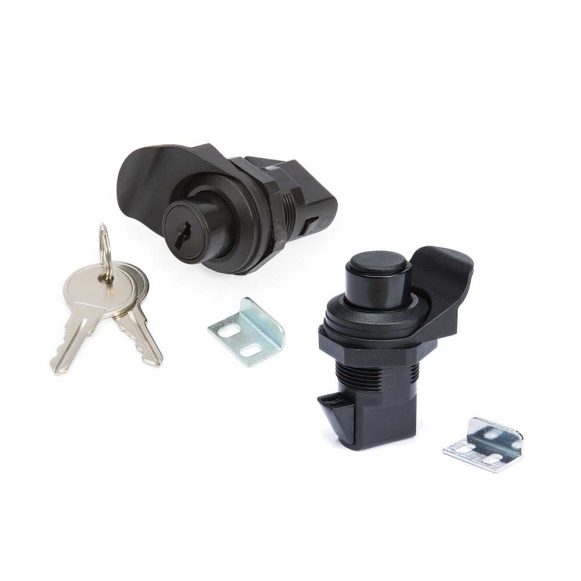

Push Button Push-to-Close Latch
Description
The Model 04 PL is a push-to-close latch which is commonly installed on metal, plastic or composite sheet material typically used in the construction of enclosures, cabinets and access panels. These latches will automatically latch the door, drawer or panel, improving security and safety. Press the push button and use the integral handle to pull the door open again.

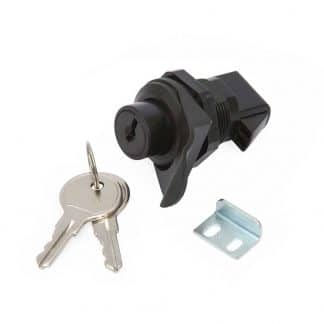

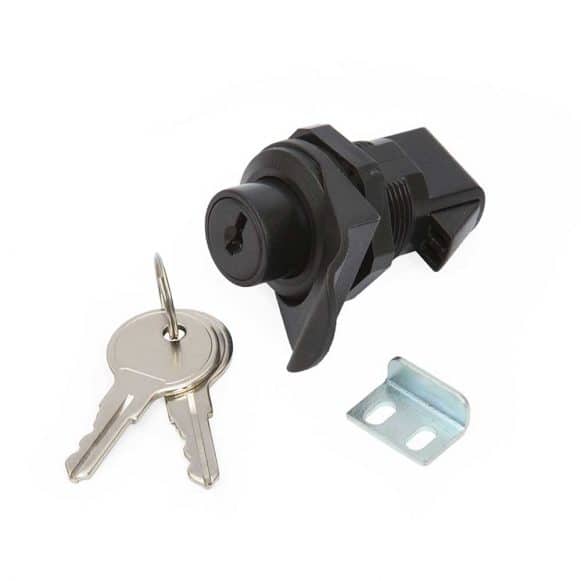

These are manufactured from lightweight and strong polycarbonate. Each item includes 2 x keys, a catcher and handle pull.
Material
Polycarbonate
Finish
Black
Mounting
Hex shaped screw down pressure plate.
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
