Part No. | A | B | C | D | E | F | G | H | I | J | Thread size | Key type | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15895T | 22 | 20 | 20 | 13 | 16 | 9 | 14 | 25 | 4.5 | 6.6 | M16 x 1 | Slot | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
15931S | 22 | 20 | 20 | 13 | 16 | 9 | 14 | 25 | 4.5 | 6.6 | M16 x 1 | 6mm Sq Key | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |

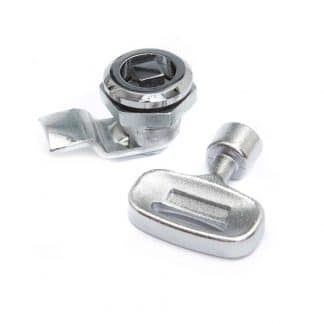

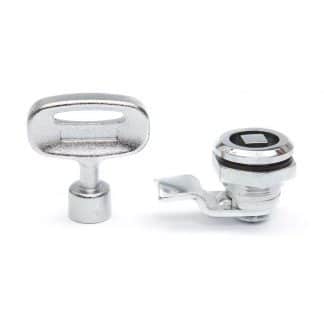

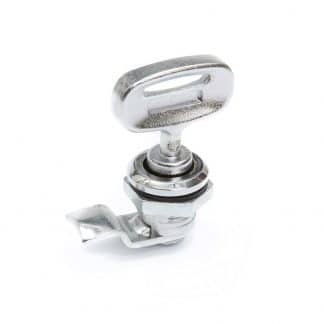

Quarter Turn Camlock Latch with Square or Slot Key
Description
The Model 08 ML is a zinc plated steel cam action enclosure or cabinet lock with a 90° quarter turn locking mechanism. These locks are widely used on doors, drawers and access panels on various enclosures and cabinets. An IP54 rating provides protection from dust and splashing water.
We offer two key variations; firstly with a slot key type and secondly a square key type.
We also supply a quarter turn cam locks with slot, double bit and try-lock key types, and also standard cut key types.
Material
Die cast zinc plated steel
IP rating
IP54: Dust protected / Protected against splashing water
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
