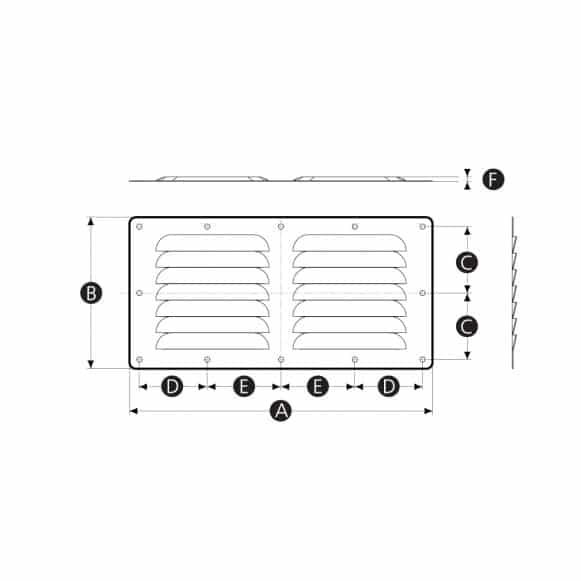

| Part No. | A | B | C | D | E | F | Hole Size (mm) | Free Space (cu mm) | Flow at 1 Pascal Diff Pressure (mm3/sec) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15426Z | 230 | 115 | 50.5 | 51.5 | 56 | 3.5 | 4 | 3530 | 2800 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

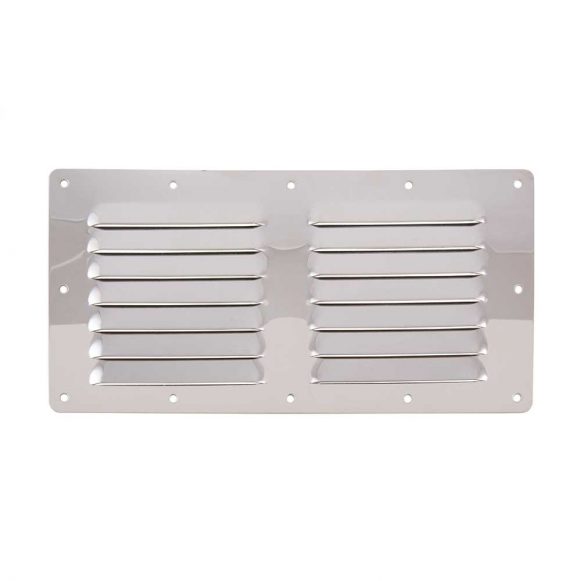

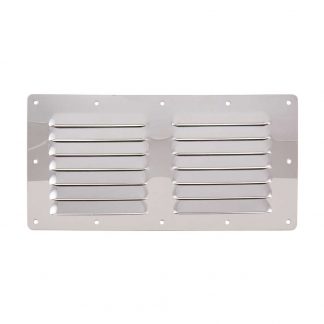

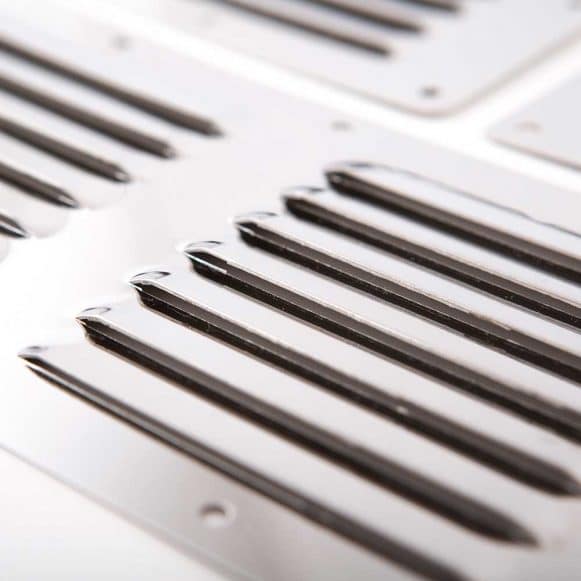

Stainless Steel Double Metal Vent
Description
These Model 01 MV double stainless steel vents are lightweight and strong. The electrolytic polished stainless 304 gives excellent resistance to corrosion.
We also stock single stainless steel vents in a variety of lengths.
Material
Stainless steel 304
Finish
Electrolytic polish
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65Related products
-
