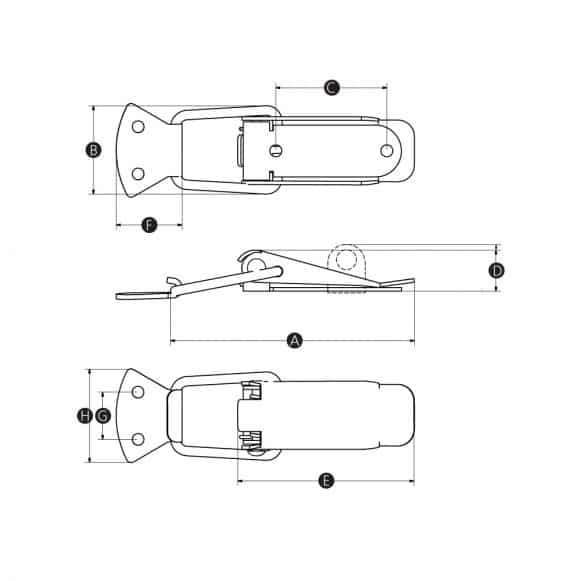

| Part No. | A | B | C | D | E | F | G | H | Hole Size (mm) | Max Load (kg) | Lockable | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16068U | 105 | 37 | 47 | 17 | 75 | 28 | 20 | 40 | 5 | 60 | No | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16070X | 90 | 36 | 41 | 14 | 65 | 26 | 17 | 38 | 5 | 60 | No | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16072P | 75 | 34 | 33 | 12 | 56 | 20 | 14 | 30 | 4 | 50 | No | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16074S | 57 | 23 | 25 | 9 | 44 | 20 | 13 | 25 | 4 | 40 | No | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16069Q | 105 | 39 | 47 | 20 | 75 | 28 | 20 | 40 | 5 | 60 | Yes | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16071T | 90 | 36 | 41 | 17 | 65 | 26 | 17 | 38 | 5 | 60 | Yes | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16073W | 75 | 34 | 33 | 13 | 56 | 20 | 14 | 30 | 4 | 50 | Yes | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16075Z | 57 | 23 | 25 | 11 | 44 | 20 | 13 | 25 | 4 | 40 | Yes | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

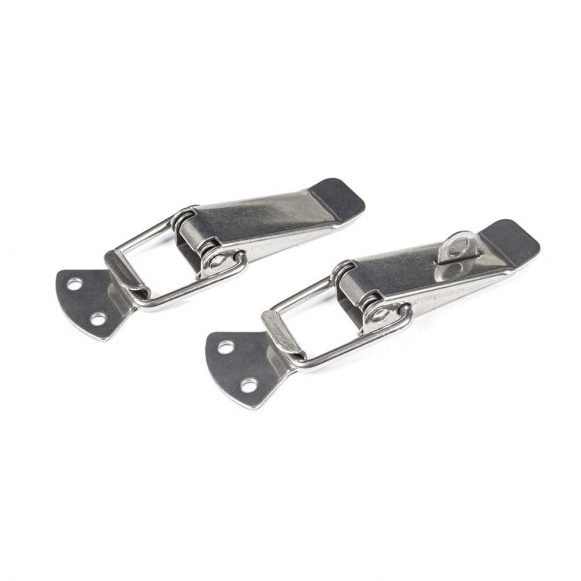

Stainless Steel Sprung Toggle Latch
Description

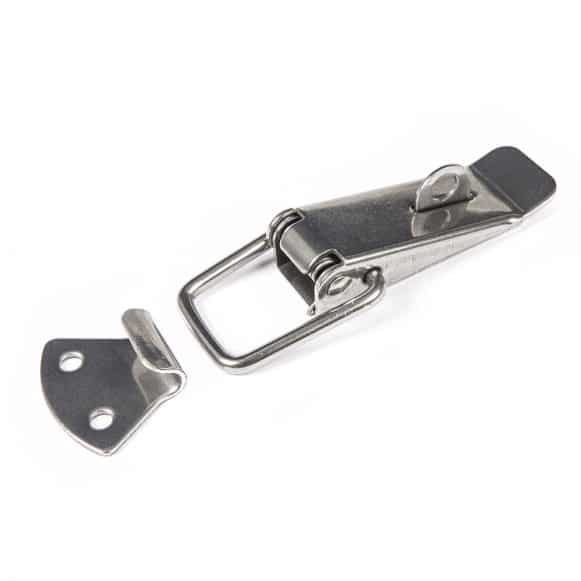

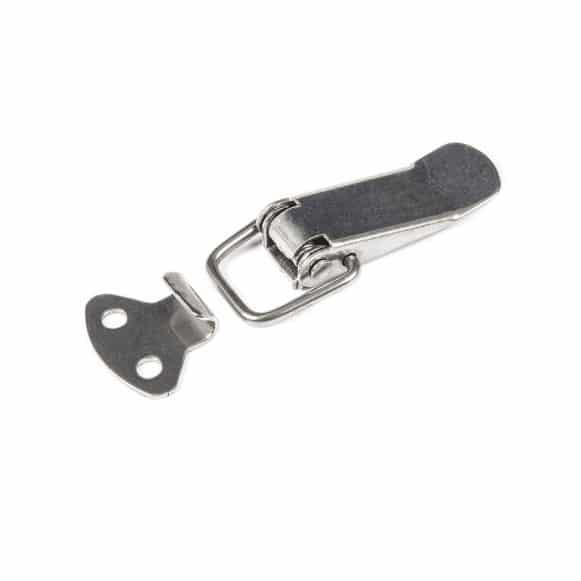

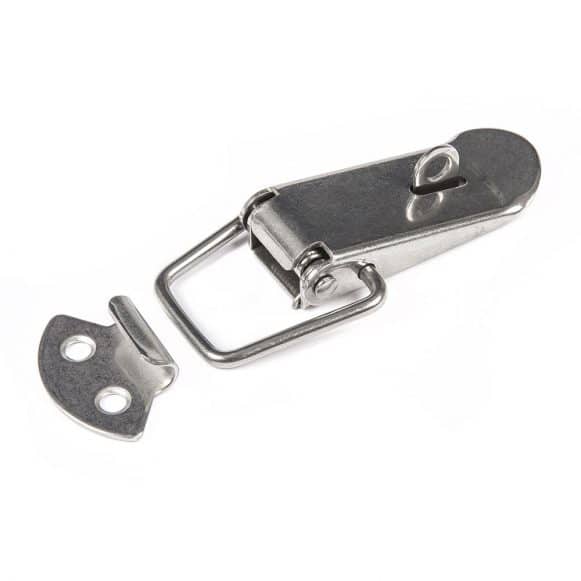

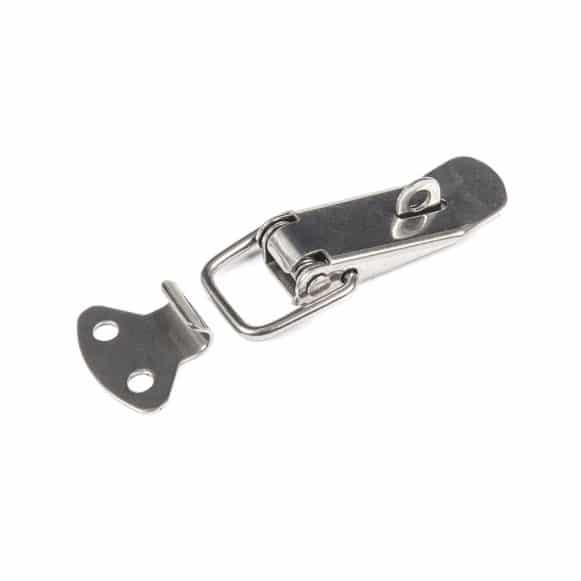

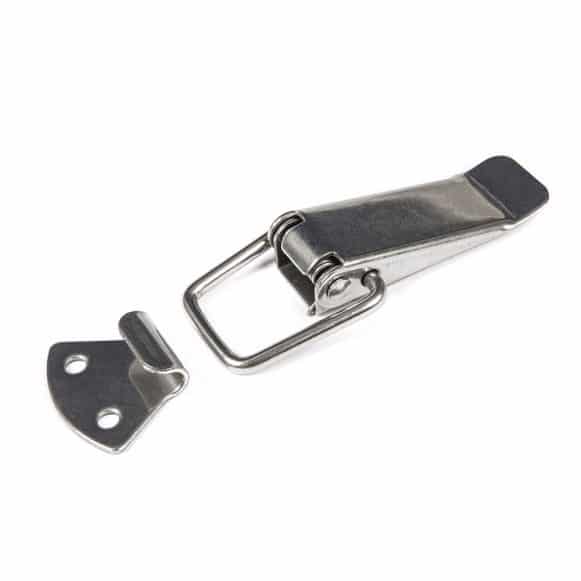

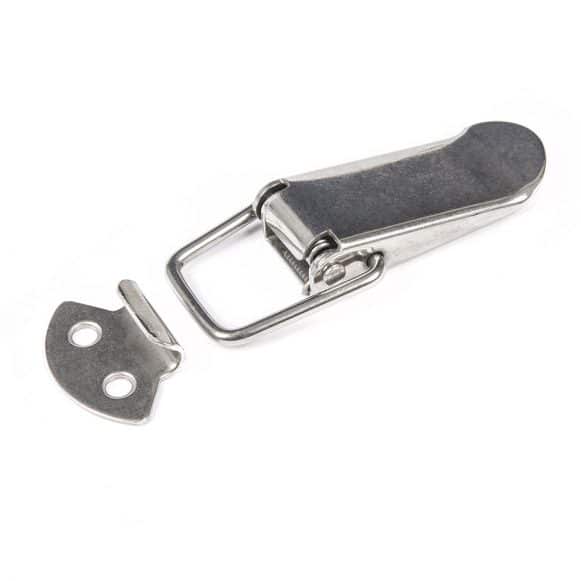

Our Model 03 ML is a stainless steel sprung toggle latch complete with catch plate and with or without an integral padlock mounting hole. These stainless steel rigid claw fasteners are strong, durable and offer a high level of resistance to corrosion, solvents, oils, grease and other chemical agents.

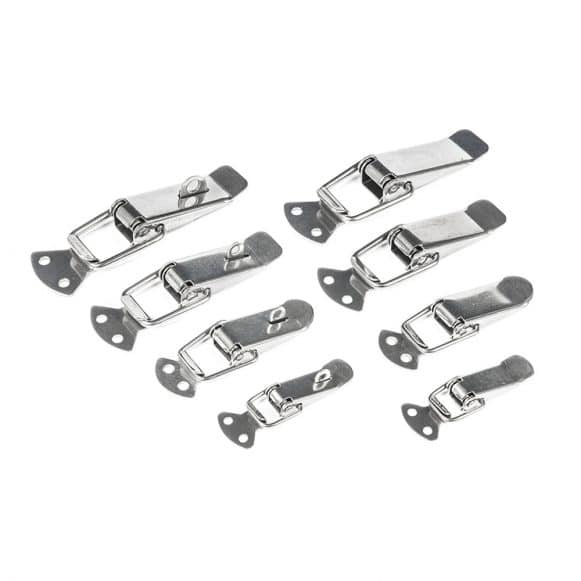

We supply these in a wide range of sizes and load capacities, from 57mm in length up to 105mm and with corresponding load ratings from 400N to 600N.
These metal toggle latches are commonly used on enclosures, cases, containers, boxes and safety guards on various types of plant equipment and industrial machinery.
We also offer adjustable metal toggle latches, a range of spring claw metal toggle latches and a series of variable spring claw metal toggle latches.
Material
Stainless steel 304
Includes
Catch plate
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
