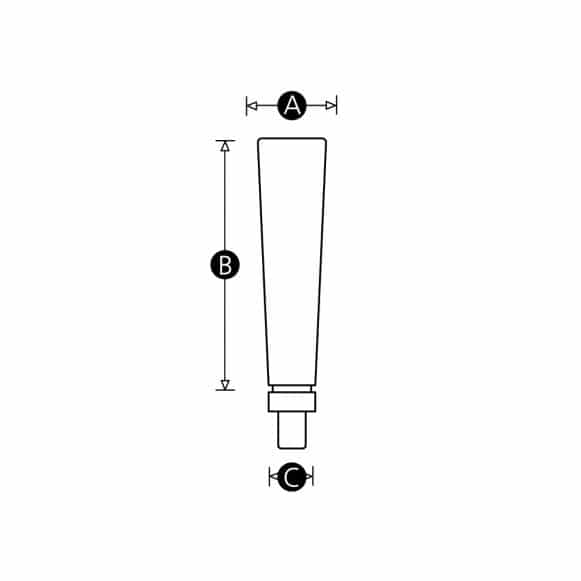

Part No. | A | B | C | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|
14274Y | 21 | 83 | 10 | M8 | 12 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & delivery |
14275U | 25 | 104 | 12 | M10 | 15 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & delivery |
14276Q | 25 | 120 | 16 | M12 | 23 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & delivery |

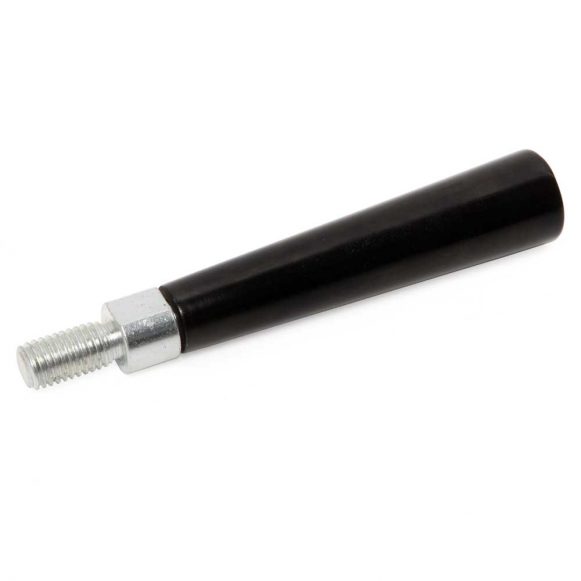

Duroplast Revolving Handle
Description
This fixed revolving handle consists of a gloss black duroplast (thermoset) handle and zinc plated steel thread and integral revolving mechanism with diametrically opposed flats for straightforward installation with a spanner or wrench. The handle rotates around a central axis, making it ideal for fitting to wheels and cranks.
The duroplast and zinc plated steel construction is strong, durable and resistant to high temperatures, solvents, oils, grease and other chemical agents.
We offer three revolving handle lengths, complete with an M8 x 12mm, M10 x 15mm or M12 x 23mm thread.
Material
Duroplast
Standard colour
Black
Finish
Gloss
Thread material
Zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
