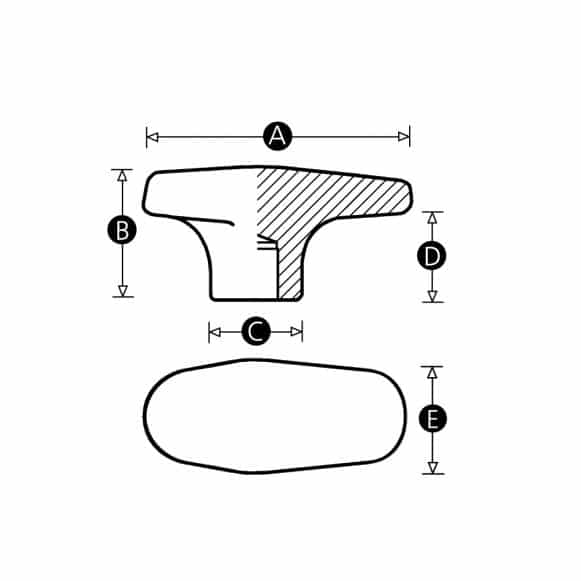

Part No. | A | B | C | D | E | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
7473V | 60 | 30 | 20 | 18 | 25 | M6 | CAD | Stocked | Minimum order quantity 5 pieces | Typical lead time is 2 days | Confirm price & availability |
2553P | 60 | 30 | 20 | 18 | 25 | M8 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
1073U | 80 | 30 | 22 | 18 | 30 | M8 | CAD | Stocked | Minimum order quantity 5 pieces | Typical lead time is 2 days | Confirm price & availability |
1070V | 80 | 30 | 22 | 18 | 30 | M10 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
3119X | 100 | 35 | 25 | 20 | 32 | M10 | CAD | Stocked | Minimum order quantity 5 pieces | Typical lead time is 2 days | Confirm price & availability |
1080P | 100 | 35 | 25 | 20 | 32 | M12 | CAD | Made to order | Minimum order quantity 300 pieces | Typical lead time is 16 weeks | Confirm price & availability |

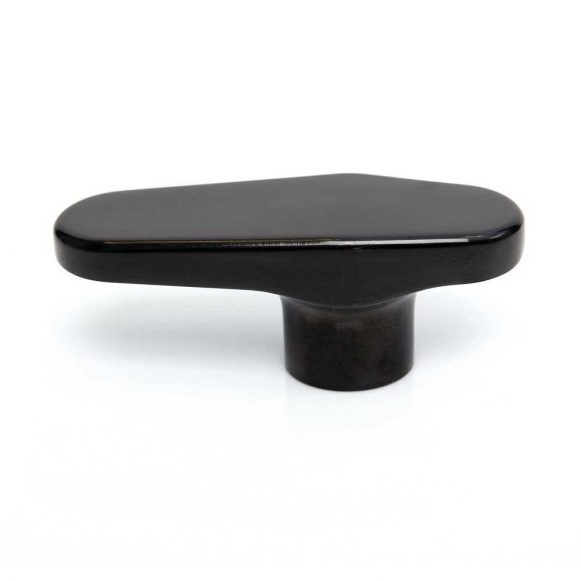

Female Duroplast Offset Tee Handle
Description

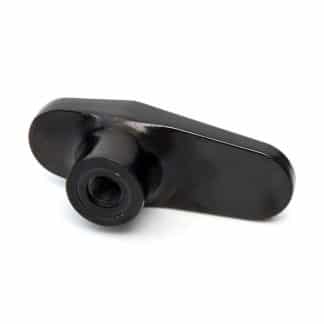

This duroplast tee handle has a moulded metric thread which is offset from the centre of the handle. This lends itself to certain ergonomic challenges and adjustment procedures.
The duroplast construction is strong, durable and resistant to high temperatures, solvents, oils, grease and other chemical agents.
Material
Duroplast
Standard colour
Black
Finish
Gloss
Thread
Moulded thread
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
