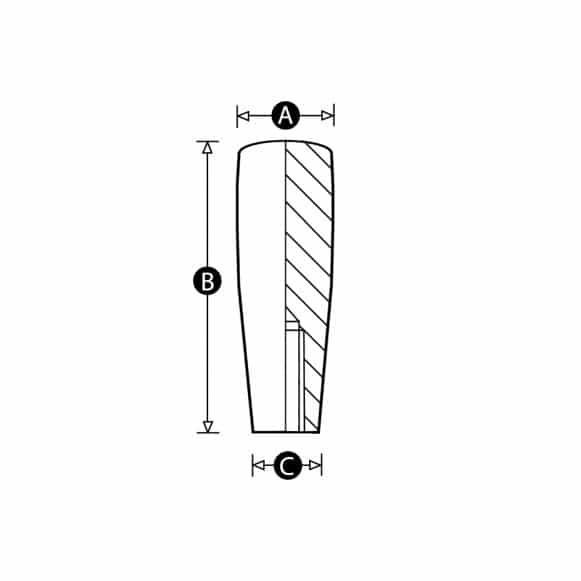

| Part No. | A | B | C | Thread size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|
| 9123V | 18 | 40 | 15 | M6 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 9122Z | 21 | 50 | 17 | M8 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 9121S | 23 | 65 | 19 | M10 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 9120W | 26 | 80 | 21 | M12 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 13157W | 28 | 90 | 22 | M8 | CAD | Stocked | Minimum order quantity 6 pieces | Typical lead time is 2 days | Confirm price & availability |
| 9119P | 28 | 90 | 22 | M12 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |

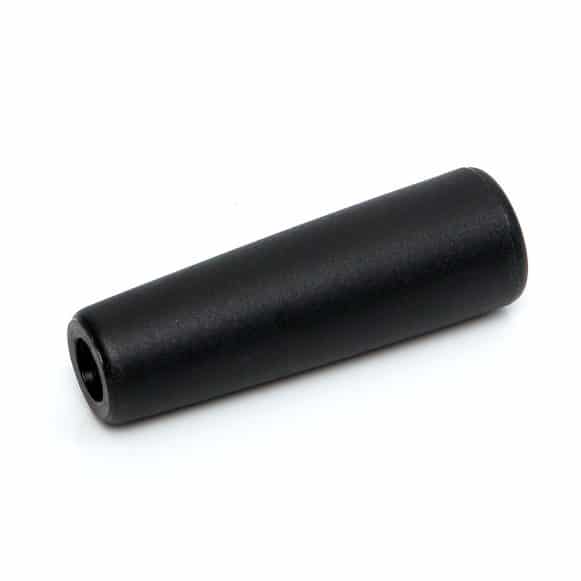

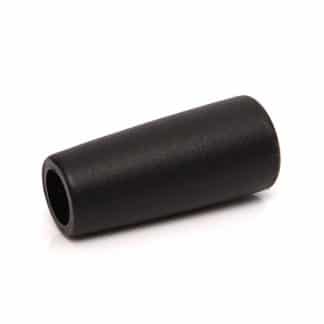

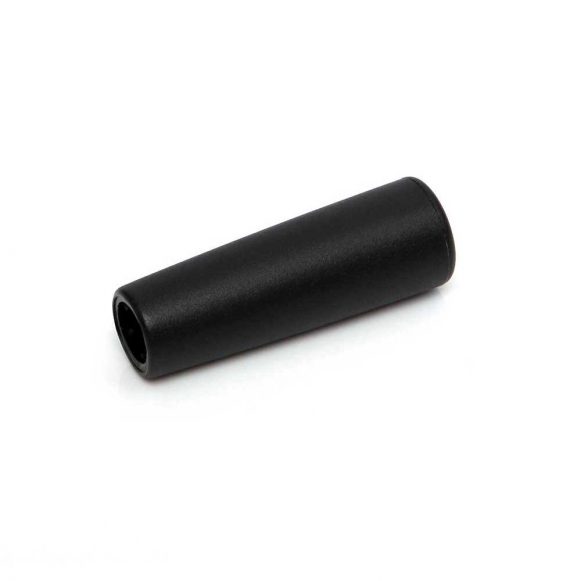

Female Thermoplastic Handle
Description
These fixed, threaded, non-rotating thermoplastic handles are also described as cylindrical knobs. They are frequently used in place of ball knobs on operating levers and handles.
The Model 05F PH is a comfortable, modern design with a tough matt finish and moulded thread. The high impact resistant thermoplastic construction is strong, durable and resistant to solvents, oils, grease and other chemical agents.

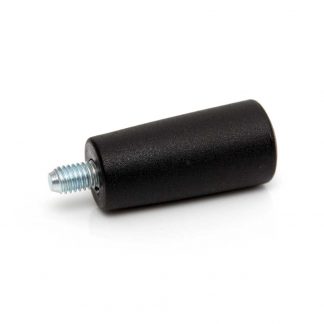

We also manufacture these handles with a ‘knock-on/press-on’, self fixing thread and a male thread.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Female thread
Moulded
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
