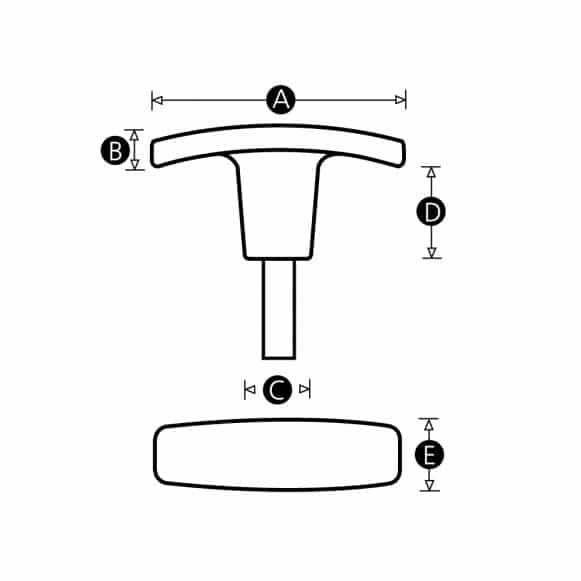

Part No. | A | B | C | D | E | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|
8515W | 40 | 10 | 13 | 20 | 13 | M5 | 15 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
5382P | 50 | 7 | 14 | 16 | 15 | M5 | 15 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
5383S | 50 | 7 | 14 | 16 | 15 | M5 | 20 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
5384V | 60 | 9 | 16 | 23 | 18 | M6 | 20 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
5385Y | 60 | 9 | 16 | 23 | 18 | M6 | 25 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
5386Q | 71 | 13 | 20 | 22 | 19 | M8 | 20 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
5387T | 71 | 13 | 20 | 22 | 19 | M8 | 30 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
8592W | 71 | 13 | 20 | 22 | 19 | M10 | 20 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
8593S | 71 | 13 | 20 | 22 | 19 | M10 | 30 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
8942T | 80 | 14 | 26 | 26 | 27 | M10 | 30 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
8939U | 80 | 14 | 26 | 26 | 27 | M12 | 40 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |

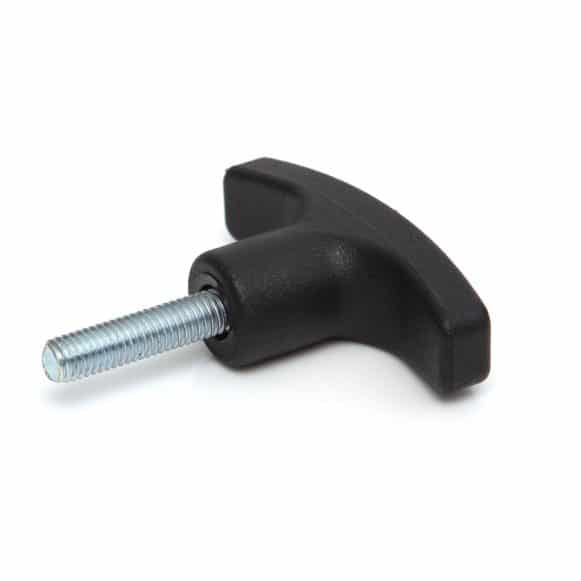

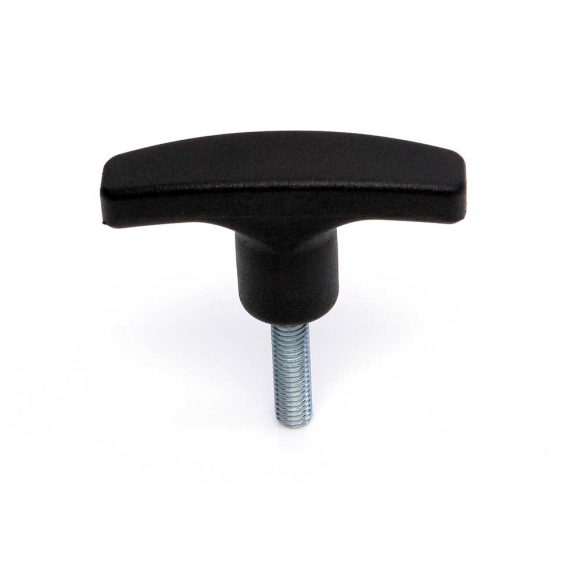

Male Thermoplastic T-Handle
Description
Our Model 01M PH is a male threaded T-Handle (or Tee Handle, or T-Grip). These T-Handles provide an ergonomic handle for manual pulling, lifting or clamping. They are typically used where a high force is required as the ‘T’ shape provides excellent grip.
The high impact resistant thermoplastic and zinc plated steel construction is strong, durable and resistant to solvents, oils, grease and other chemical agents.
We also supply this T-Handle with a female thread.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Male thread material
Zinc plated steel. Stainless steel available on application (MOQs apply).
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
