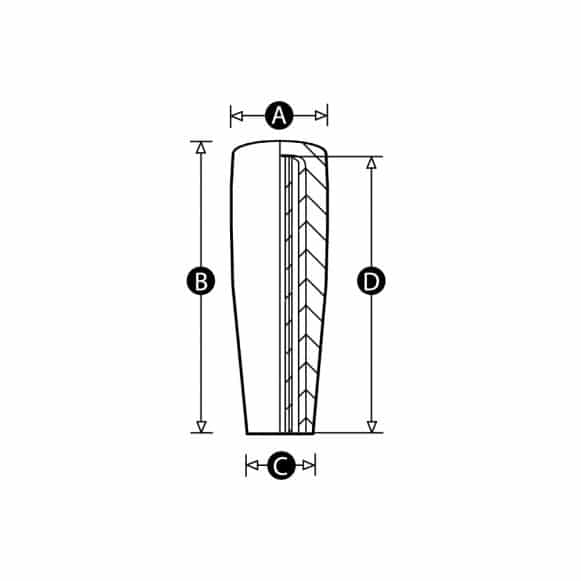

| Part No. | A | B | C | D | To fit shaft diam (H9)mm | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|
| 9133Z | 18 | 40 | 15 | 37 | 8 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 9132S | 21 | 50 | 17 | 46 | 10 | CAD | Stocked | Minimum order quantity 50 pieces | Typical lead time is 2 days | Confirm price & availability |
| 9131W | 23 | 65 | 19 | 61 | 10 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 9130P | 26 | 80 | 21 | 75 | 12 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 9129T | 28 | 90 | 22 | 85 | 16 | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |

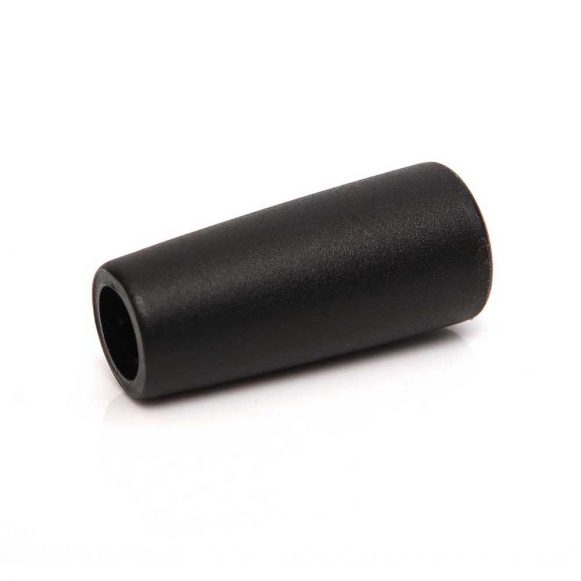

Self Fixing Thermoplastic Handle
Description
These fixed, threaded, non-rotating thermoplastic handles could also be described as cylindrical knobs. They are frequently used in place of ball knobs on operating levers and handles.
The Model 05SF PH is a comfortable, modern design with a tough matt finish and moulded bore to fit 8, 10, 12 or 16mm shafts to H9 tolerance. To mount, a gentle tap with a soft hammer will be sufficient to drive the knob on to the shaft.
The high impact resistant thermoplastic is strong, durable and resistant to solvents, oils, grease and other chemical agents.
We also manufacture these handles with a female thread and a male thread.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
