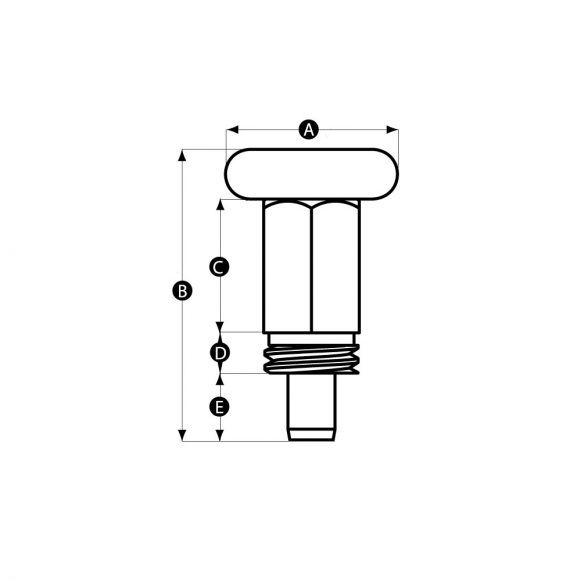

Part No. | A | B | C | D | E | Thread Size | Plunger Diameter | Body Material | Rest Position | Initiating Force (N) | Force for Full Retraction (N) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15216S | 18 | 30 | 14 | 5.5 | 7 | M10x1.0 | 6 | Zinc plated steel | No | 5 | 16 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
15215W | 18 | 30 | 14 | 5.5 | 7 | M10x1.0 | 6 | Zinc plated steel | Yes | 5 | 16 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
15214P | 24 | 39 | 19 | 8 | 7 | M12x1.75 | 7 | Zinc plated steel | No | 5 | 16 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
15213T | 24 | 39 | 19 | 8 | 7 | M12x1.75 | 7 | Zinc plated steel | Yes | 5 | 16 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
15218V | 18 | 30 | 14 | 5.5 | 7 | M10x1.0 | 6 | Stainless steel | Yes | 4 | 10 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
15217Z | 18 | 30 | 14 | 5.5 | 7 | M10x1.0 | 6 | Stainless steel | No | 4 | 10 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |

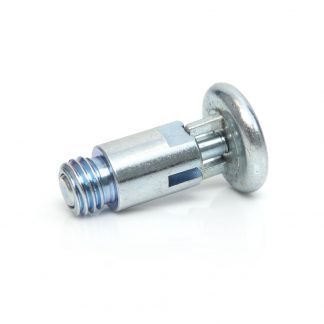

All-Metal Spring Loaded Index Bolt
Description
The Model 07 IP is a compact and economical index bolt. This type of index plunger is suitable for a wide range of positioning, locking and locating applications including shop fitting, point of sale and work holding.
The all-metal body has either M10 or M12 threads, providing a convenient and secure fitment. Some variants come with a rest position to lock the index bolt pin in the retracted position.
Two material choices are available; a zinc plated steel body and pin, and a die cast zinc head or stainless steel body, pin, spring and die cast zinc head. Both materials are hard wearing however the stainless steel configuration will provide better resistance to corrosion.
Material
Zinc plated steel or stainless steel
Head material
Die cast zinc
Spring material
Stainless steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
