Model 04 CP

Cam Action Indexing Plunger

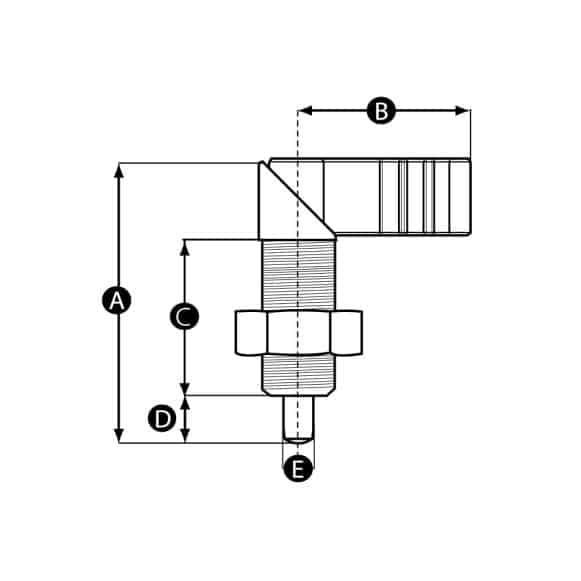

Technical drawing of cam action index plunger in burnished steel

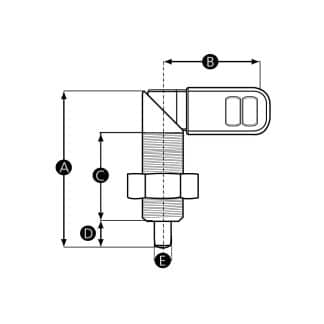

Technical drawing of cam action index plunger in stainless steel
Technical drawing of cam action index plunger in burnished steel
Technical drawing of cam action index plunger in stainless steel

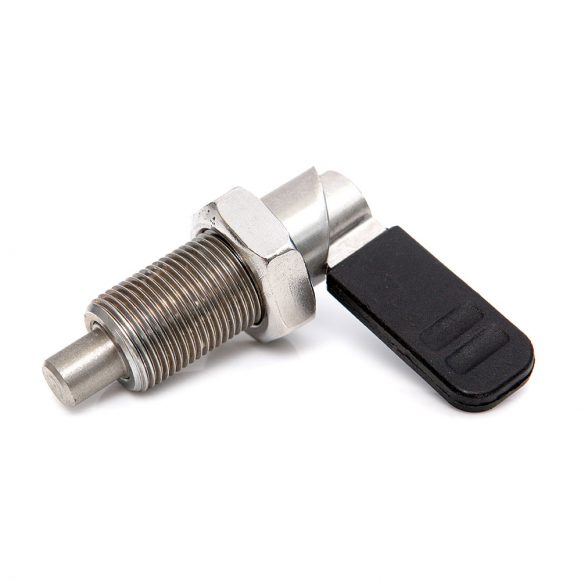

Stainless Steel Cam Action Index Plunger
Burnished steel cam action indexing plunger
Stainless Steel Cam Action Index Plunger
Burnished steel cam action indexing plunger

Description

The Model 04 CP cam action indexing plunger is available in either stainless steel with a black plastic grip or blackened steel without grip. Both configurations come with a locking nut.

Turn the cam lever by 180° to allow the plunger pin to be fully retracted and locked in place. Twisting the lever again disengages the lock and a spring mechanism automatically returns the pin to the extended position.

The stainless steel configuration is recommended where the plunger is used outdoors, regularly exposed to water, or placed in hygiene sensitive environments such as catering or medical applications.

Material:

Blackened steel or stainless steel

Includes:

Comes as standard with locking nut. Stainless steel body comes complete with black plastic cap, blackened steel without cap.

Download datasheet

This product complies with:

RoHS REACH Conflict Minerals California Prop 65
Part No.ABCDEThread SizeBody MaterialPin MaterialIncludes CapInitiating Force (N)Force for Full Retraction (N)Download CADStocked statusM.O.Q.Typical lead timePrice & availability
15714R47323988M12 x 1.5Blackened steelBlackened steelYes413CADStockedMinimum order is 1 pieceTypical lead time is 2 daysConfirm price & availability
15917T47323988M12 x 1.5Blackened steelBlackened steelNo413CADStockedMinimum order is 1 pieceTypical lead time is 2 daysConfirm price & availability
11788U693757128M20x1.5Blackened steelBlackened steelNo935CADStockedMinimum order is 1 pieceTypical lead time is 2 daysConfirm price & availability
11786R6937571210M20x1.5Blackened steelBlackened steelNo935CADStockedMinimum order is 1 pieceTypical lead time is 2 daysConfirm price & availability
11787Y6937571212M20x1.5Blackened steelBlackened steelNo935CADStockedMinimum order is 1 pieceTypical lead time is 2 daysConfirm price & availability
11794S695257128M20x1.5Stainless steelStainless steelYes835CADStockedMinimum order is 1 pieceTypical lead time is 2 daysConfirm price & availability
11795Z6952571210M20x1.5Stainless steelStainless steelYes535CADStockedMinimum order is 1 pieceTypical lead time is 2 daysConfirm price & availability
11796V6952571212M20x1.5Stainless steelStainless steelYes735CADStockedMinimum order is 1 pieceTypical lead time is 2 daysConfirm price & availability
