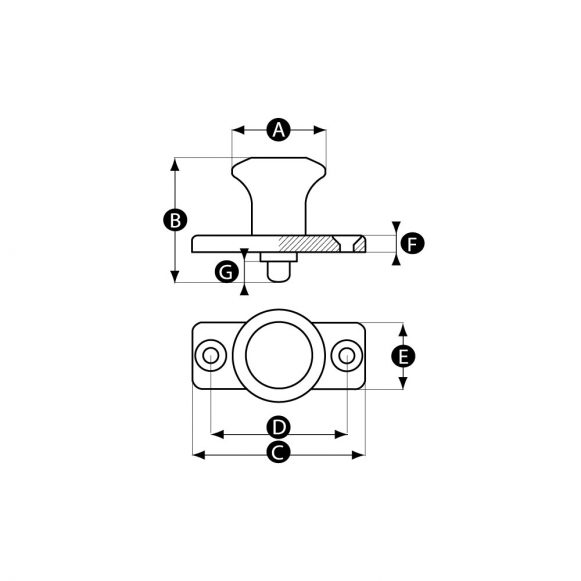

| Part No. | A | B | C | D | E | F | G | Plunger Diameter | Rest Position | Initiating Force (N) | Force for Full Retraction (N) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11819R | 25 | 37 | 40 | 30 | 18 | 4.5 | 6 | 6 | No | 16 | 37 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 11823X | 31 | 44 | 46 | 34 | 20 | 5.5 | 8 | 8 | No | 8 | 27 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 11820Y | 25 | 37 | 40 | 30 | 18 | 4.5 | 6 | 6 | Yes | 6 | 20 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 11824T | 31 | 44 | 46 | 34 | 20 | 5.5 | 8 | 8 | Yes | 8 | 27 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
Index Plunger with Fixing Flange Plate & Rest Position
Description

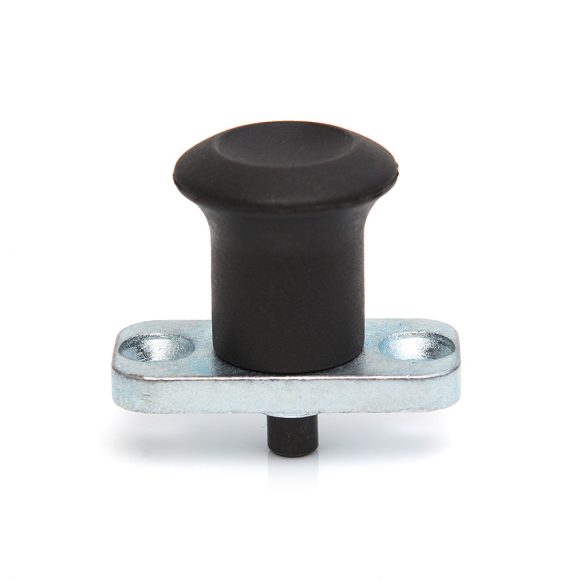

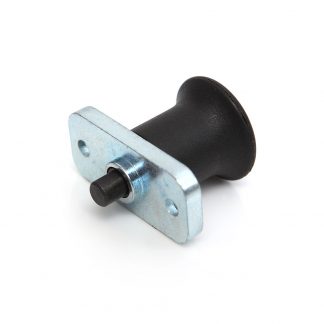

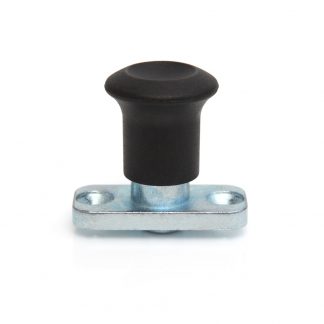

Our Model 03 IP comprises a spring loaded index plunger with plastic knob and zinc plated steel flange plate. The flat fixing plate with countersunk holes is particularly suited to mounting on a thin, flat surface such as a panel or enclosure.
Some variations include an integral 90° rest position (see table below). The rest position is engaged by rotating the head by 90°, leaving the pin in a retracted position.
These plungers are commonly used for locating, positioning, indexing and securing and allow for rapid adjustment on a variety of platforms, fixtures and tables.
Knob material
High impact resistant thermoplastic
Knob finish
Matt
Fixing plate material
Zinc plated diecast steel
Standard colour
Black knob
Options
Available with or without a 90° rest position.
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
