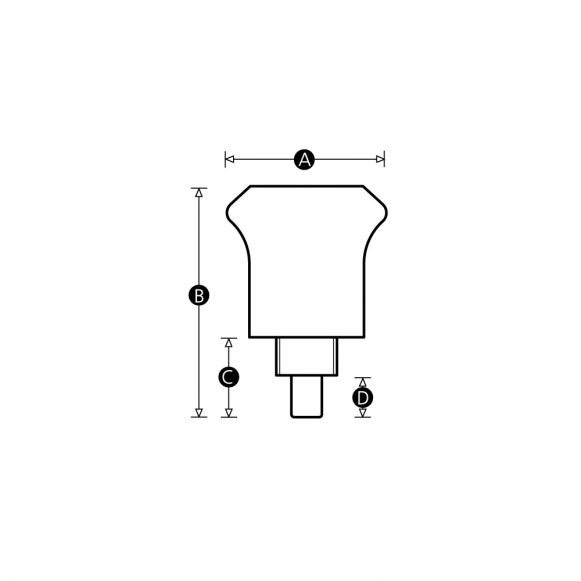

| Part No. | A | B | C | D | Thread Size | Thread length | Plunger Diameter | Rest Position | Locking Hex F to F | Initiating Force (N) | Force for Full Retraction (N) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15581V | 21 | 30 | 10 | 5 | M8 x 0.75 | 5 | 4 | No | 10 | 4 | 11 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15908W | 21 | 30 | 10 | 5 | M8 x 0.75 | 5 | 5 | No | 10 | 4 | 11 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15909S | 25 | 35 | 15 | 7 | M10 x 1.0 | 8 | 6 | No | 12 | 7 | 25 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15910Z | 25 | 35 | 15 | 7 | M10 x 1.0 | 8 | 7 | No | 12 | 7 | 25 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15911V | 21 | 30 | 10 | 5 | M8 x 0.75 | 5 | 4 | Yes | 10 | 4 | 11 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15912R | 21 | 30 | 10 | 5 | M8 x 0.75 | 5 | 5 | Yes | 10 | 4 | 11 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15913Y | 25 | 35 | 15 | 7 | M10 x 1.0 | 8 | 6 | Yes | 12 | 7 | 25 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
| 15914U | 25 | 35 | 15 | 7 | M10 x 1.0 | 8 | 7 | Yes | 12 | 7 | 25 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
Threaded Mini Indexing Plunger for Thin Walled Material
Description

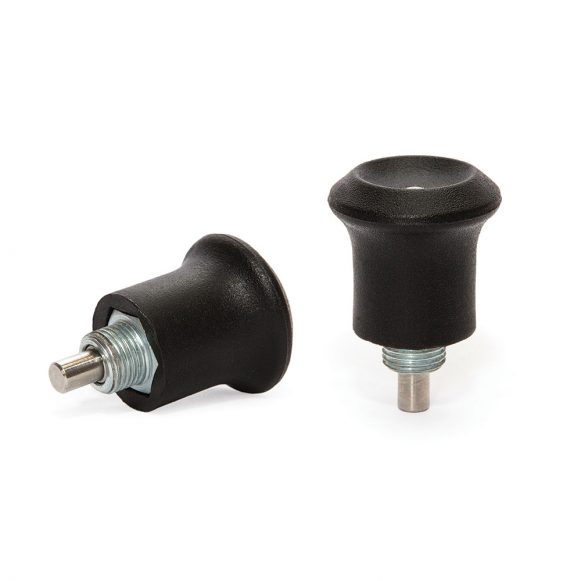

The Model 09 IP is a high quality mini indexing plunger specifically designed for mounting in thin walled sheet material. The combination of glass reinforced thermoplastic and stainless steel plunger pin and spring is lightweight and long lasting.
Installation is via an M8 or M10 thread in the plunger body (we also supply the Model 08 IP plunger which includes a screw-in locking sleeve).
Material
High impact resistant thermoplastic knob, zinc plated steel body, stainless steel pin, and stainless steel spring
Standard colour
Black knob
Usage
Available with or without rest position
