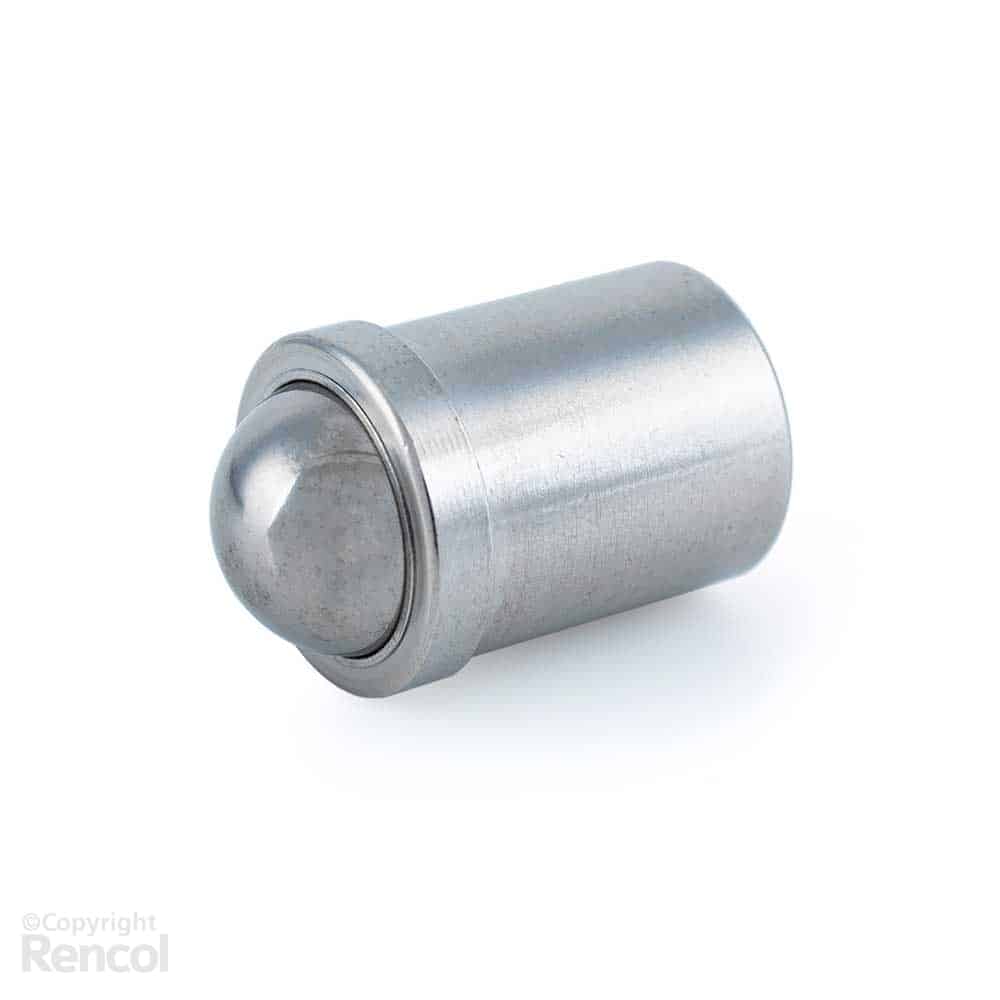

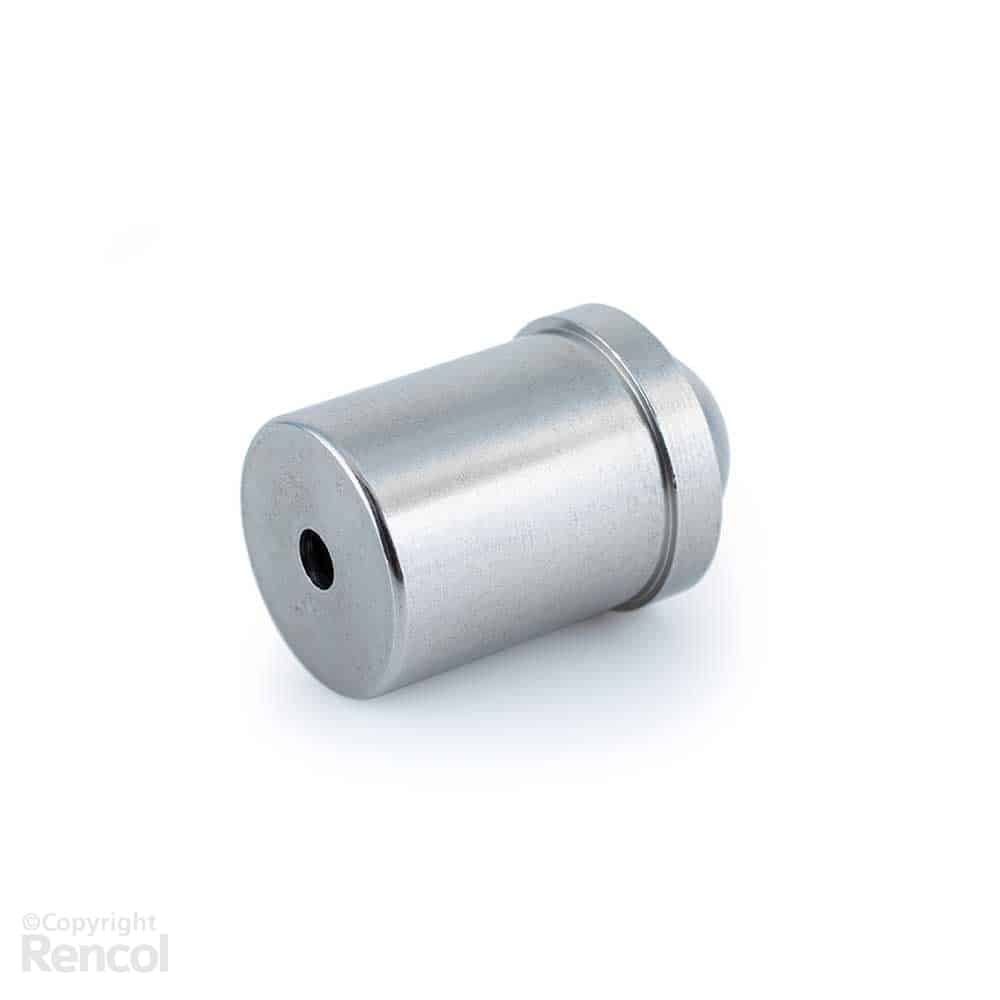

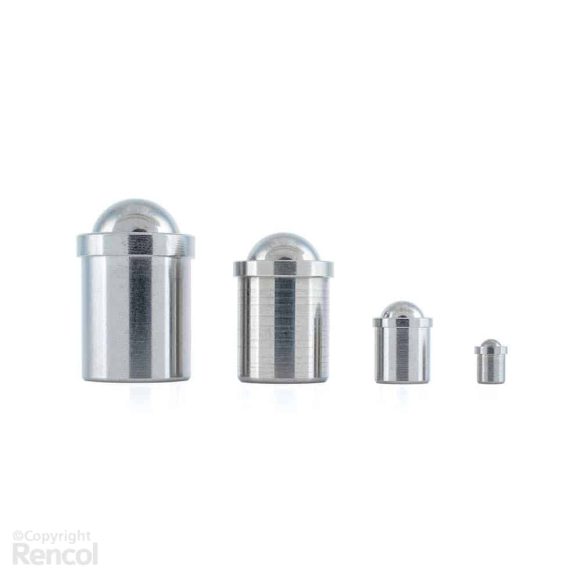

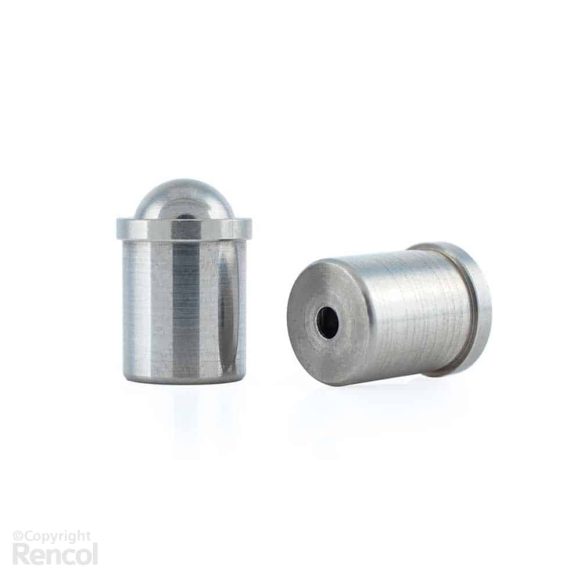

Spring Plunger, Stainless Steel & Acetal Plastic, Press-fit

Description

Our Model 10 IP spring plungers stand out as one the most versatile products in our range of standard components. Spring plungers are small, spring-loaded mechanical devices which are used as detents, for push-on and push-off applications, as ejectors in manufacturing equipment, for positioning and locating workpieces, as roller devices for conveyor equipment, and even as latches for securing panels and covers for electrical equipment.

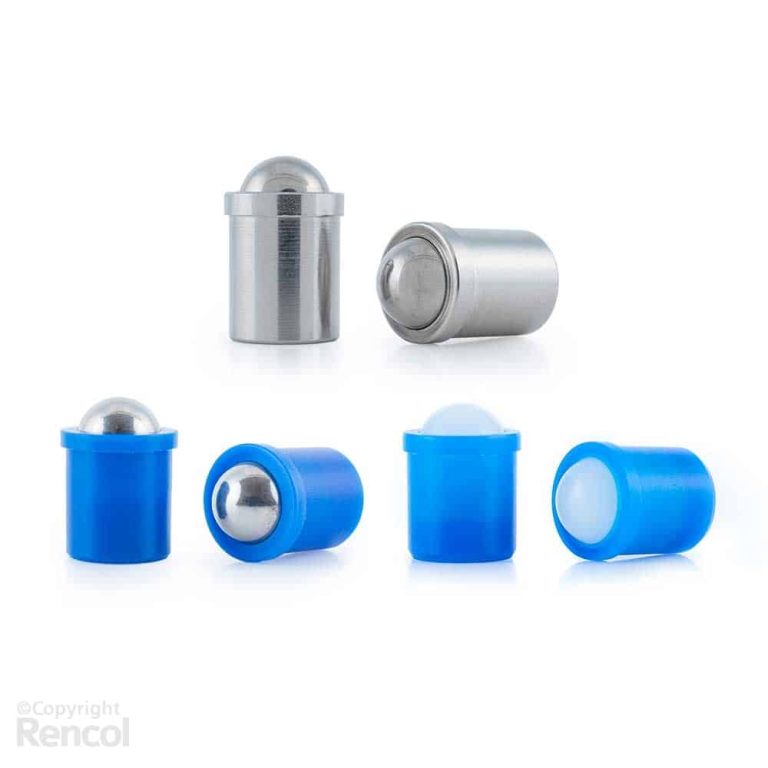

While our Model 06 IP is threaded and manufactured from steel or stainless steel, our Model 10 IP is available in three configurations, all with a smooth outer surface to allow a simple but robust push-fit installation.

All three configurations are manufactured with a stainless-steel internal spring for optimal strength, durability, and resistance to environmental contaminants.

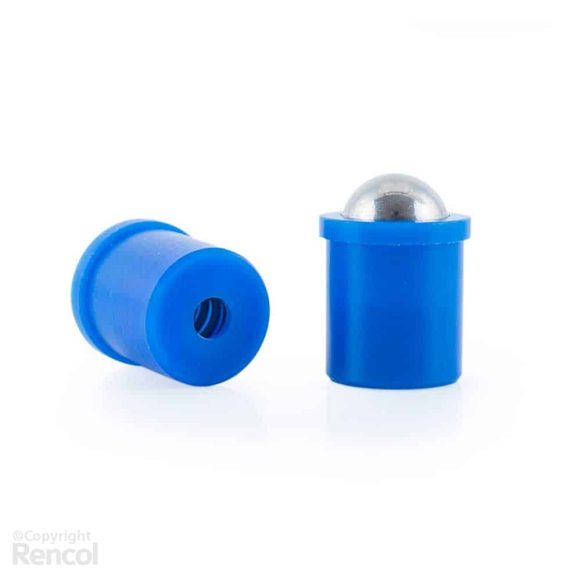

For maximum strength and durability, a stainless-steel body and ball is recommended, however for many applications a thermoplastic POM or Acetal polymer will offer a lower cost alternative while retaining high stiffness, low friction, and excellent dimensional stability. Our Acetal bodied spring plungers are available with an acetal or stainless steel ball.
