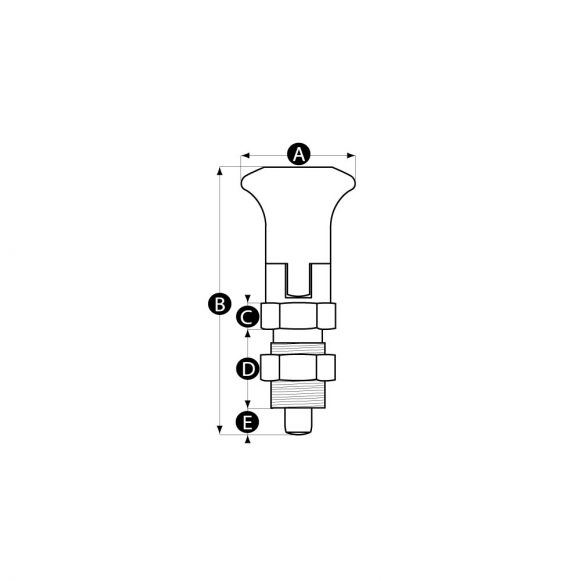

Part No. | A | B | C | D | E | Thread Size | Plunger Diameter | Body Material | Pin material | Initiating Force (N) | Force for Full Retraction (N) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
11817Z | 21 | 51 | 5 | 17 | 5 | M10*1.0 | 5 | Blackened steel | Blackened steel | 8 | 25 | CAD | Stocked | Minimum order Is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
11821U | 25 | 61 | 6 | 20 | 6 | M12*1.5 | 6 | Blackened steel | Blackened steel | 12 | 20 | CAD | Stocked | Minimum order Is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
11825P | 31 | 76 | 8 | 26 | 7 | M16*1.5 | 8 | Blackened steel | Blackened steel | 13 | 30 | CAD | Stocked | Minimum order Is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
11818V | 21 | 51 | 5 | 17 | 5 | M10*1.0 | 5 | Stainless steel | Stainless steel | 6 | 15 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
11822Q | 25 | 61 | 6 | 20 | 6 | M12*1.5 | 6 | Stainless steel | Stainless steel | 9 | 20 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |
11826W | 31 | 76 | 8 | 26 | 7 | M16*1.5 | 8 | Stainless steel | Stainless steel | 17 | 35 | CAD | Stocked | Minimum order is 5 pieces | Typical lead time is 2 days | Confirm price & availability |

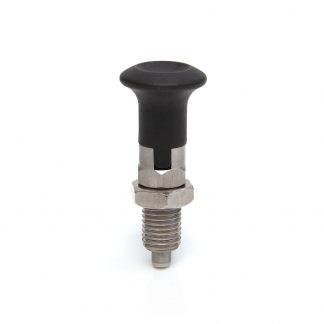

Spring Loaded Index Plunger with Locking Rest Position
Description

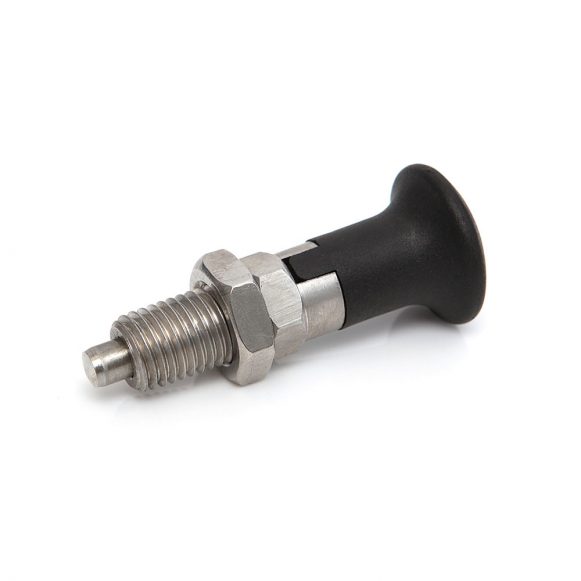

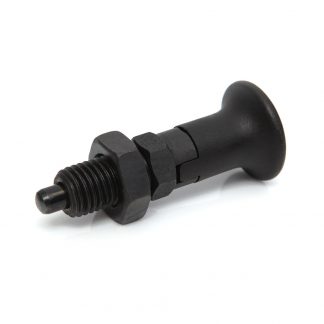

The Model 02 IP comprises a high impact resistant thermoplastic knob combined with either a blackened steel threaded body, steel spring and blackened steel fixing nut, or stainless steel threaded body, stainless steel spring and stainless steel fixing nut.
The top of the pull knob is recessed and flared which provides an ergonomic finger and thumb grip when retracting the plunger. A 90° locking rest position allows the plunger pin to be locked in either the extended or retracted position.
These spring loaded indexing plungers are heavy duty, long lasting and suitable for a wide range of locating, positioning and indexing applications. The stainless steel versions are recommended for outdoor use, where regularly exposed to water or placed in hygiene sensitive environments such as catering or medical applications.
Knob material
High impact resistant thermoplastic
Knob finish
Matt
Body material
Blackened steel or stainless steel
Standard colour
Black knob
Options
Comes as standard with 90° locking rest position in plunger body.
