Model 05 IP

Spring Loaded Index Plunger with Pull Ring

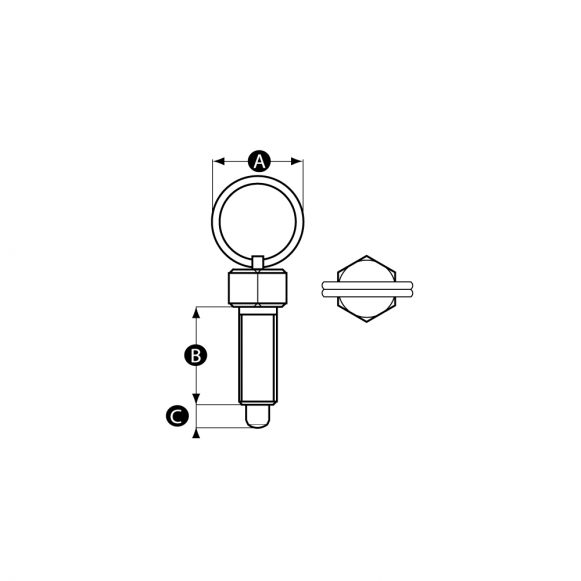

Pull ring indexing plunger technical drawing

Description

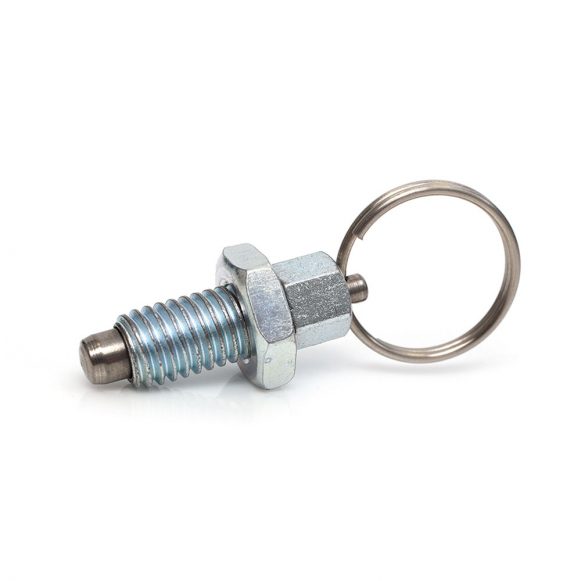

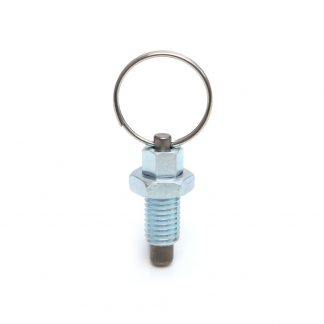

Our Model 05 IP features a stainless steel spring loaded locating pin enclosed in a zinc plated steel housing. The lift ring provides a convenient way to retract the plunger pin.

These indexing plungers are typically used where high precision and a locking mechanism are not required.

A locking nut is included as standard.

Material:

Zinc plated steel housing with stainless steel pin.

Includes:

Comes as standard with lift ring and locking nut.

Download datasheet

This product complies with:

RoHS REACH Conflict Minerals California Prop 65

Variations
Frequently asked questions

Part No.	A	B	C	Thread Size	Plunger Diameter	Initiating Force (N)	Force for Full Retraction (N)	Download CAD	Stocked status	M.O.Q.	Typical lead time	Price & availability
11827S	14	12	4	M6	4	5	14	CAD	Stocked	Minimum order is 10 pieces	Typical lead time is 2 days	Confirm price & availability
11828Z	18	16	5	M8	5	8	30	CAD	Stocked	Minimum order is 10 pieces	Typical lead time is 2 days	Confirm price & availability
11829V	24	20	6	M10	6	6	18	CAD	Stocked	Minimum order is 10 pieces	Typical lead time is 2 days	Confirm price & availability
11830R	30	24	8	M12	8	7	18	CAD	Stocked	Minimum order is 10 pieces	Typical lead time is 2 days	Confirm price & availability
