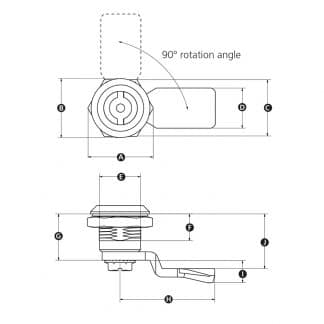

Part No. | A | B | C | D | E | F | G | H | I | J | Key Type | Material | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16145Y | 31 | 28 | 27 | 19 | 20 | 13 | 22 | 45 | 17 | 32 | Slot | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
16248Q | 31 | 28 | 27 | 19 | 20 | 13 | 22 | 45 | 11 | 26 | Double bit key | Die cast zinc | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
16249X | 31 | 28 | 27 | 19 | 20 | 13 | 22 | 45 | 2 | 13 | Double bit key | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
16250T | 31 | 28 | 27 | 19 | 20 | 13 | 22 | 45 | 5 | 20 | Double bit key | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
16251P | 31 | 28 | 27 | 19 | 20 | 13 | 22 | 45 | 11 | 26 | Double bit key | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
16252W | 31 | 28 | 27 | 19 | 20 | 13 | 22 | 45 | 17 | 32 | Double bit key | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
16253S | 31 | 28 | 27 | 19 | 20 | 13 | 22 | 45 | 10 | 26 | Tri-Lock Key | Die cast zinc | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
16254Z | 31 | 28 | 27 | 19 | 20 | 13 | 22 | 45 | 2 | 13 | Tri-Lock Key | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
16255V | 31 | 28 | 27 | 19 | 20 | 13 | 22 | 45 | 5 | 20 | Tri-Lock Key | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
16256R | 31 | 28 | 27 | 19 | 20 | 13 | 22 | 45 | 11 | 26 | Tri-Lock Key | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
16257Y | 31 | 28 | 27 | 19 | 20 | 13 | 22 | 45 | 16 | 32 | Tri-Lock Key | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |

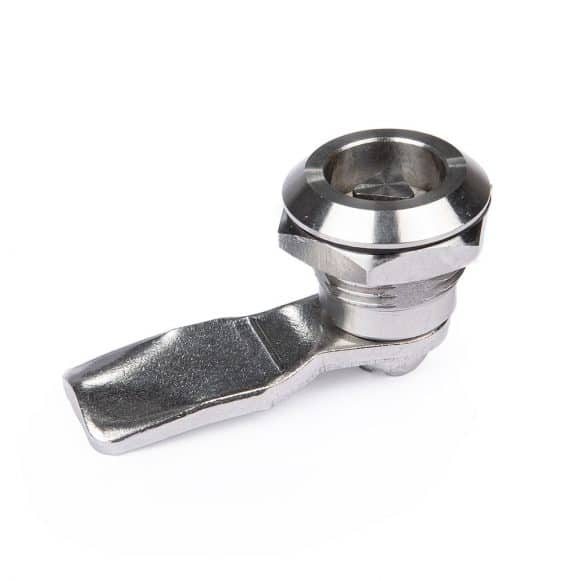

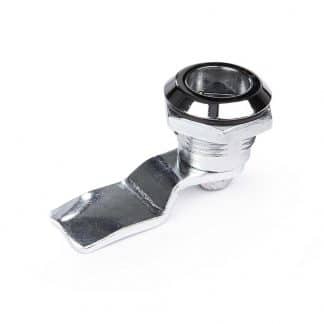

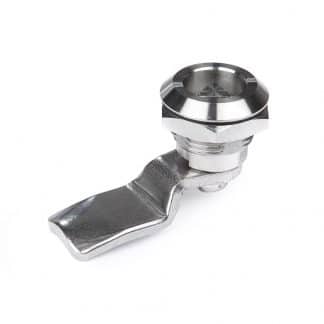

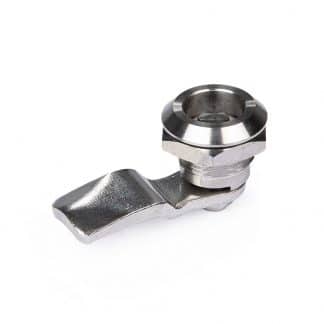

Zinc plated or Stainless Steel Quarter Turn Camlock Latch
Description
The Model 09 ML is quarter turn cam lock latch comprised of a cylindrical body with a cam lever arm. These latches allow the user to open a door or access panel by inserting the key and rotating 90 degrees. This directs the cam away from the contact point within the enclosure or cabinet and allows access.

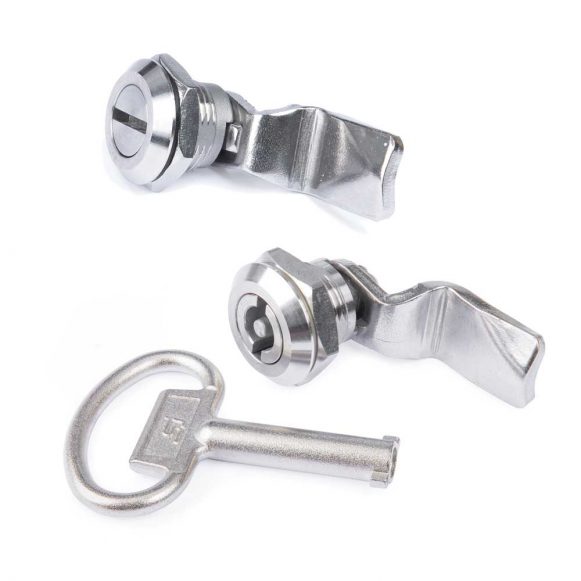

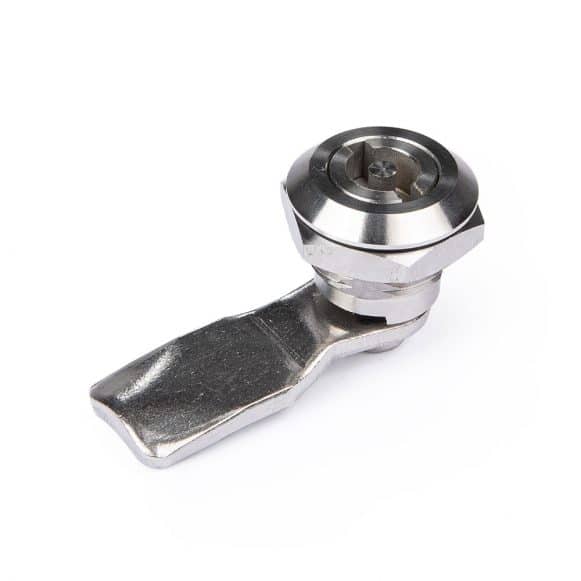

We supply a wide range of key and lock types; including a slot (compatible with a flat head screwdriver), double-bit and tri-lock. Locks that require either a double bit key or tri-lock key do not come with a key as standard. Some users require a single key for multiple locks while some users require a lock for each key so we supply keys separately. Our part numbers for the keys are 16260X (double bit key) and 16261T Tri-lock key).
We also offer both die cast zinc and stainless steel. All cam locks are have an IP54 rating, giving protection from dust and splashing water.
Material
Stainless steel 304 or chrome plated die cast zinc
IP rating
IP54: Dust protected / Protected against splashing water
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
