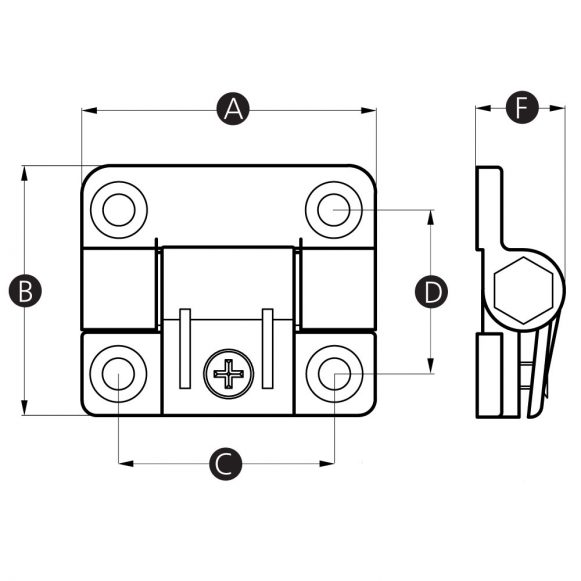

Part No. | A | B | C | D | F | Hole Size (mm) | Colour | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|
12824X | 43 | 37 | 32 | 25 | 12 | 4.2 | Black | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
10896Y | 43 | 37 | 32 | 25 | 12 | 4.2 | White | CAD | Stocked | Minimum order is 10 pieces | Typical lead time is 2 days | Confirm price & availability |
15058X | 65 | 56 | 48 | 36 | 19 | 6.8 | Black | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
15282S | 65 | 56 | 48 | 36 | 19 | 6.8 | White | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
Adjustable Torque Positioning Control Hinge
Description

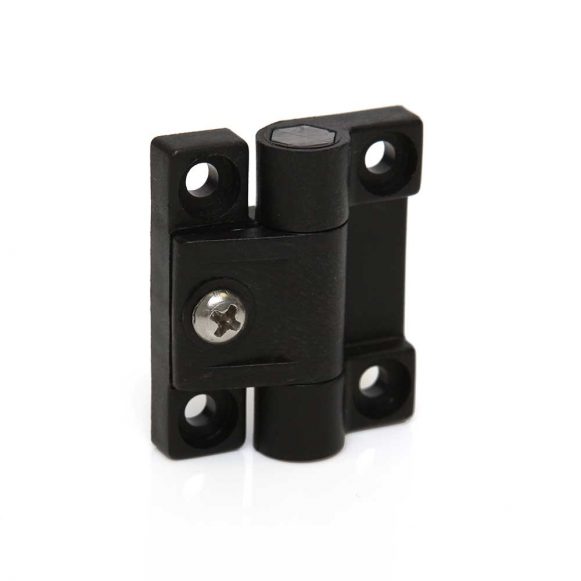

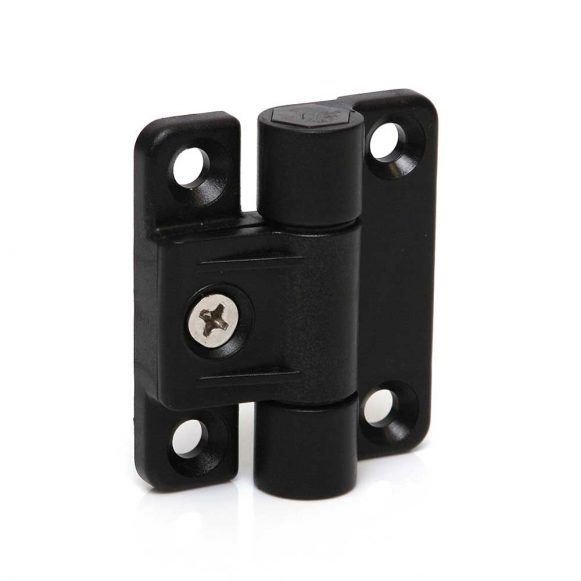

Our Model 01 HI is a light weight positioning control hinge with fully adjustable torque. An adjustment screw ensures complete control over the frictional holding torque. Adjusting the screw changes the level of resistance required to open and close the hinge and also allows lids, doors and panels to be held open at a predetermined and user defined position. Once adjusted, the positioning torque stays consistent throughout the full range of motion and will hold doors steady in any position.
The acetal polymer construction, plus zinc plated screw and polycarbonate pin ensure this hinge is both lightweight and strong.
We also offer a non-adjustable, constant torque positioning hinge.
Material
Acetal polymer (POM) with zinc plated steel countersunk screw.
Pin material
Polycarbonate
Colour

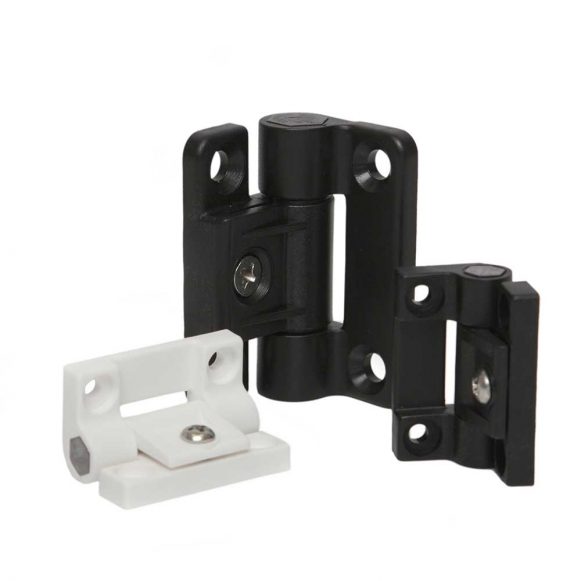

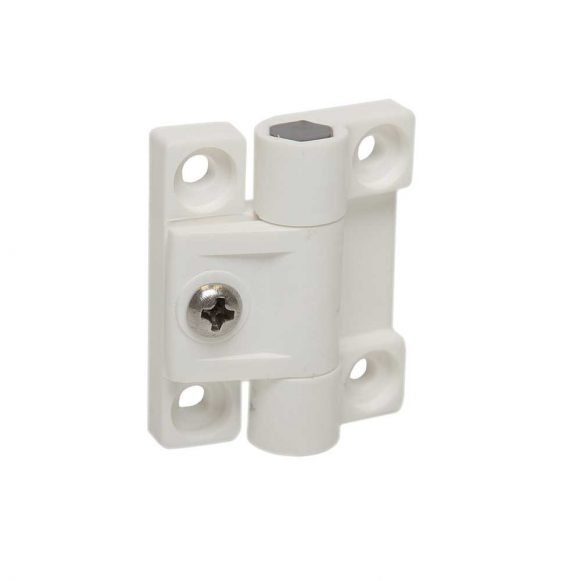

Black or white. Other RAL colours available (MOQs apply).
Download datasheetThis product complies with:
