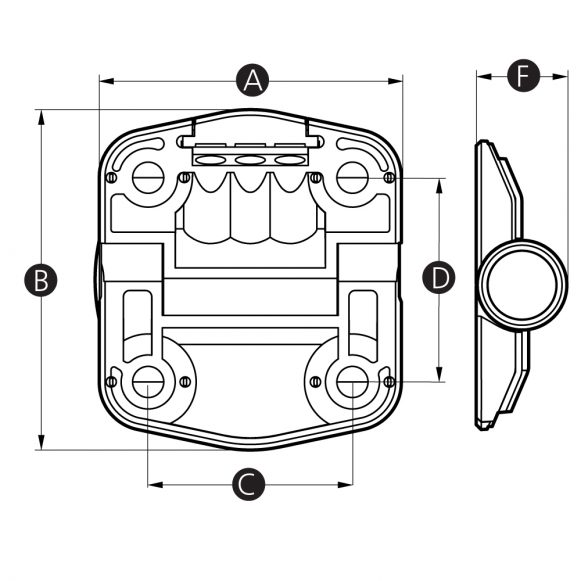

Part No. | A | B | C | D | F | Hole Size (mm) | Detent | Detent Angle (deg) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15788S | 51 | 57 | 34 | 34 | 18 | 5.2 | No | - | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 4 weeks | Confirm price & availability |
15789Z | 51 | 57 | 34 | 34 | 18 | 5.2 | Yes | 0, 80 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 4 weeks | Confirm price & availability |
15790V | 51 | 57 | 34 | 34 | 18 | 5.2 | Yes | 0, 115 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 4 weeks | Confirm price & availability |
15791R | 51 | 57 | 34 | 34 | 18 | 5.2 | Yes | 0, 150 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 4 weeks | Confirm price & availability |

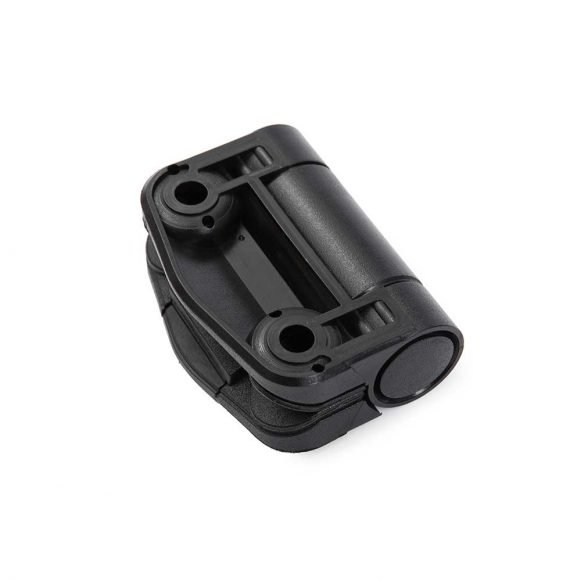

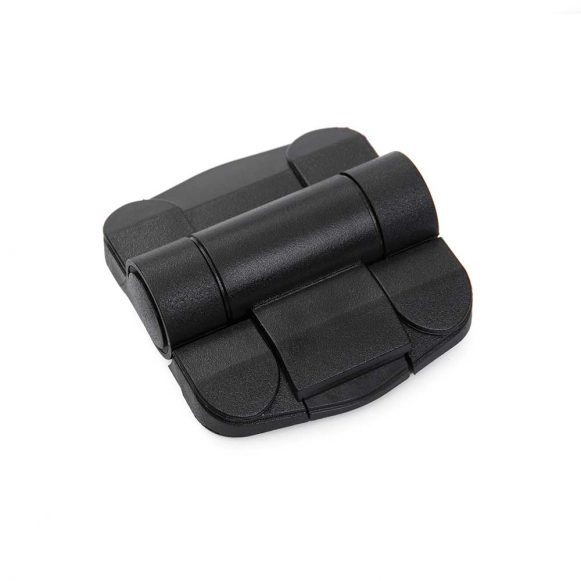

Detent Plastic Hinge with Caps
Description

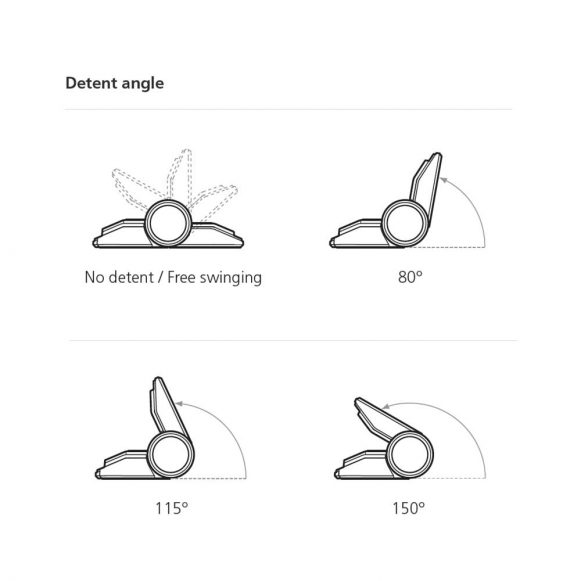

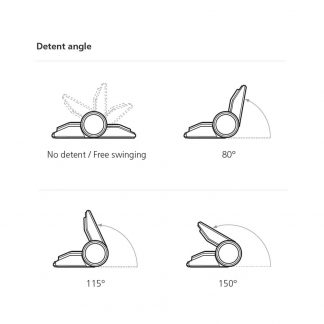

Our Model 14 HI are lightweight and strong, high impact resistant thermoplastic hinges. We supply four variations of this hinge; a traditional free-swinging hinge or three detent hinges which hold doors and panels open at a predetermined angle (0°, 80°, 115° or 150°).

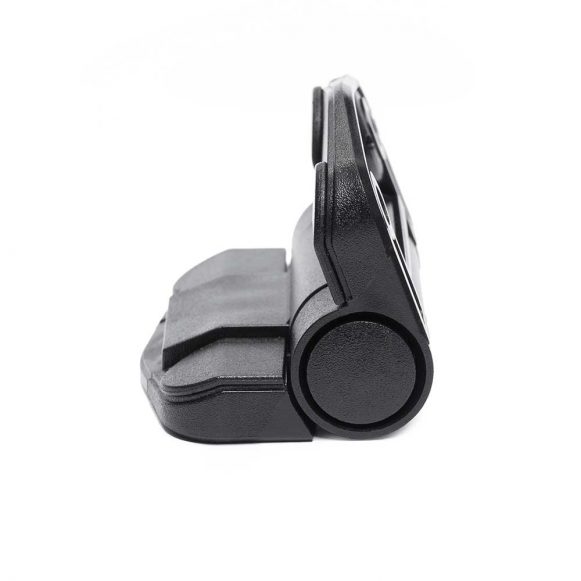

Detent hinges are designed to give hands-free access to the interior of enclosures and cabinets. The hinge ensures a door remains in a fixed, open position, without the need for secondary mechanical support such as a gas strut. This reduces the total number of components required and prevents additional hardware from taking up space inside the enclosure or cabinet.

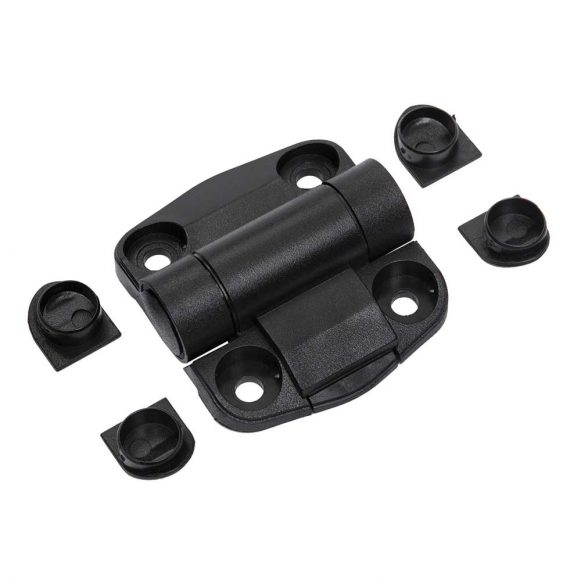

We include four snap-on caps which hide and protect the mounting hardware.
Material
High impact resistant thermoplastic
Finish
Matt
Colour
Black
Download datasheetThis product complies with:
