Model 07 HI

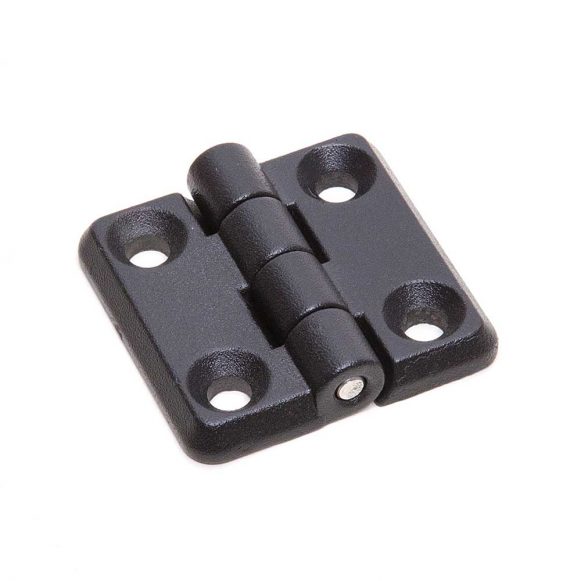

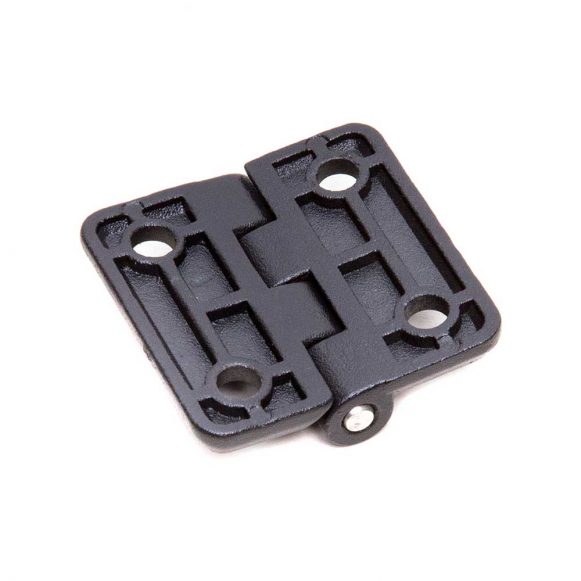

Die Cast Zinc Hinge with Stainless Steel Pin

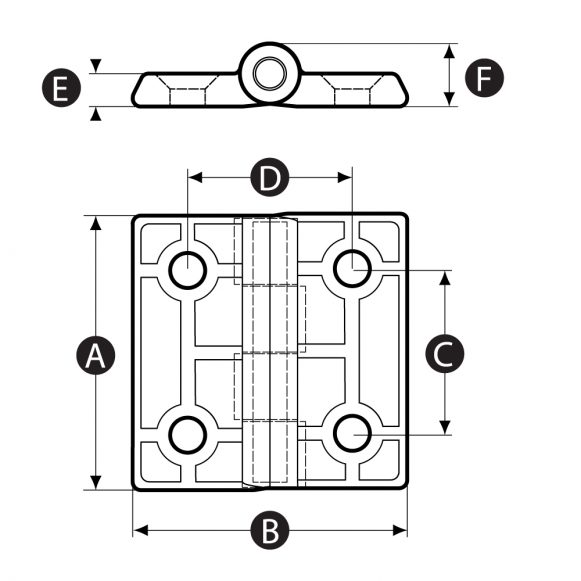

Metal cabinet and enclosure hinge - technical drawing

Description

Die cast zinc hinge leafs, either a 304 stainless steel or nickel plated steel pin, and a tough black powder coated finish ensure our Model 07 HI hinges are suitable for a wide range of demanding hinge applications.

These are strong, durable and have an attractive, compact appearance. The distance between mounting holes makes them particularly suited to attaching doors and panels on 25mm and 30mm aluminium profile extrusions.

Material

Powder coated zinc

Pin material

Stainless steel 304 or Nickel plated steel

Colour

Black

Download datasheet

This product complies with:

RoHS REACH Conflict Minerals California Prop 65

Variations
Frequently asked questions

Part No.	A	B	C	D	E	F	Hole Size (mm)	Pin material	Download CAD	Stocked status	M.O.Q.	Typical lead time	Price & availability
15765W	40	40	25	25	5	10	5.2	SS304	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & availability
15750Q	50	50	30	30	6	12	6.4	Nickel plated steel	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & availability
