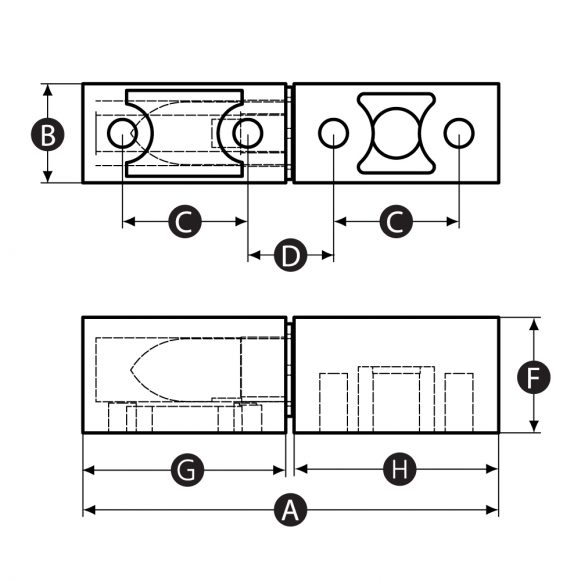

Part No. | A | B | C | D | F | G | H | Thread Size | Min Thread Depth | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15766S | 63 | 15 | 19 | 13 | 17.5 | 30.75 | 31.25 | M5 | 4.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

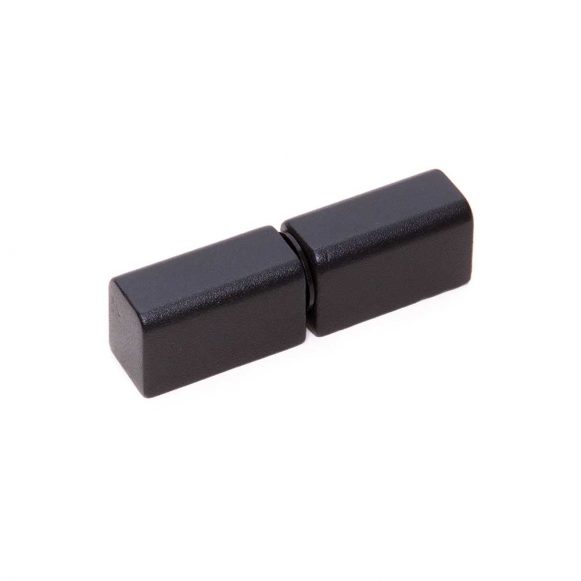

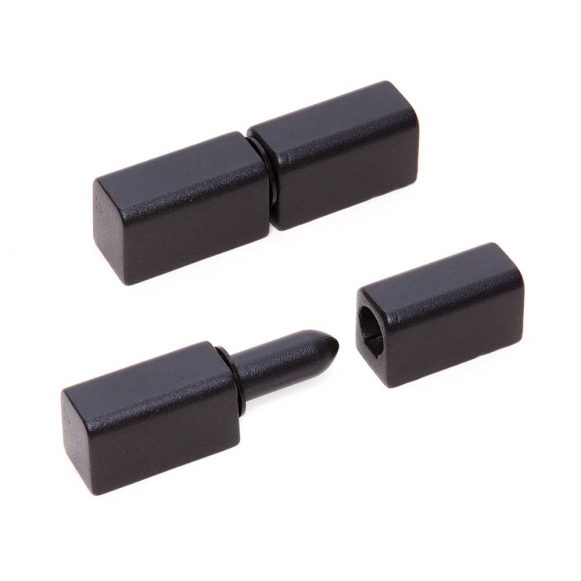

Die-cast zinc In-line Detachable Lift-off Hinge
Description
Our Model 10 HI die cast zinc removable inline lift-off hinges have been specifically designed for mounting doors, panels and safety guards on a wide range of modern industrial cabinets and enclosures. These inline hinges are commonly installed on IT and telecoms equipment, HVAC components, manufacturing machinery and various processing and packaging equipment.

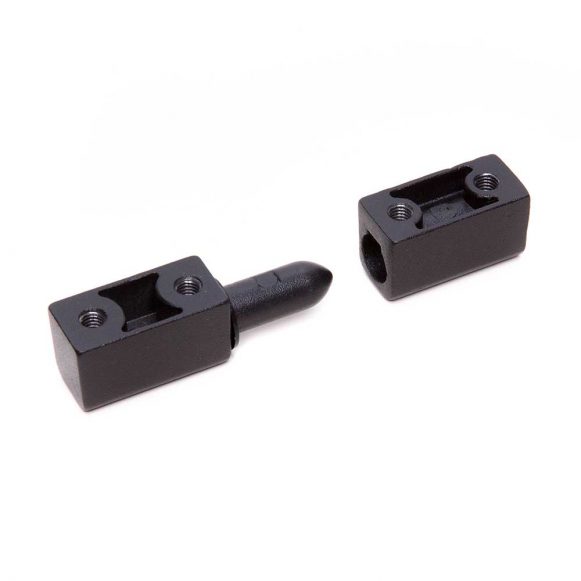

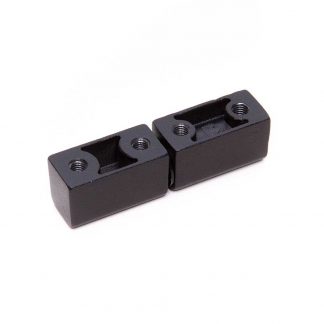

Our black, powder coated zinc inline lift-off hinges benefit from a strong construction and concealed threads for a secure installation.

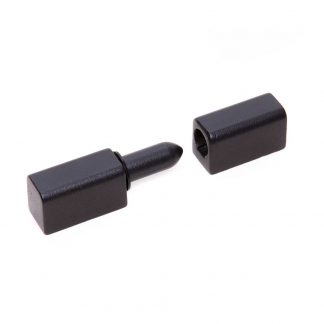

These hinges can be installed with matching orientation to allow doors or panels to be removed for improved access. Likewise, they can be installed with opposing orientation for non-removable doors or panels.
We also offer inline and offset removable hinges in thermoplastic and offset removable hinges in die cast zinc.
Material
Die cast zinc
Finish
Powder coated
Colour
Black
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
