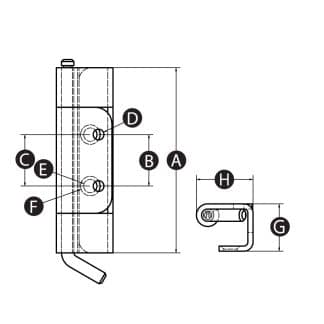

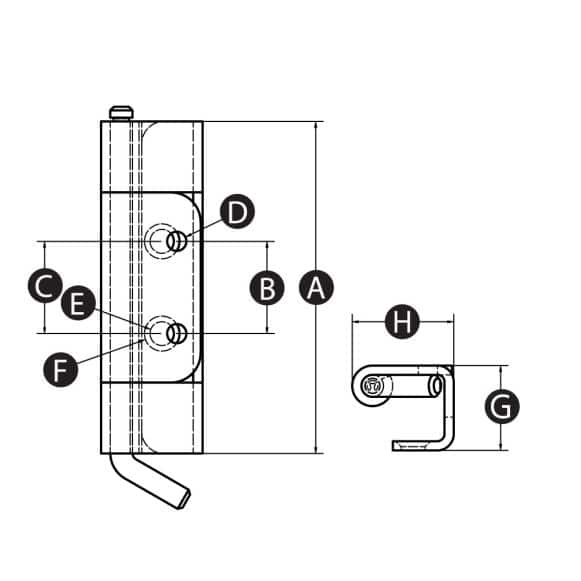

Part No. | A | B | C | D | E | F | G | H | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16882Y | 90 | 25 | 25 | 5.2 | 6.5 | 9.5 | 23 | 27.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
16883U | 90 | 25 | 25 | 5.2 | 5.2 | - | 23 | 33.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
16884Q | 90 | 25 | 25 | 5.2 | 5.2 | - | 19 | 24 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

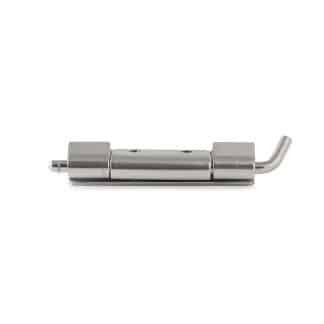

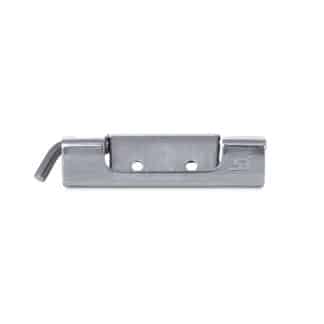

Concealed & Removable Hinge with Pin and Circlip
Description

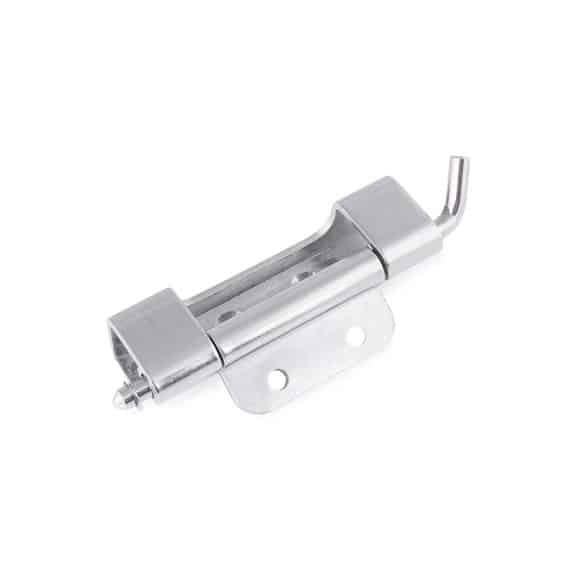

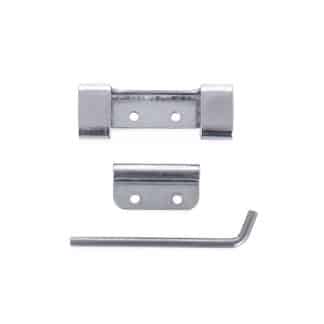

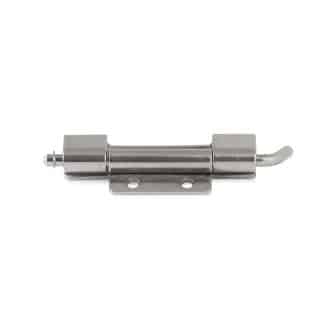

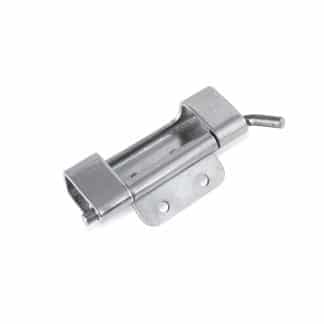

The Model 21 HI is a heavy duty all-stainless steel concealed mounting hinge with a removable pin and circlip.
Thanks to the all 304 stainless steel construction this hinge is well suited to larger, heavier doors and outdoor environments where the enclosure or cabinet may be exposed to water and weather.

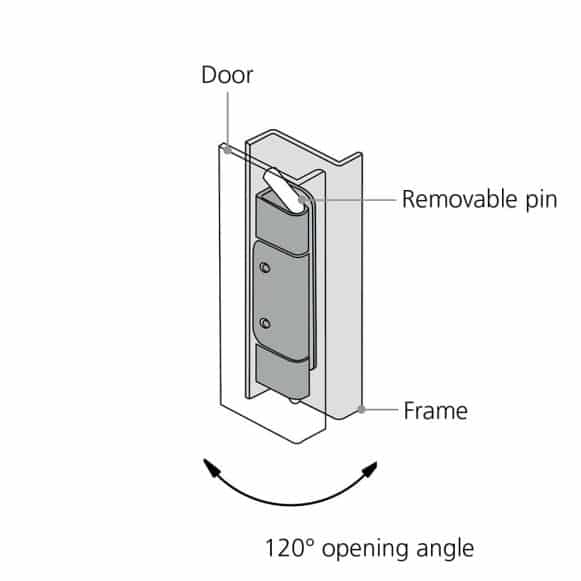

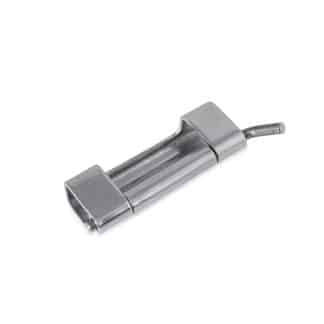

A large 120 degree opening angle allows for ample access to the cabinet or enclosure.
Material
304 stainless steel hinge, mating part pin and circlip.
Installation
Mounting to enclosure frame is either via metric bolts or rivets.
Function
A removeable pin allows the door to be separated from the enclosure giving improved access. The pin is secured with a circlip.
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65Related products
-
Model 12 HI
Die-cast Zinc Adjustable In-line Detachable Lift-off Hinge
-
Model 10 HI
Die-cast zinc In-line Detachable Lift-off Hinge
-
Model 15 HI
Plastic Hinge for Aluminium Extrusions
NEW -
Model 16 HI
Stainless Steel or Steel Concealed Removable Enclosure Hinge
