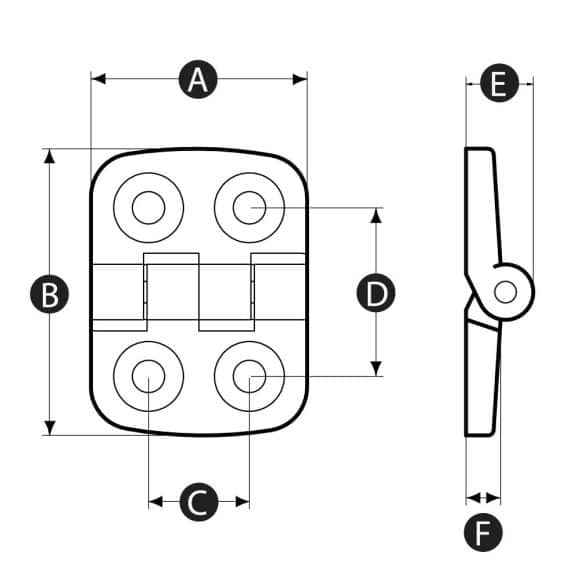

| Part No. | A | B | C | D | E | F | Hole size | Download CAD | Stocked | M.O.Q. | Lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9389Y | 30 | 39 | 14 | 23 | 9 | 5 | 4.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

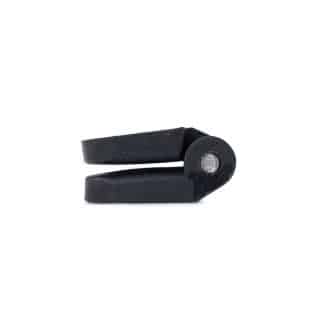

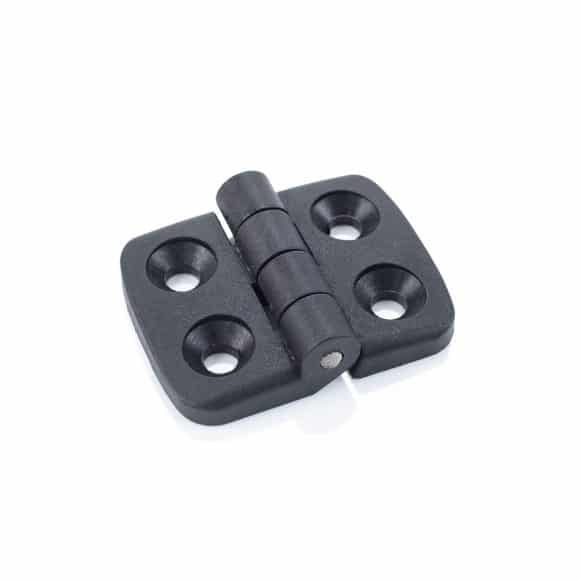

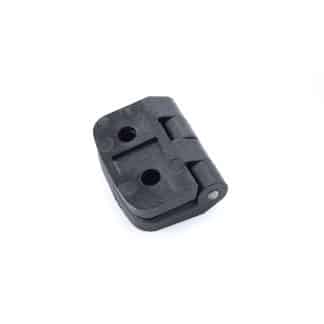

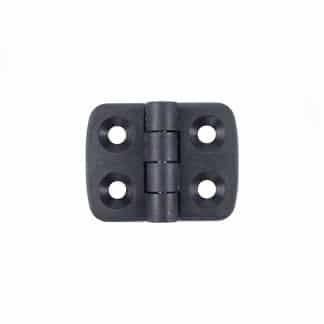

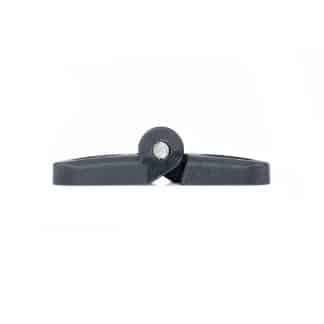

Plastic Hinge for Aluminium Extrusions
Description
Our Model 15 HI is a compact and strong thermoplastic hinge designed for mounting on 20mm aluminium extrusions.
It is equally suitable for use on panels, cabinets and enclosures.
Material
High impact resistant thermoplastic
Finish
Matt
Colour
Black
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65Related products
-
