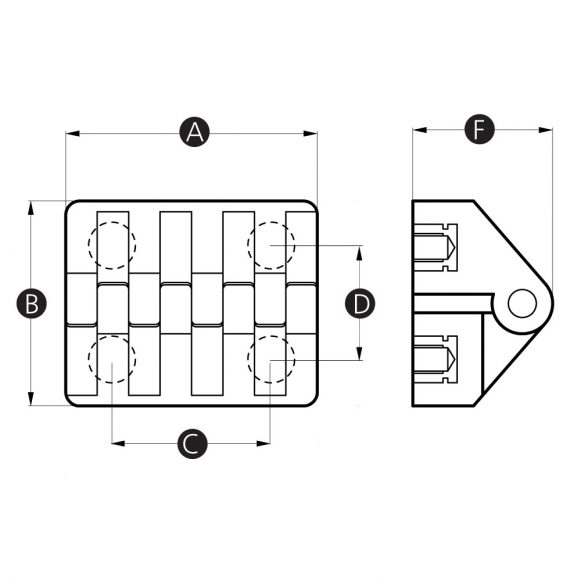

Part No. | A | B | C | D | F | Thread Size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
---|---|---|---|---|---|---|---|---|---|---|---|
14277X | 30 | 35 | 15 | 18 | 25 | M5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
14278T | 54 | 44 | 30 | 23 | 29 | M6 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

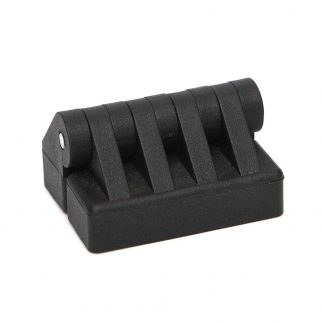

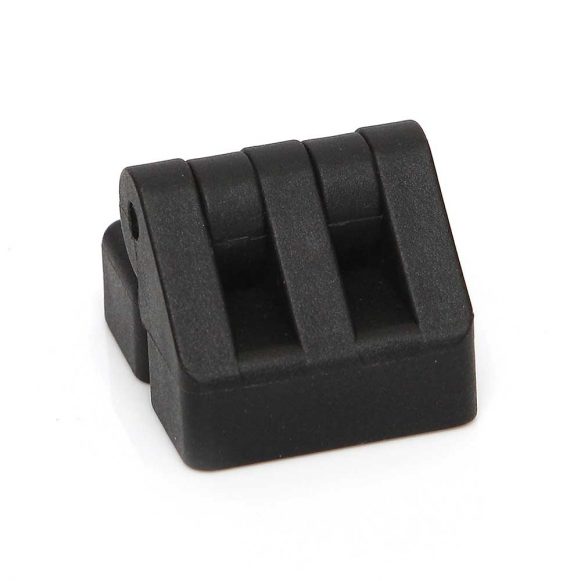

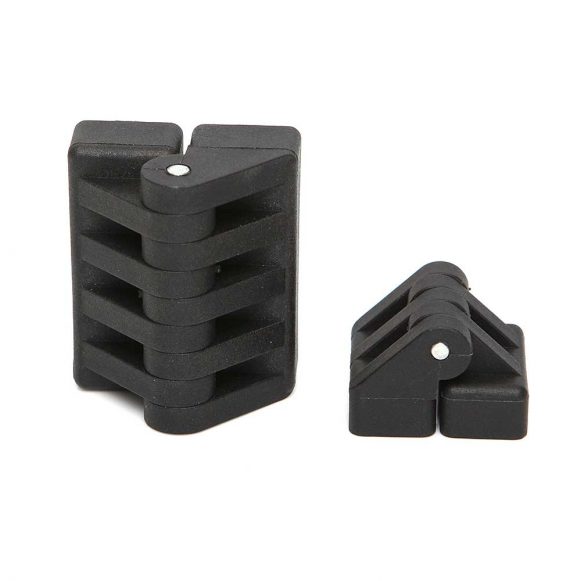

Plastic Hinge with Threaded Inserts
Description
Thanks to a high impact resistant thermoplastic body, zinc plated steel pin and machined, female threaded brass inserts, our Model 02 HI plastic hinge is low weight while remaining strong and durable.
This hinge features threaded inserts for fixing from below with either M5 or M6 bolts. These hinges are commonly found on doors and covers on enclosures and electrical cabinets in the IT and Telecommunications industries, access panels on machinery, industrial generator parts, and HVAC components.
Material
High impact resistant thermoplastic
Colour
Black. Other RAL colours available (MOQs apply).
Thread material
Brass
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
