Model 17 HI

Die Cast Zinc Hinge

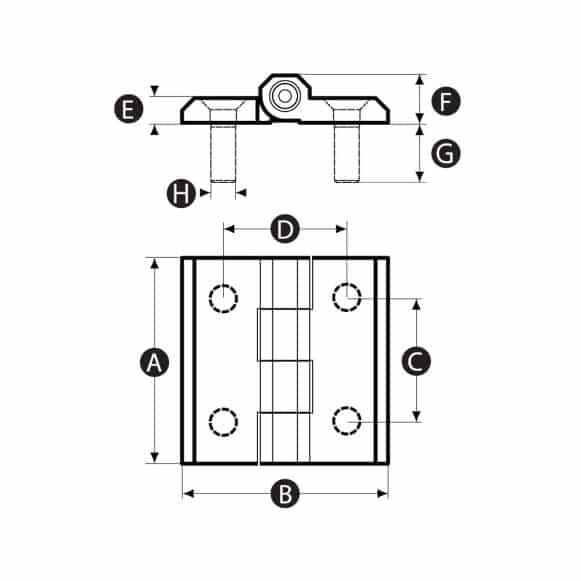

Technical drawing of surface mount hinge

Description

Our Model 17 HI is a strong and durable surface mount hinge with a modern appearance. We offer a range of sizes to suit most applications, including both open mounting for fixing from above with screws and bolts, and integral metric studs for secure, flush fitting from below.

These hinges are commonly used on a wide range of applications, from industrial and commercial furniture to vehicle storage, enclosures, electrical cabinets and much more.

The powder coated black finish gives a high quality look and feel while ensuring a long service life and resistance to knocks and scratches.

Material

Powder coated zinc body and nickel plated steel pin

Finish

Matt

Colour

Black

Options

Available with or without fixed threaded studs

Download datasheet

This product complies with:

RoHS REACH Conflict Minerals California Prop 65

Variations
Frequently asked questions

Part No.	A	B	C	D	E	F	G	H	Bore size	With threaded studs	CAD Download	Stocked	M.O.Q.	Lead time	Price & availability
16662Y	60	60	36	36	8	15	-	-	8.4	No	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & availability
16663U	50	50	-	-	6	11.5	14.5	6	-	Yes	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & availability
16664Q	50	76	30	56	6	11.5	-	-	6.3	No	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & availability
16665X	60	120	38	88	8	15	-	-	6.8	No	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & availability
